EINSTAR VEGA-Wireless All-In-One 3D Scanner
Tax excluded. Shipping policy.
Unleash Your 3D Vision

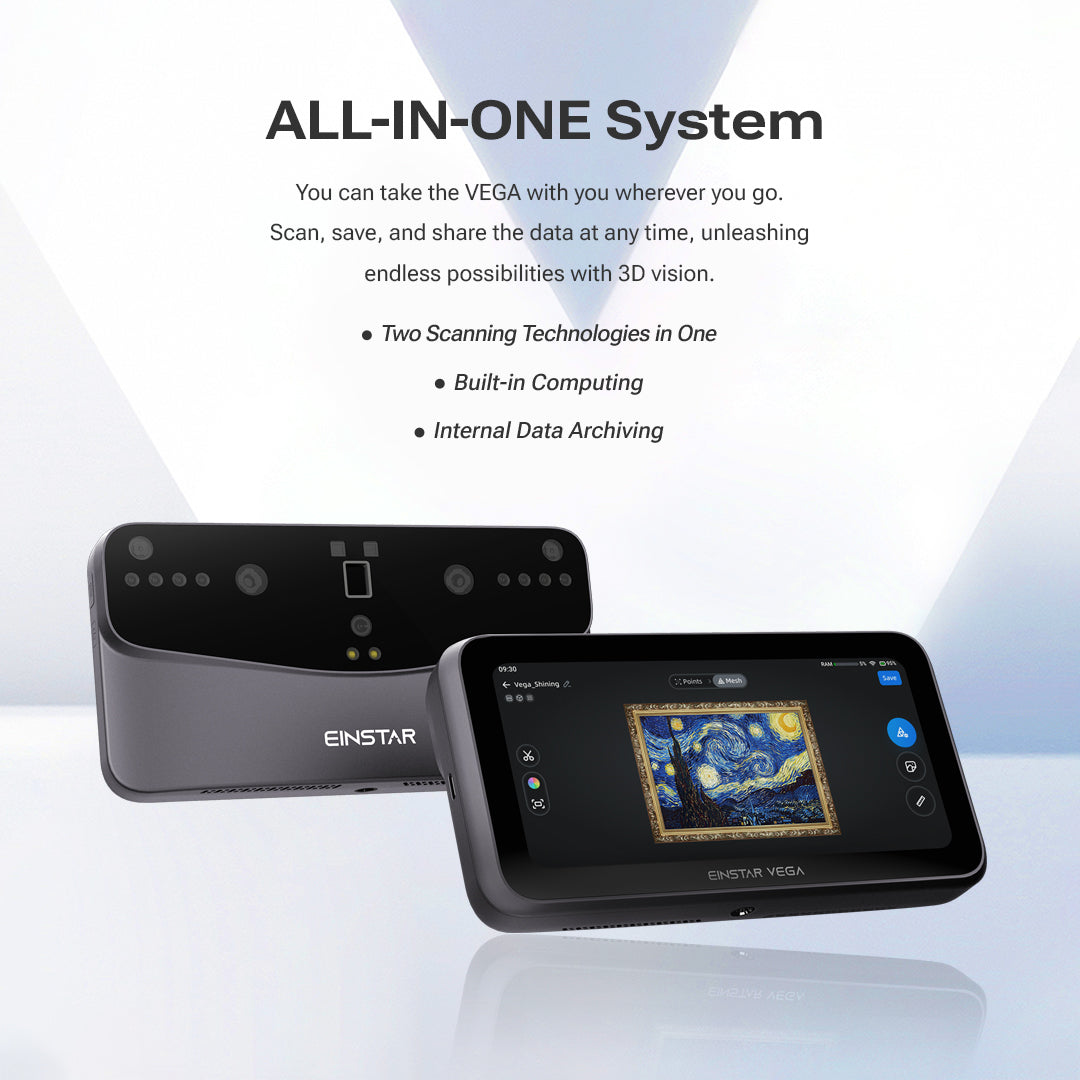

ALL-IN-ONE System
- Two Scanning Technologies in One
- Built-in Computing
- Internal Data Archiving

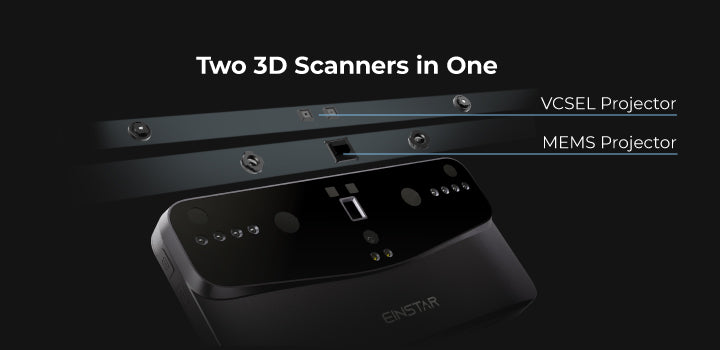

Two 3D Scanners in One
- VCSEL For Long Range Scanning
Smooth Scanning under Unlimited Environment
- MEMS For Short Range Scanning
Stable Scanning for High-Detail Data
Beginner-Ready Design
Pick Up and Scan
- Ergonomic Design
- One-Click Start
- One-Click Processing
Wireless Solution
- Wireless Scanning -- Without Connecting to PC
- Wireless Transfer -- Data Sharing to SHINING 3D Cloud

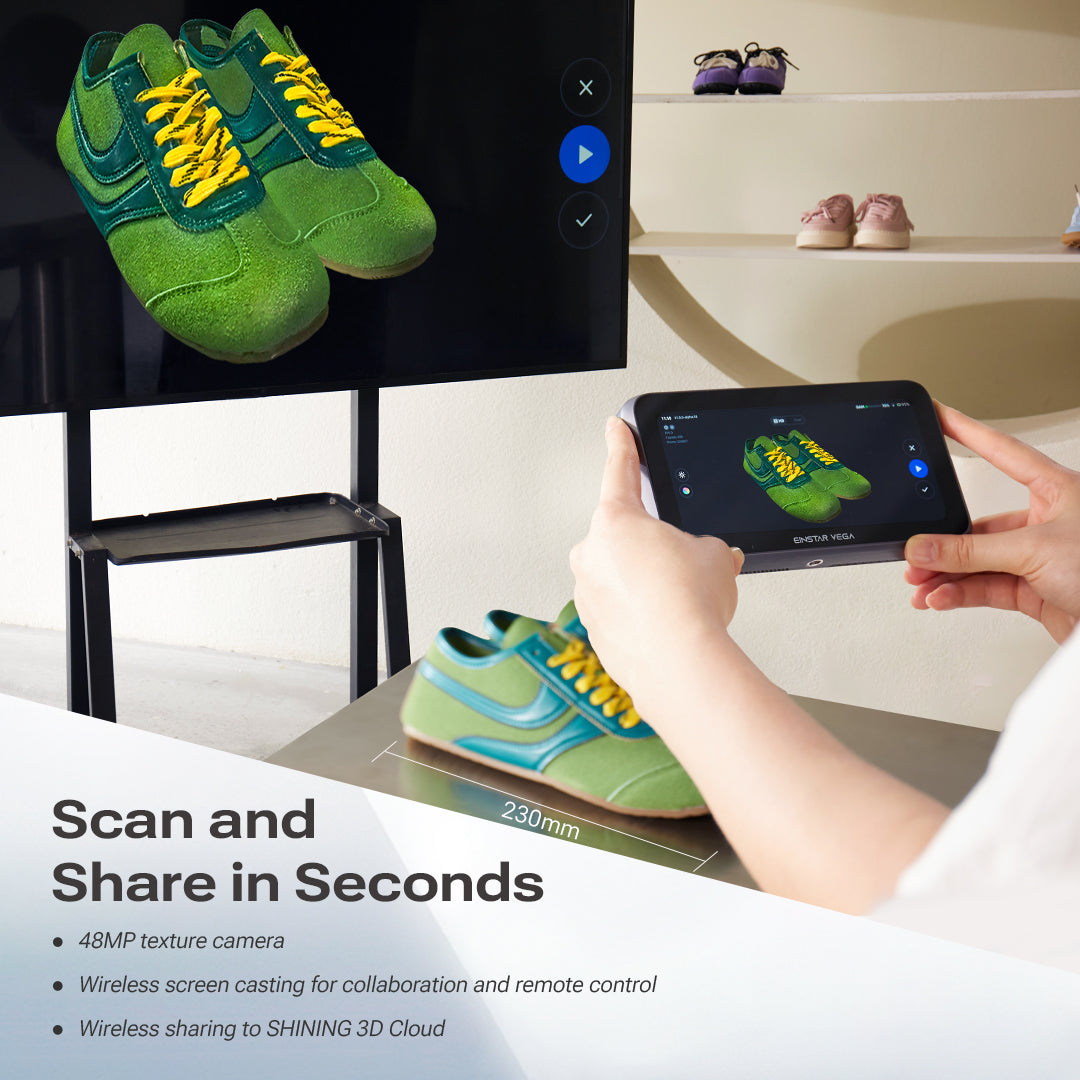

- Wireless Screen Casting -- Display on a Second Screen

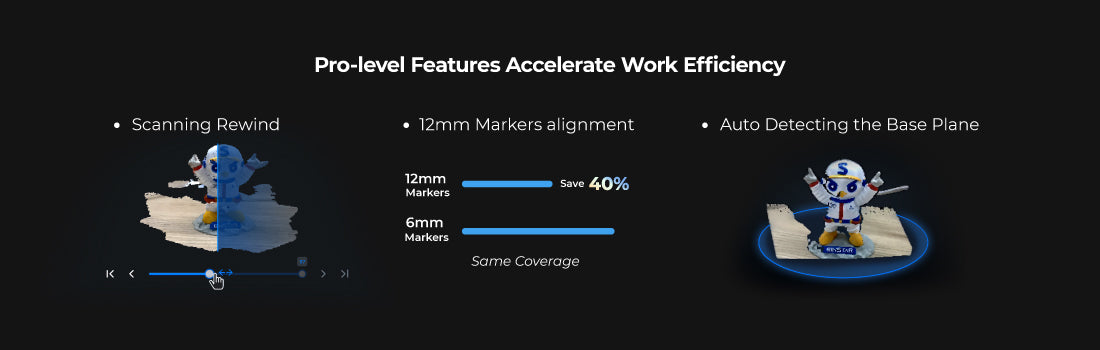

Pioneering Software Features

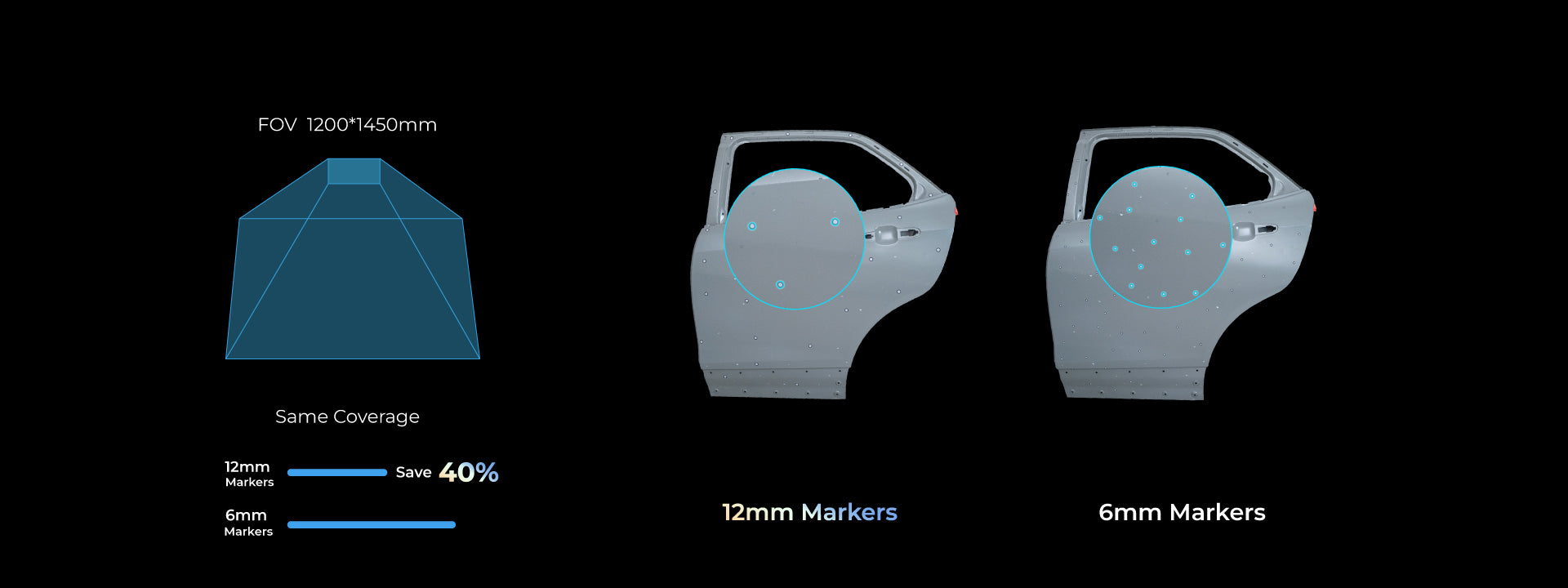

- 12mm Markers Alignment in Fast Mode--Minimize Markers Numbers When Scanning Super Large Objects

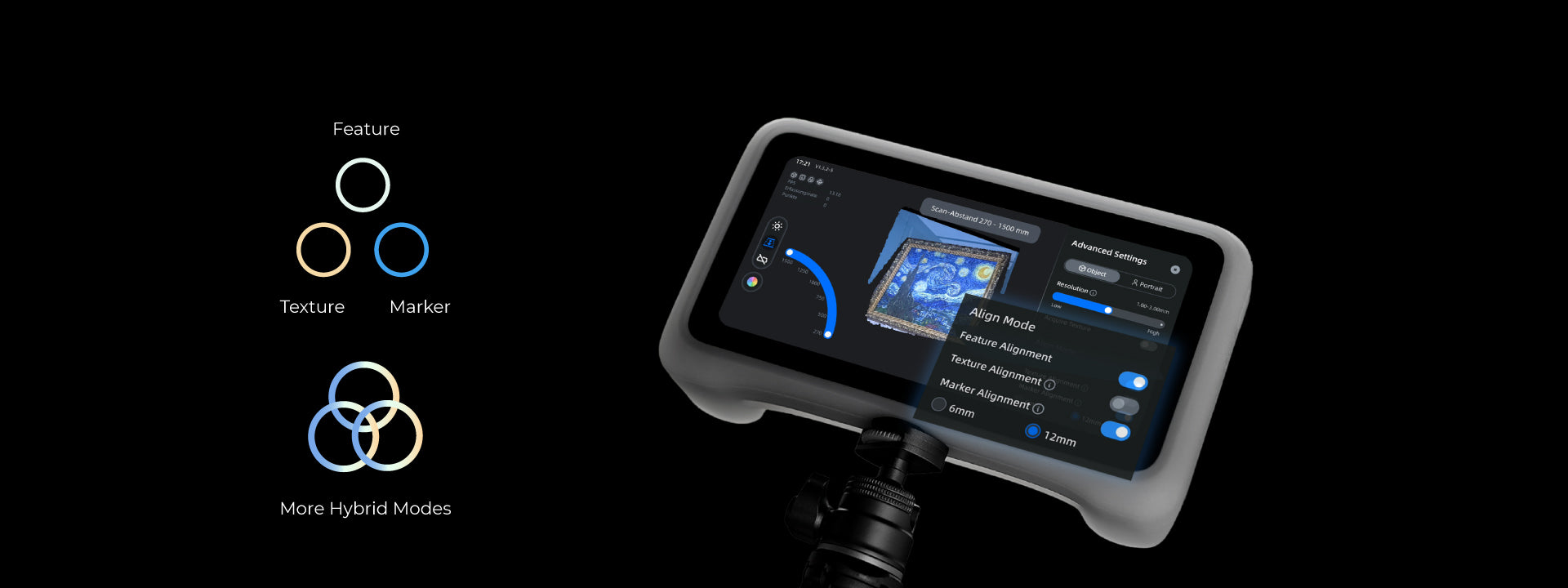

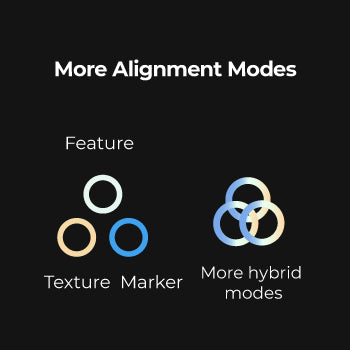

- Hybrid alignment--Enhance Tracking Stability and Efficiency

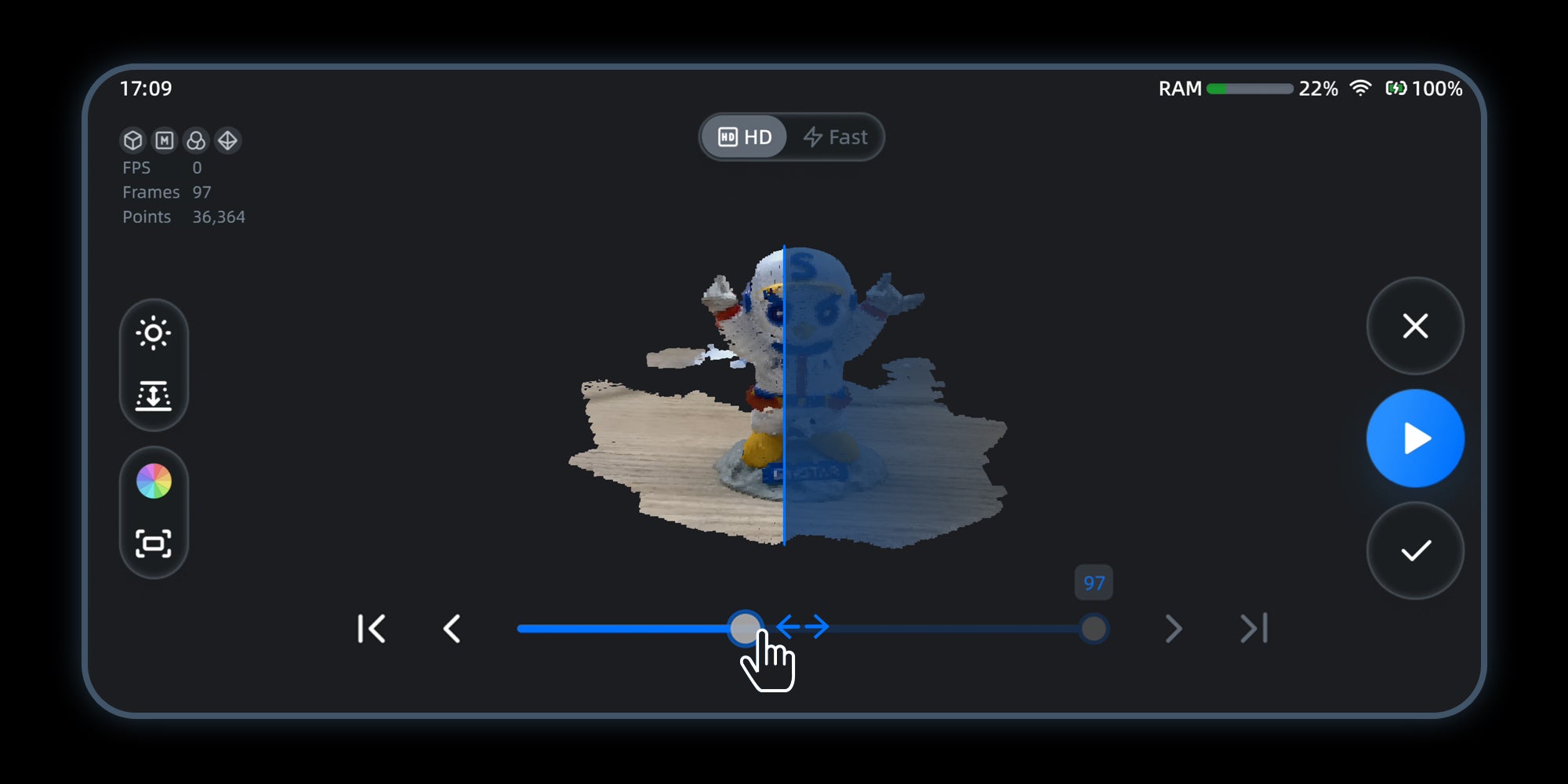

- Scanning Rewind--Support to Correct Data Alignment Error during Scanning Process

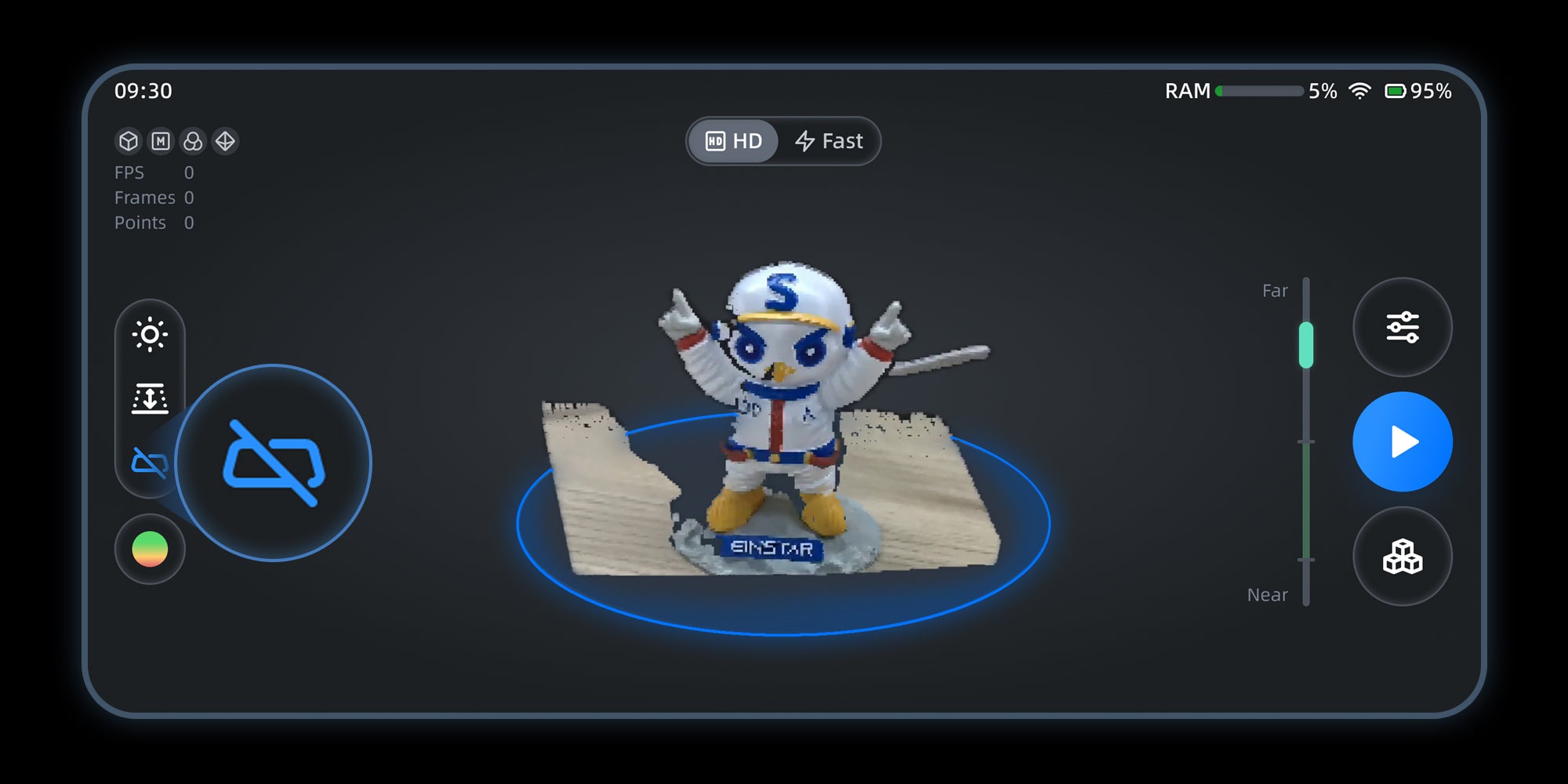

- Auto Detecting the Base Plane
- Coordinate System Adjustment
- Model Measurement

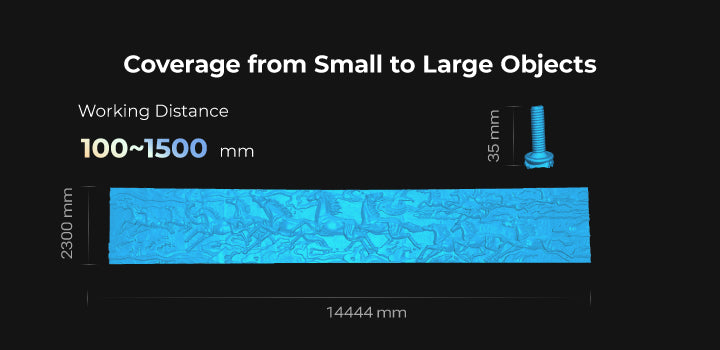

Comprehensive Object Scanning

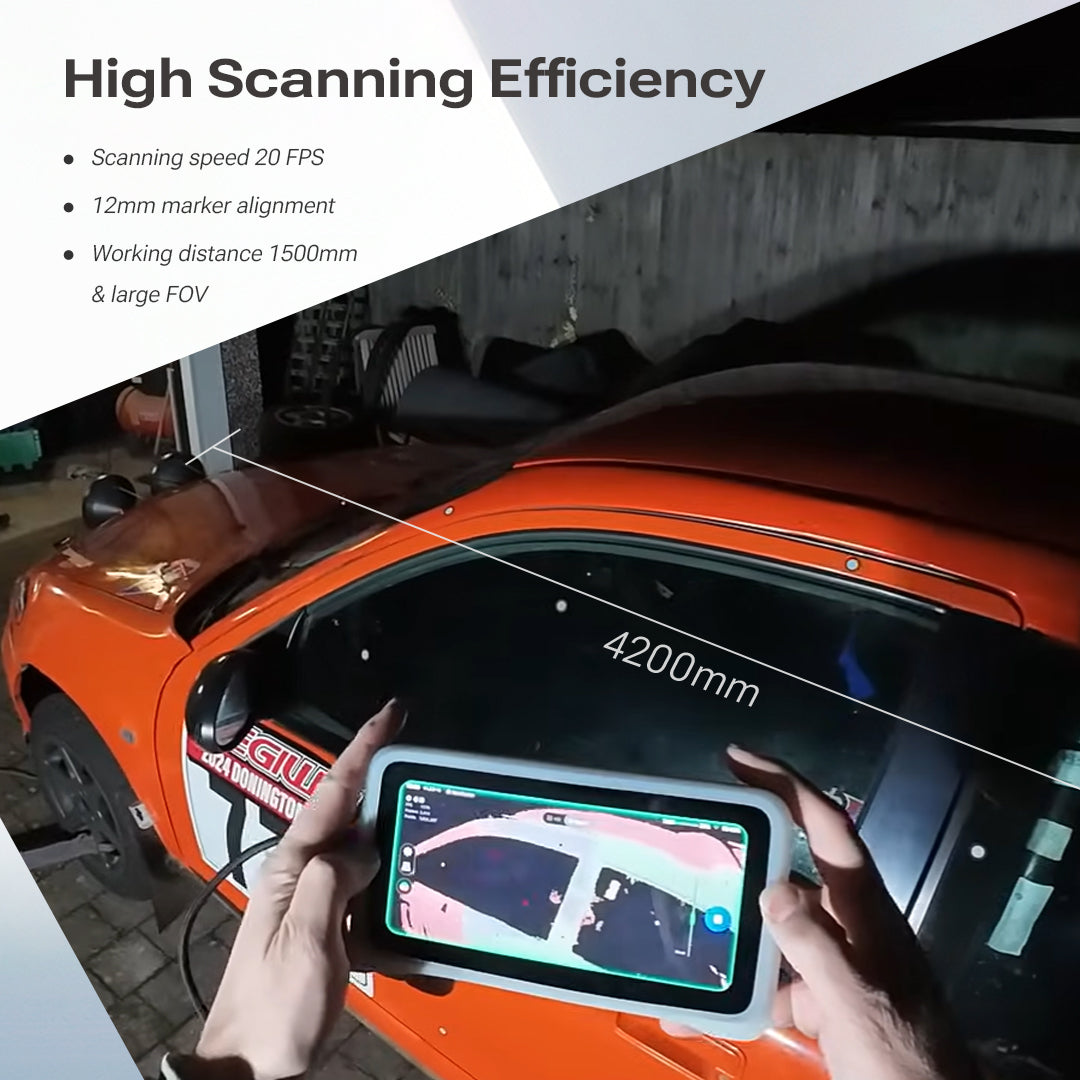

Fast Mode
- For medium to large size objects
- Working Distance 270～1500mm for medium to large objects
- Scanning Speed Up to 20fps
Comprehensive Object Scanning

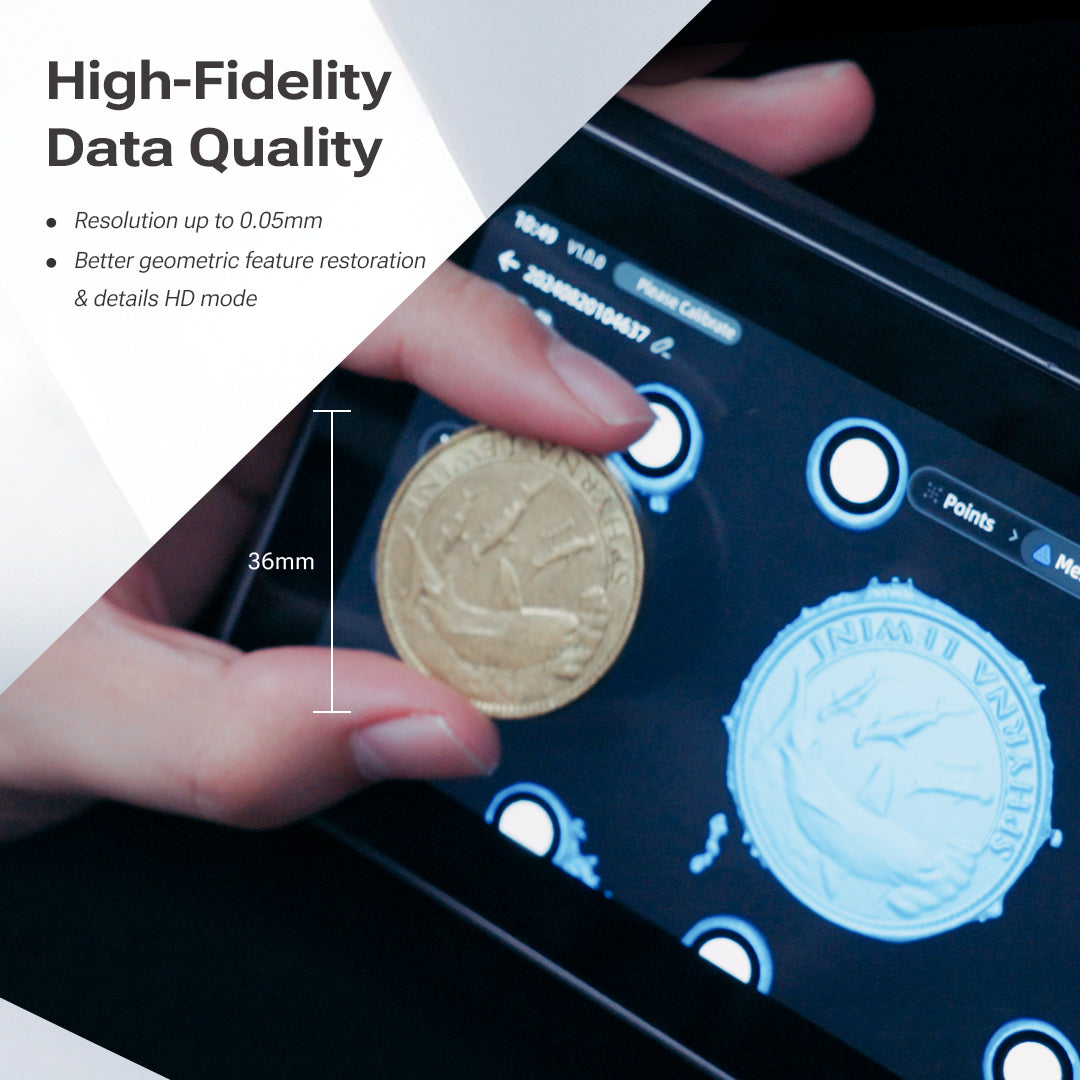

HD Mode
- For small to medium size objects
- Working Distance 100～350mm for small objects
- Scanning Speed Up to 15fps

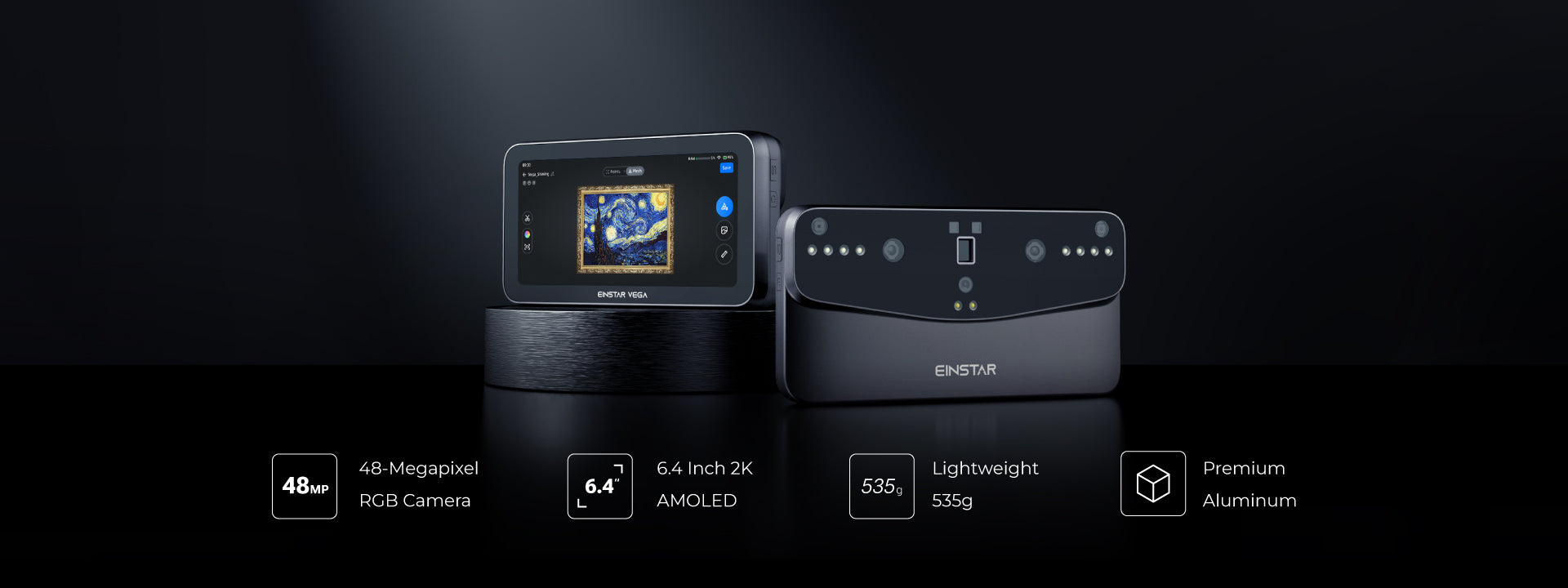

Powerful Hardware
- 6.4 Inch 2K AMOLED
- 32 RAM
- 32GB eMMC + 512GB SSD
- 48MP RGB Texture Camera
- Lightweight 535g
- Continuous Operation During Charging
PC Software Starvision
Compatible with Windows and Mac OS

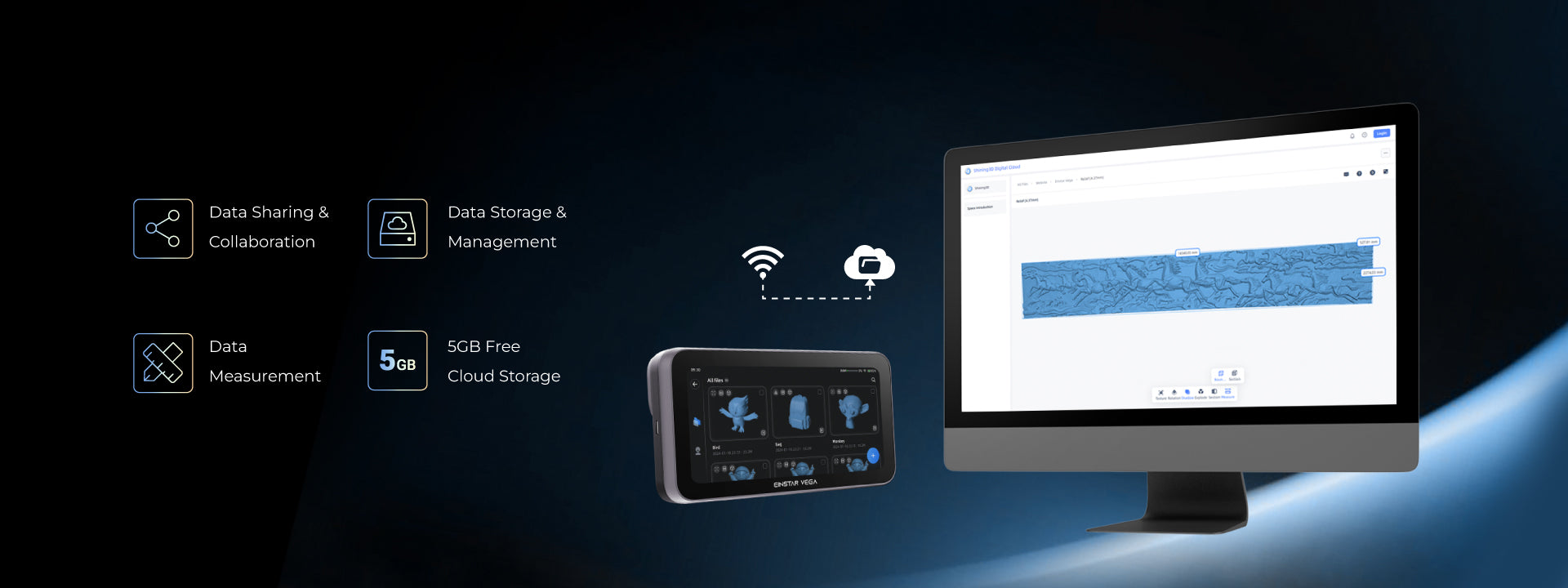

SHINING 3D Cloud
- Data Sharing and Collaboration
- Data Storage and Management
- Data Measurement
- Free 5GB space to each SHINING 3D user

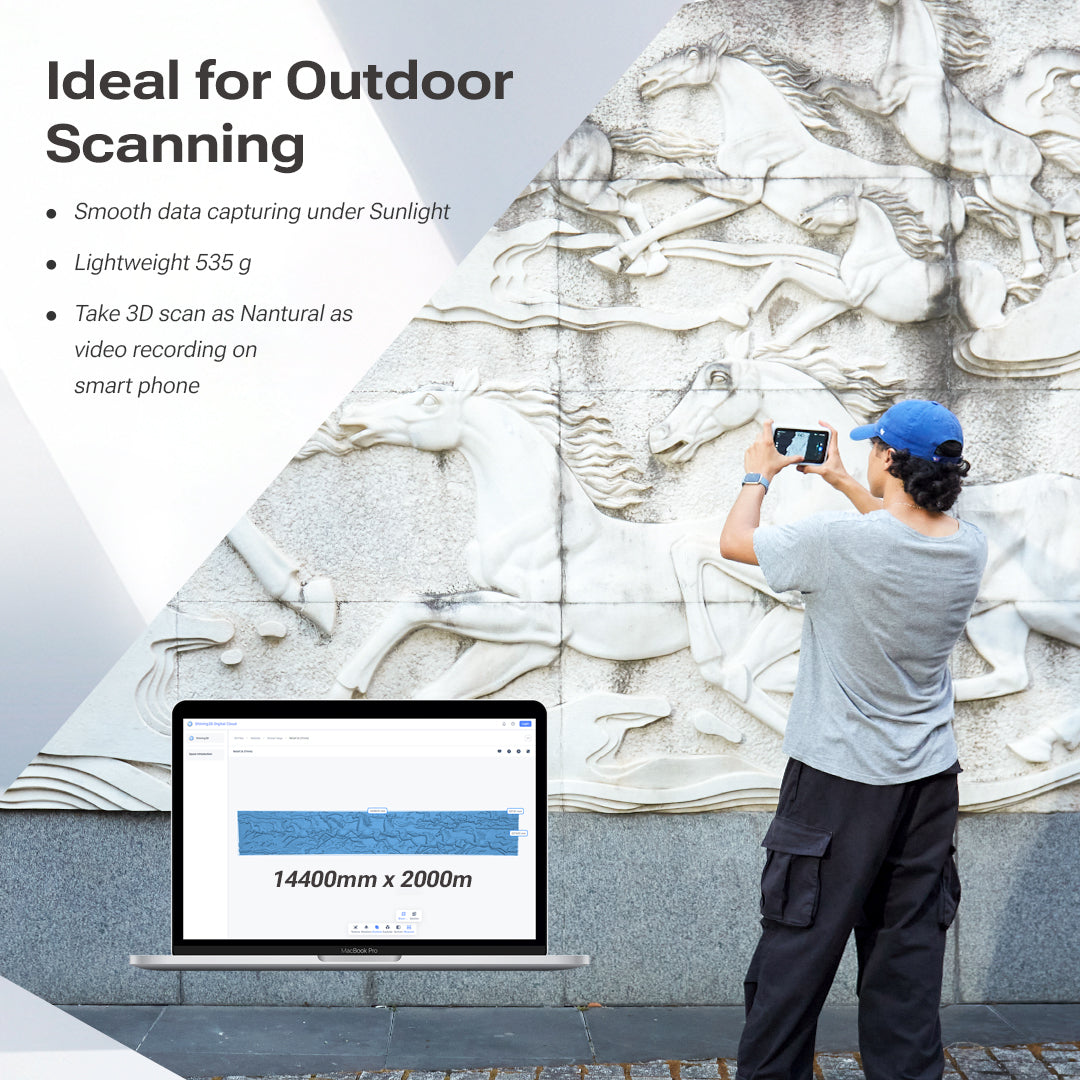

Reliable Scanning Outdoor and Indoor
- Outdoor Scanning under Sunshine

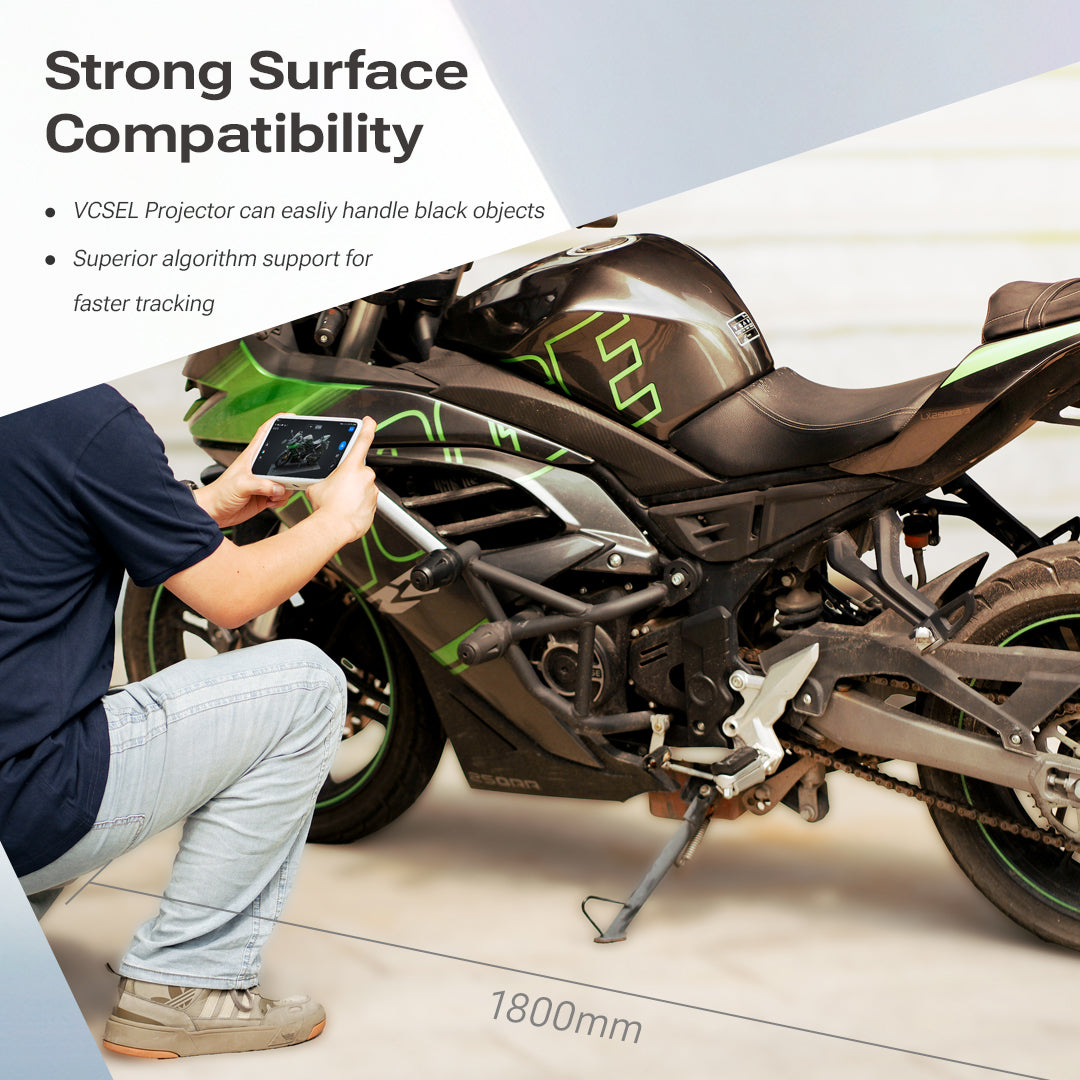

- Ideal for Dark Surfaces
Smooth Scanning at Any Time
Scan at Night Without Limitation
EINSTAR VEGA Specification
HD Mode
Fast Mode
HD Mode: Infrared MEMS
Fast Mode: Infrared VCSEL

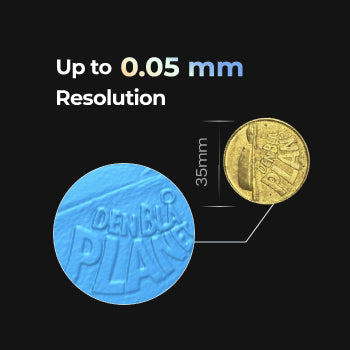

HD Mode: 0.05mm～3mm
Fast Mode: 0.5mm~10mm
HD Mode: up to 15 fps
Fast Mode: up to 20fps
HD Mode: 100-350mm
Fast Mode: 270-1500mm
HD Mode: 2MP
Fast Mode: 1.3MP
Feature; Texture; Markers; Hybrid
48 MP
ply; stl; obj; asc
Yes
Limited edition : 643g;
Regular edition : 535g
180mm*95mm*26.5mm
(L*W*H)
8-core CPU, 2.4GHz
32 GB LPDDR4 Memory
32GB eMMC + 512GB SSD
65W fast charging, supports PD/PPS protocols
Wi-Fi 6, USB Type C
6.4'' 2K OLED
10
6 DoF
-10~40℃
0 to 90% RH (non-condensing)
380*305*155mm
IP50
Built-in 5000mAh；
External power bank charging supported
No computer required for 3d scanning operation;
StarVision（Data processing program on PC）：Windows10/11(64-bit); macOS
Recommended PC configuration: Intel i7, 32 GB RAM; macOS 11.0 ( on Apple chip )
3D Data Gallery
FAQ
Don't I need any PC to connect?
You can perform post-processing directly on the Vega. However, for more detailed processing, you might need to use a computer.
How long does it work by its battery?
The continuous working time is 1.5-2 hours. You can also connect it to a power bank for extended use.
What is the working ambient temperature range?
The working temperature range is -10°C to 40°C.
