Front and back view of the EINSTAR VEGA handheld 3D scanner, showing the scanning sensor side and the display interface side, highlighting the device's sleek design for 3D scanning.

EINSTAR VEGA-Wireless All-In-One 3D Scanner

EINSTAR VEGA-Wireless All-In-One 3D Scanner

Name: EINSTAR VEGA-Wireless All-In-One 3D Scanner
Brand: SHINING 3D
SKU: EINSTARVEGATX3GLOBAL
Price: 1699.00 USD
Availability: InStock

$1,699.00 USD

$1,999.00 USD

Save $300.00

Taxes excluded. Shipping Policy. Shipping calculated at checkout. *The recipient is responsible for customs clearance, duties, and any other applicable fees.

Quantity:

Add To Cart

Buy it Now

Pay with Ease

Trusted Delivery

EINSTAR VEGA-Wireless All-In-One 3D Scanner

$1,699.00 USD

$1,999.00 USD

Take a Closer Look

Smart 3D Scanning Terminal with Mobile Computing

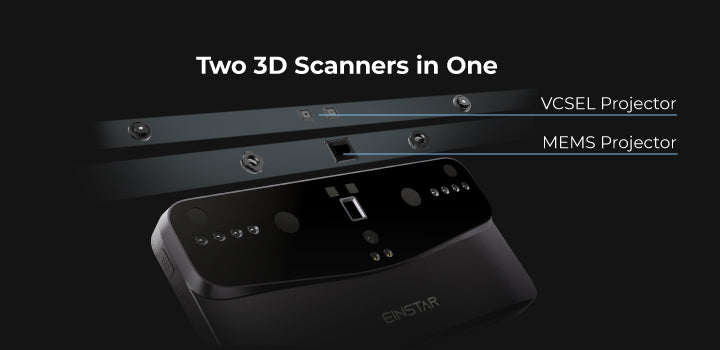

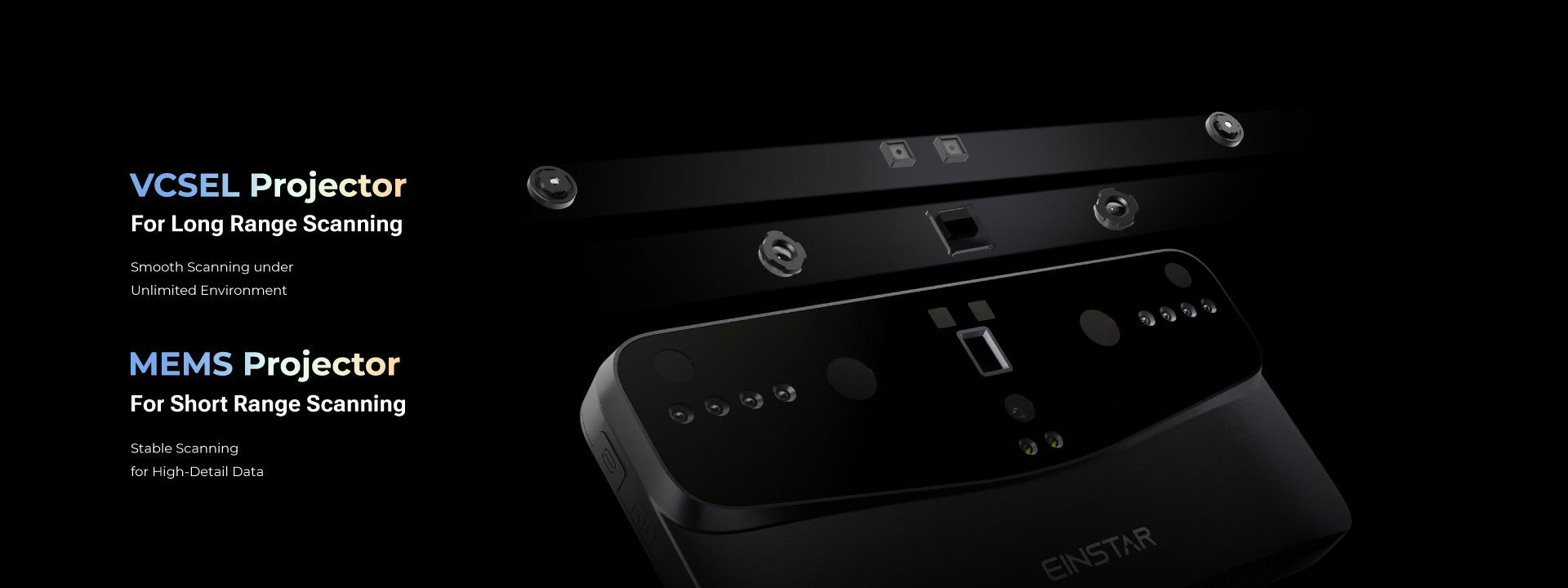

Two 3D Scanners in One

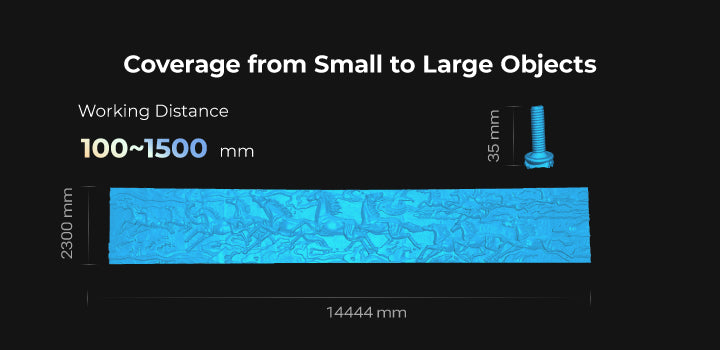

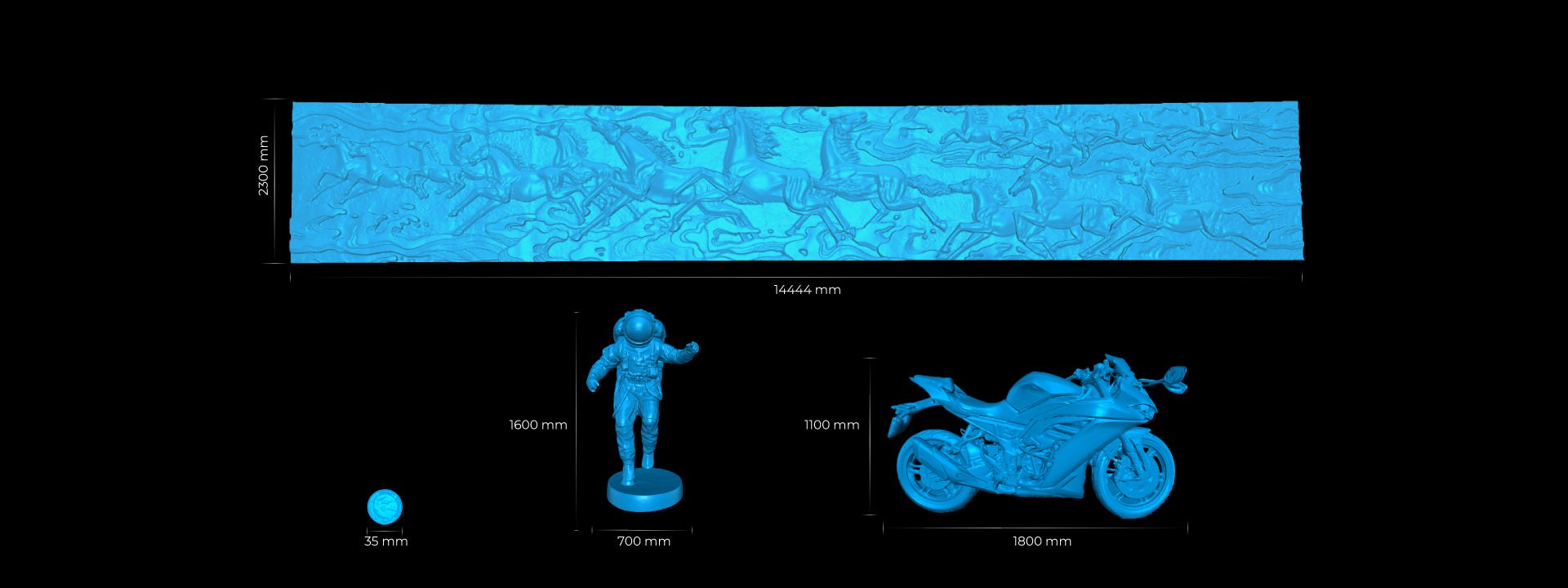

Coverage from Small to Large Objects

Strong Environment Lighting Adaptability

Wireless 3D Scanning Solution

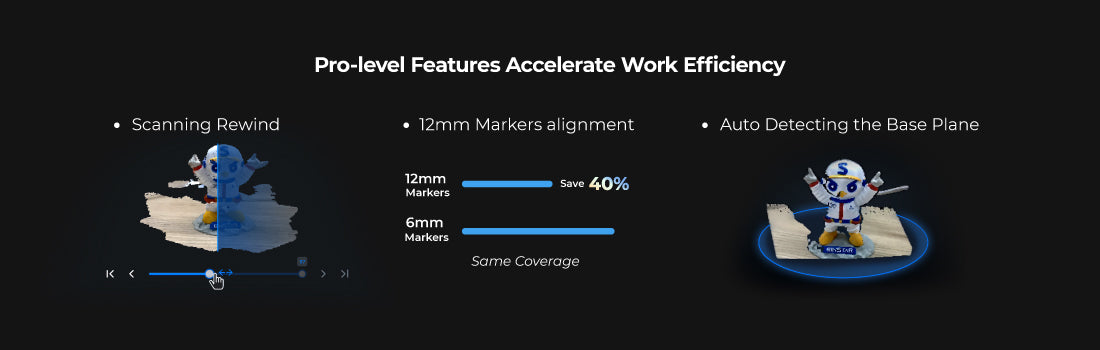

12mm Markers Alignment

Same Coverage

12mm Markers = 40% 6mm Markers

Scanning Rewind

Support to Correct Data Alignment Error during Scanning Process

Auto Detecting the Base Plane

When scanning objects placed on a base-plane, such as turntable, table, or the ground, enabling this feature will intelligently remove the detected base-plane before and during the 3D scan.

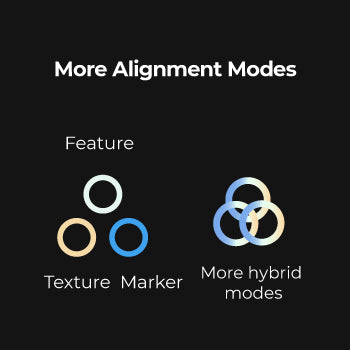

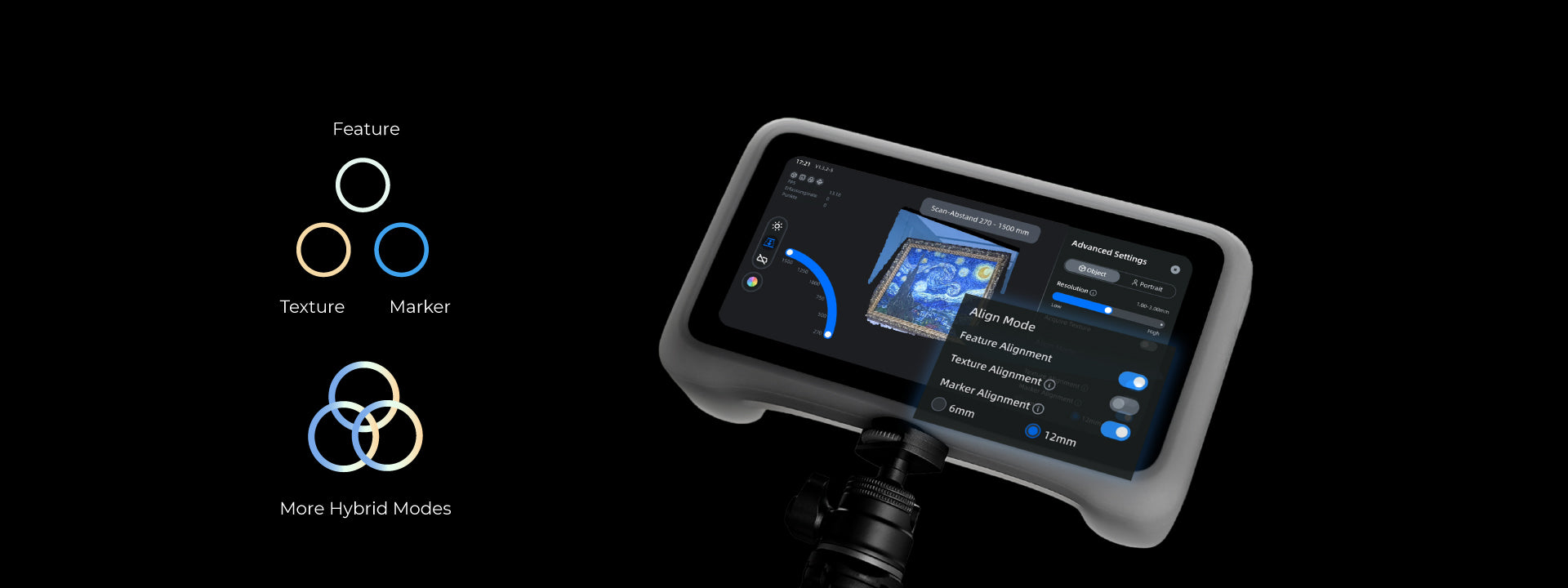

More Alignment Modes

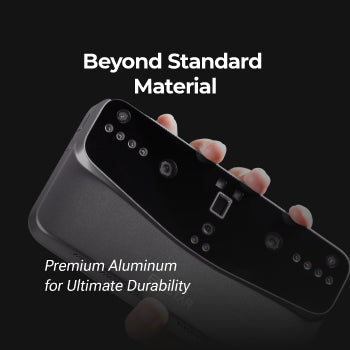

Beyond Standard Material

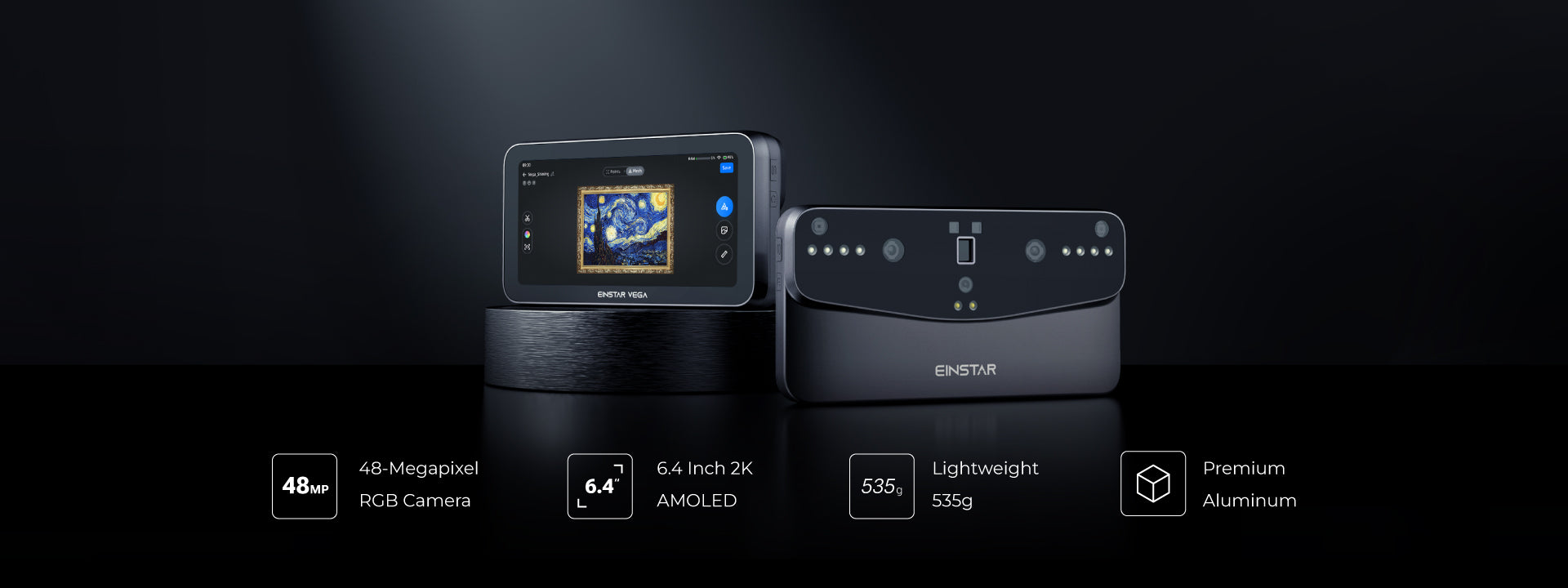

48-Megapixel RGB Camera For Lifelike Colors that Never Fade

Before

After

Best Partner for Beginners

One-Click Start

One-Click Processing

Coordinate System Adjustment

Model Measurement

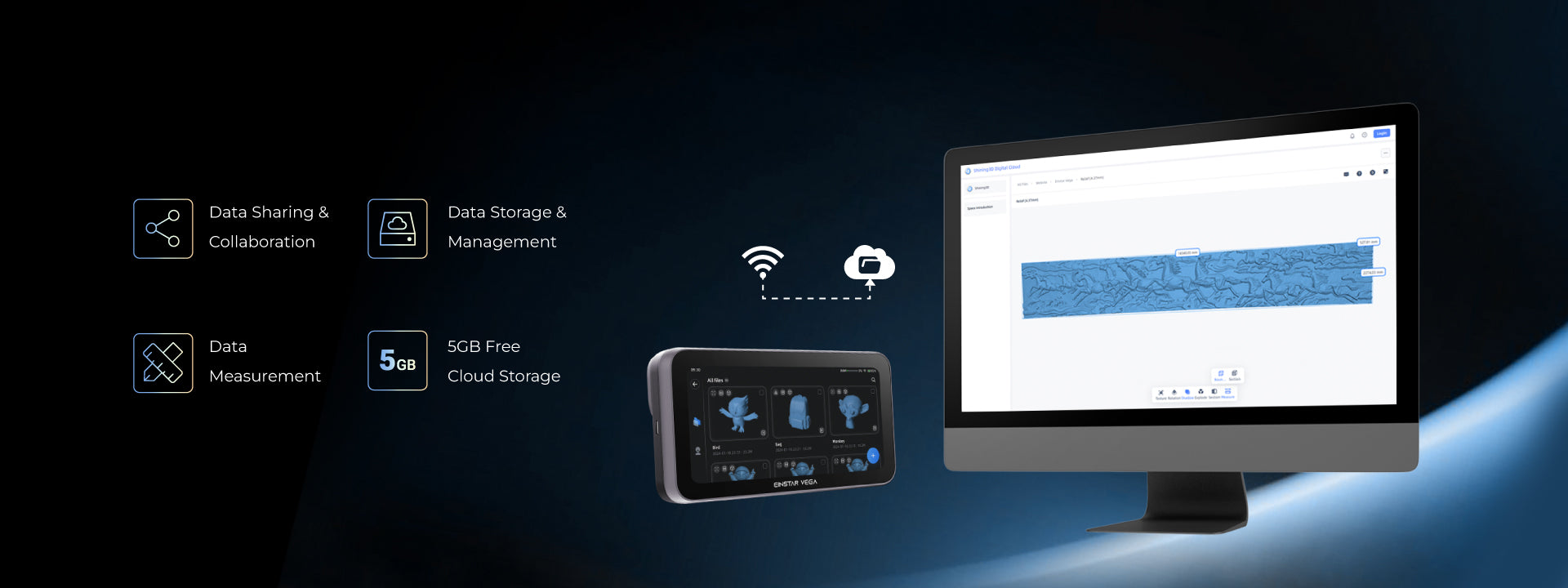

SHINING 3D Cloud

EINSTAR VEGA Specification

Scan Mode

HD Mode
Fast Mode

Light Source

HD Mode: Infrared MEMS
Fast Mode: Infrared VCSEL

Point Distance

HD Mode: 0.05mm～3mm
Fast Mode: 0.5mm~10mm

Capture Frame

HD Mode: up to 15 fps
Fast Mode: up to 20fps

Working Distance

HD Mode: 100-350mm
Fast Mode: 270-1500mm

IR Camera Resolution

HD Mode: 2MP
Fast Mode: 1.3MP

Align Mode

Feature; Texture; Markers; Hybrid

Color Camera Resolution

48 MP

Output Formats

ply; stl; obj; asc

Outdoor Scan

Yes

Scanner Body Weight

Limited edition : 643g;
Regular edition : 535g

Scanner Size

180mm*95mm*26.5mm
(L*W*H)

CPU

8-core CPU, 2.4GHz

RAM

32 GB LPDDR4 Memory

Internal Hard Drive

32GB eMMC + 512GB SSD

Power Charger

65W fast charging, supports PD/PPS protocols

Interface

Wi-Fi 6, USB Type C

Touchscreen

6.4'' 2K OLED

Supplemental Light

10

IMU

6 DoF

Operating Temperature Range

-10~40℃

Operating Humidity Range

0 to 90% RH (non-condensing)

Packing Size

380*305*155mm

Protection Grade

IP50

Battery

Built-in 5000mAh；
External power bank charging supported

Supported OS

No computer required for 3d scanning operation;

StarVision（Data processing program on PC）：Windows10/11(64-bit); macOS

Recommended PC configuration: Intel i7, 32 GB RAM; macOS 11.0 ( on Apple chip )

What‘s Accuracy？

3D Data Gallery

View all

Wukong by SHINING 3D on Sketchfab

SHINING 3D Mascot by SHINING 3D on Sketchfab

Motorcycle by SHINING 3D on Sketchfab

Show More Show Less

Beginner Guide

Guiding EINSTAR VEGA users on how to activate, calibrate, and effectively scan objects, share mesh data, and update the software for optimal performance.
