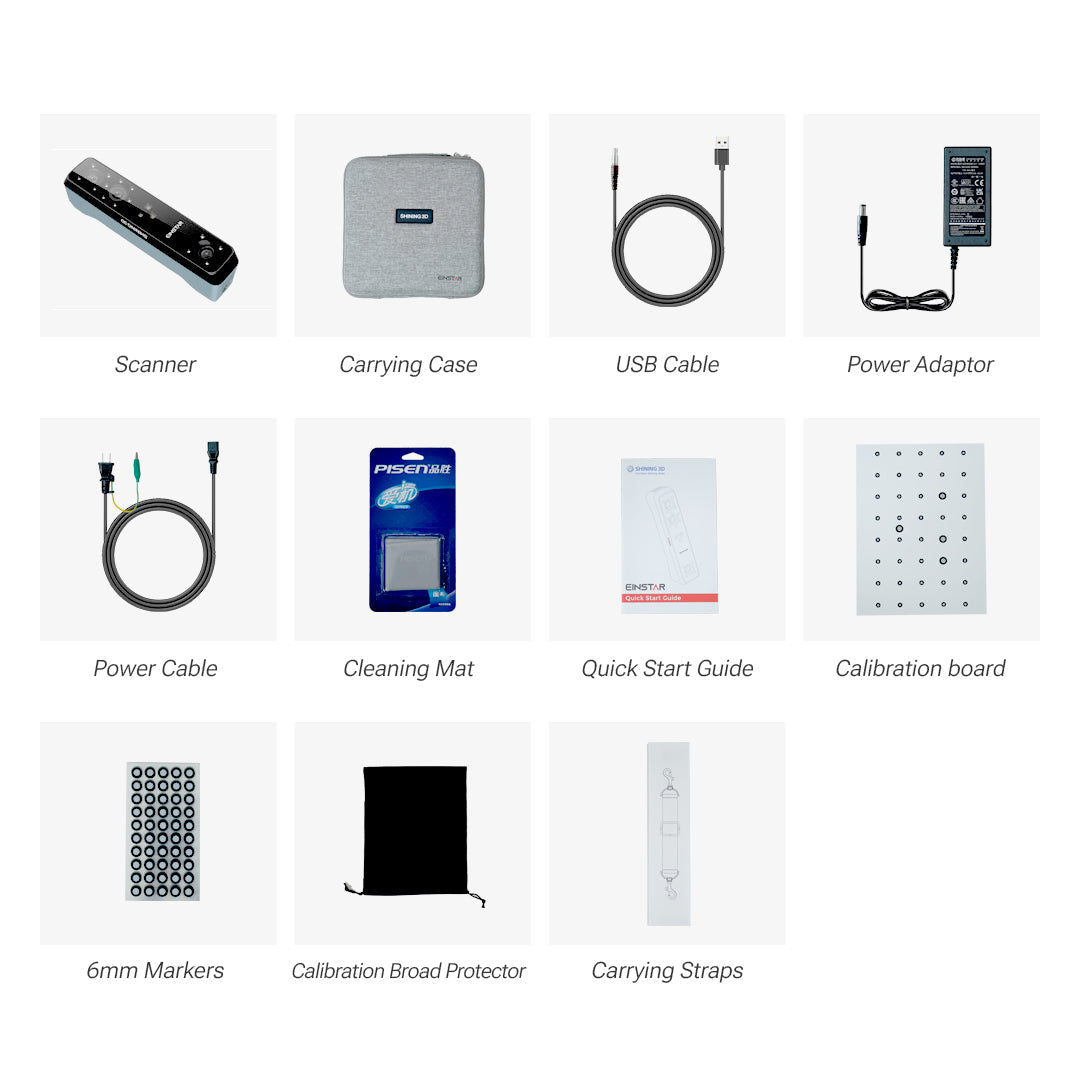

- What’s In The Box
- FAQs
- Reviews

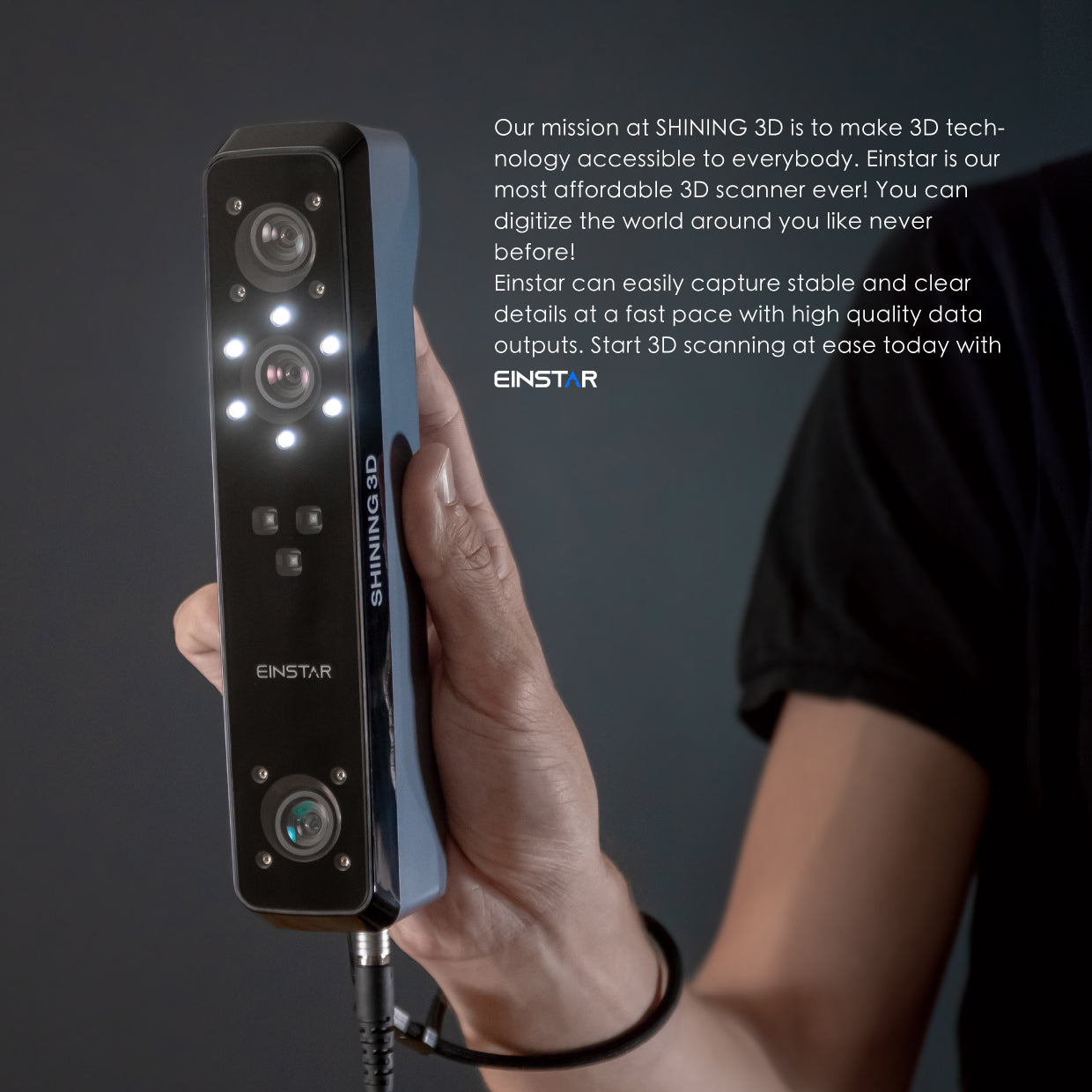

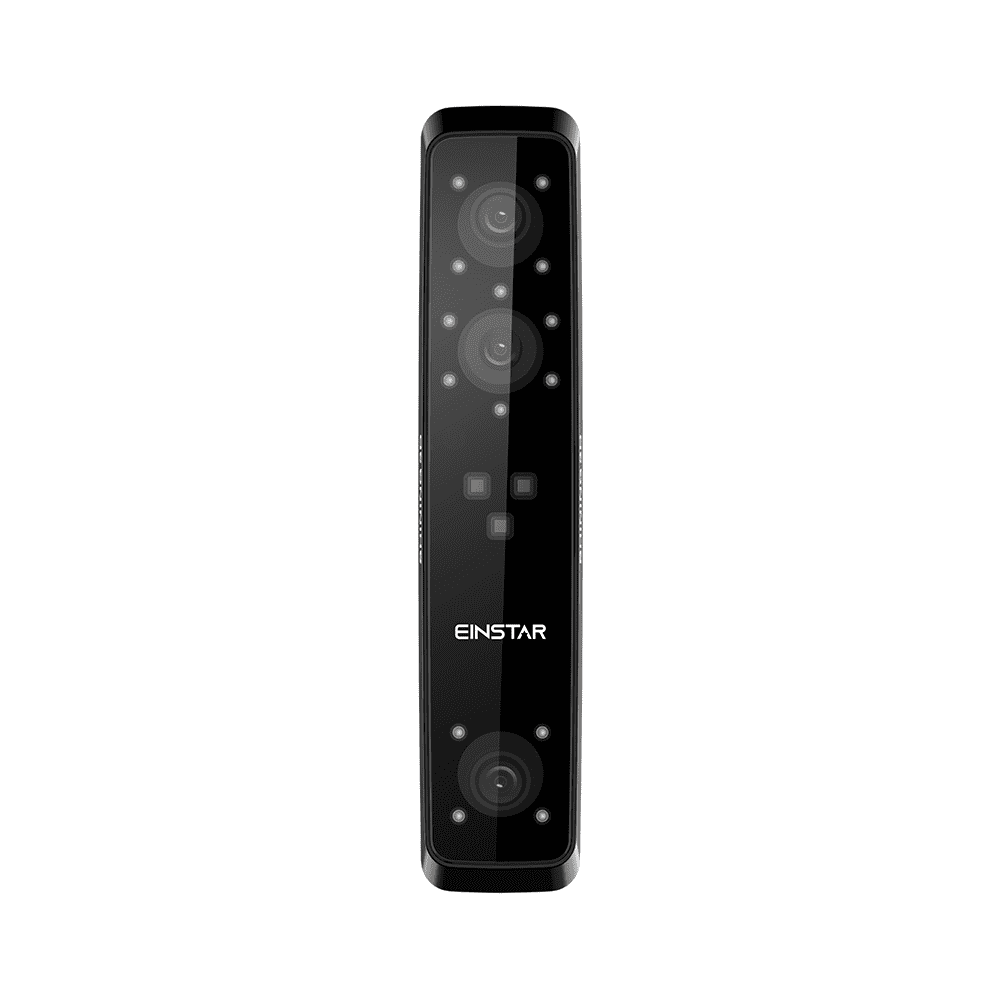

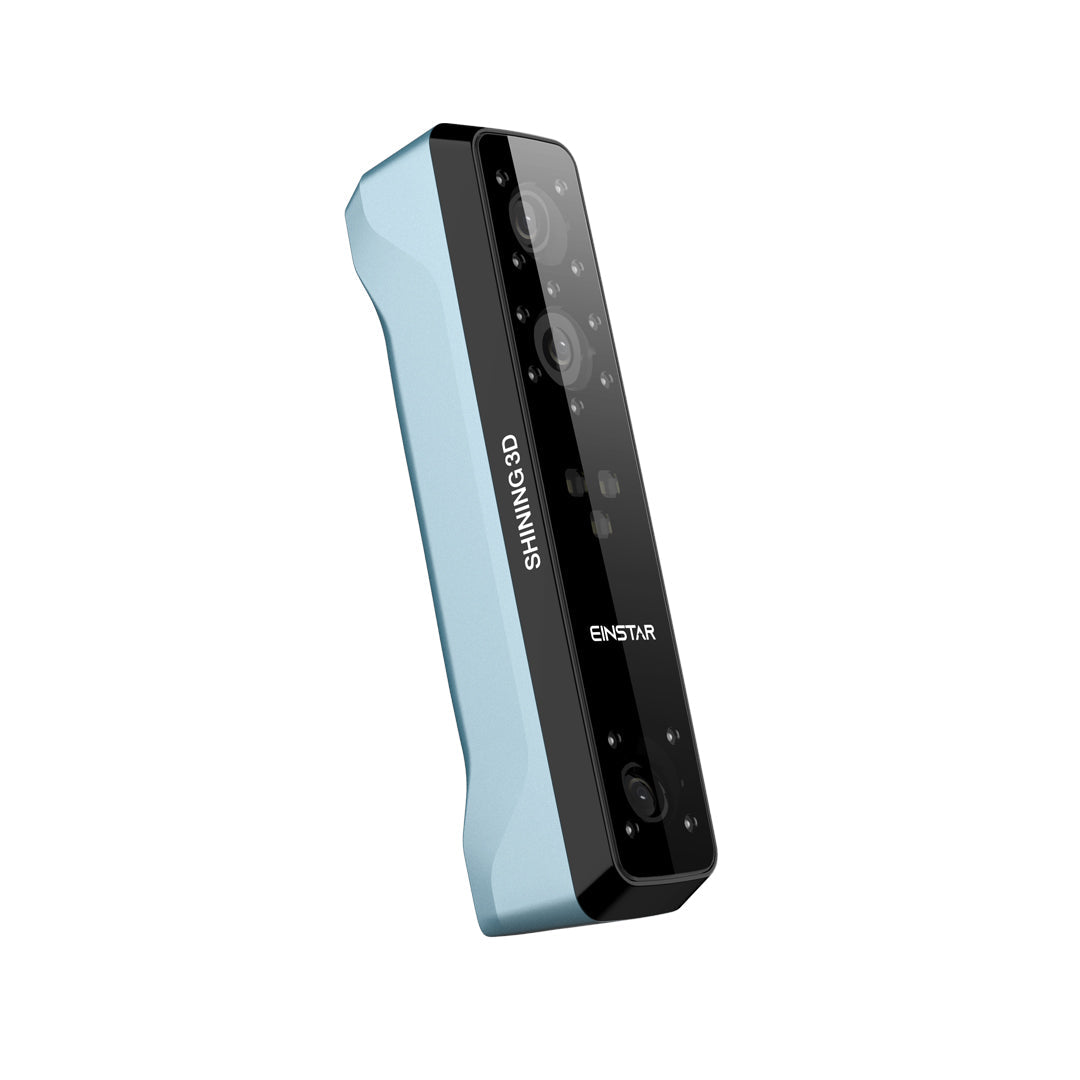

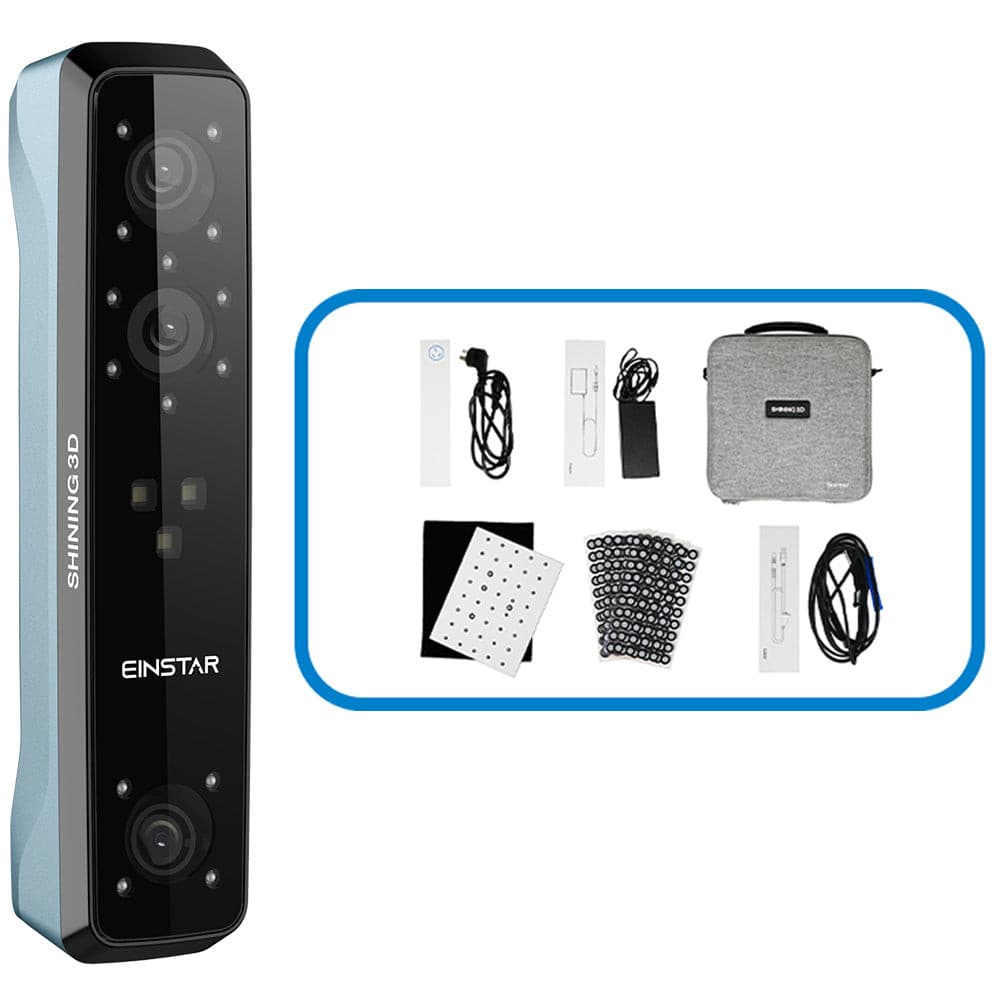

EINSTAR-Prosumer Portable 3D Scanner
Tax excluded. Shipping policy.
Smooth 3D scanning like never before
The New Frontier Of 3D Scanner

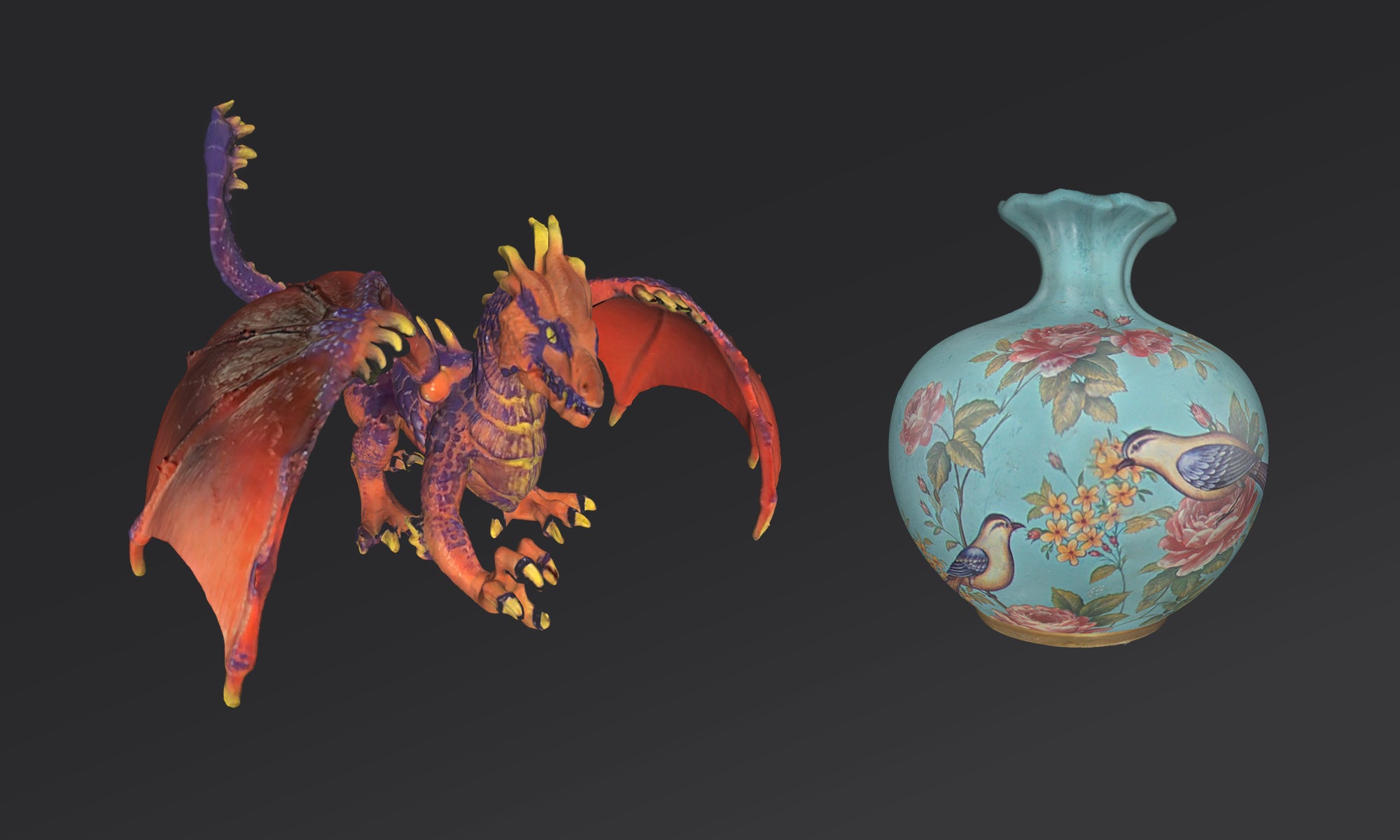

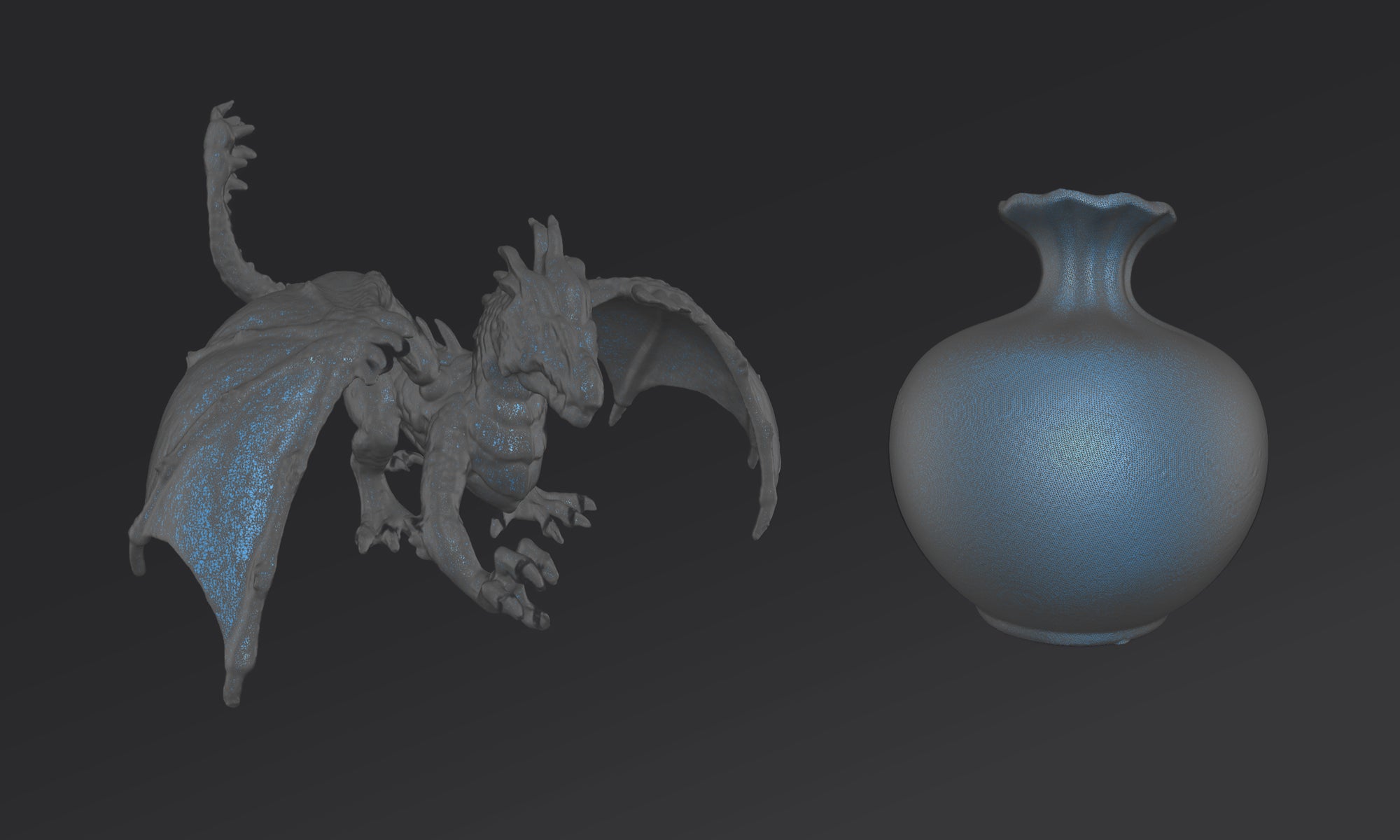

True Scan Restoration
EINSTAR v1.2 new software algorithms obtain sharper and clearer data details and vivid texture more easily. Whether you're working in the field or in a studio, the EINSTAR is an affordable, portable 3D scanner that offers unmatched results compared to other 3D scanners in the same price range.

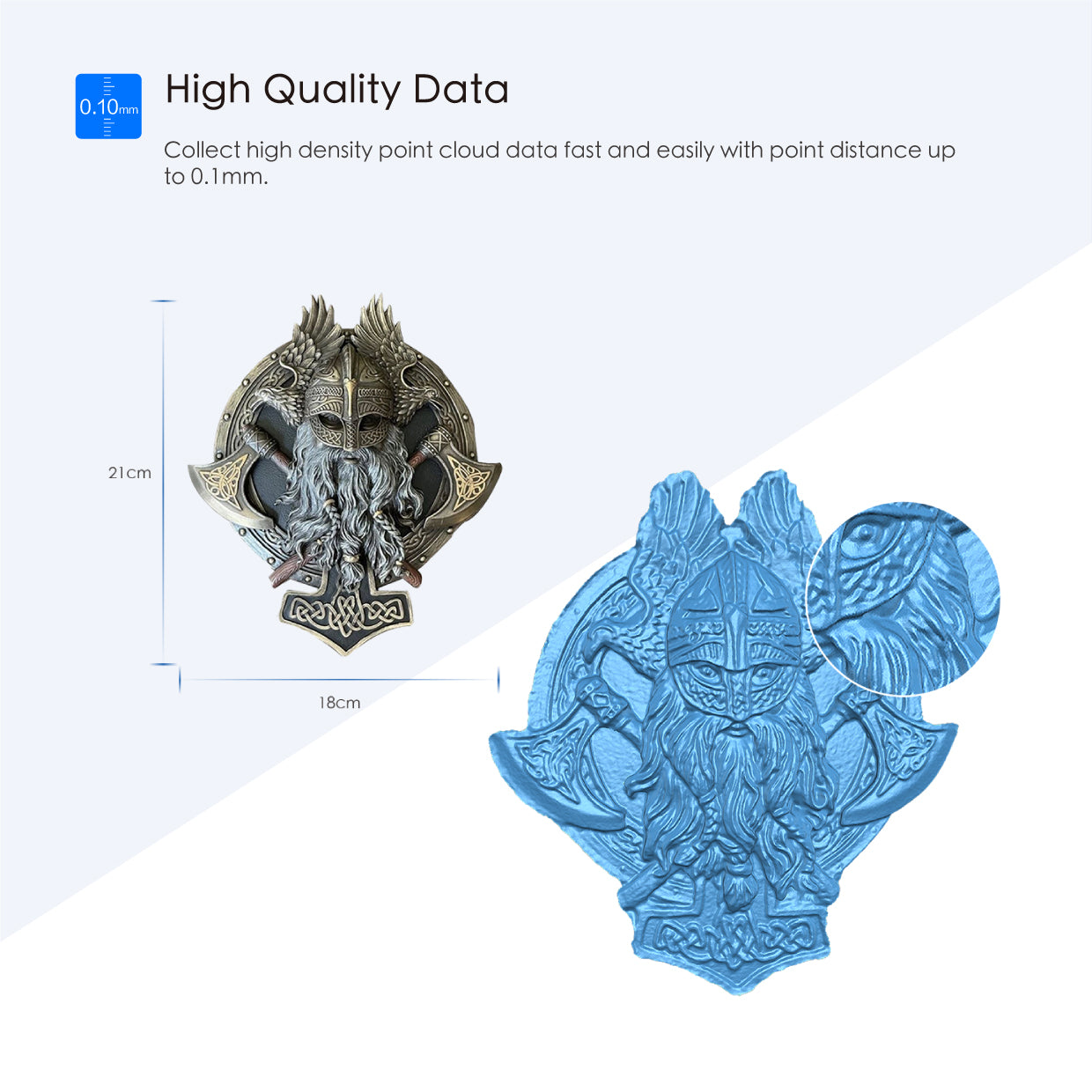

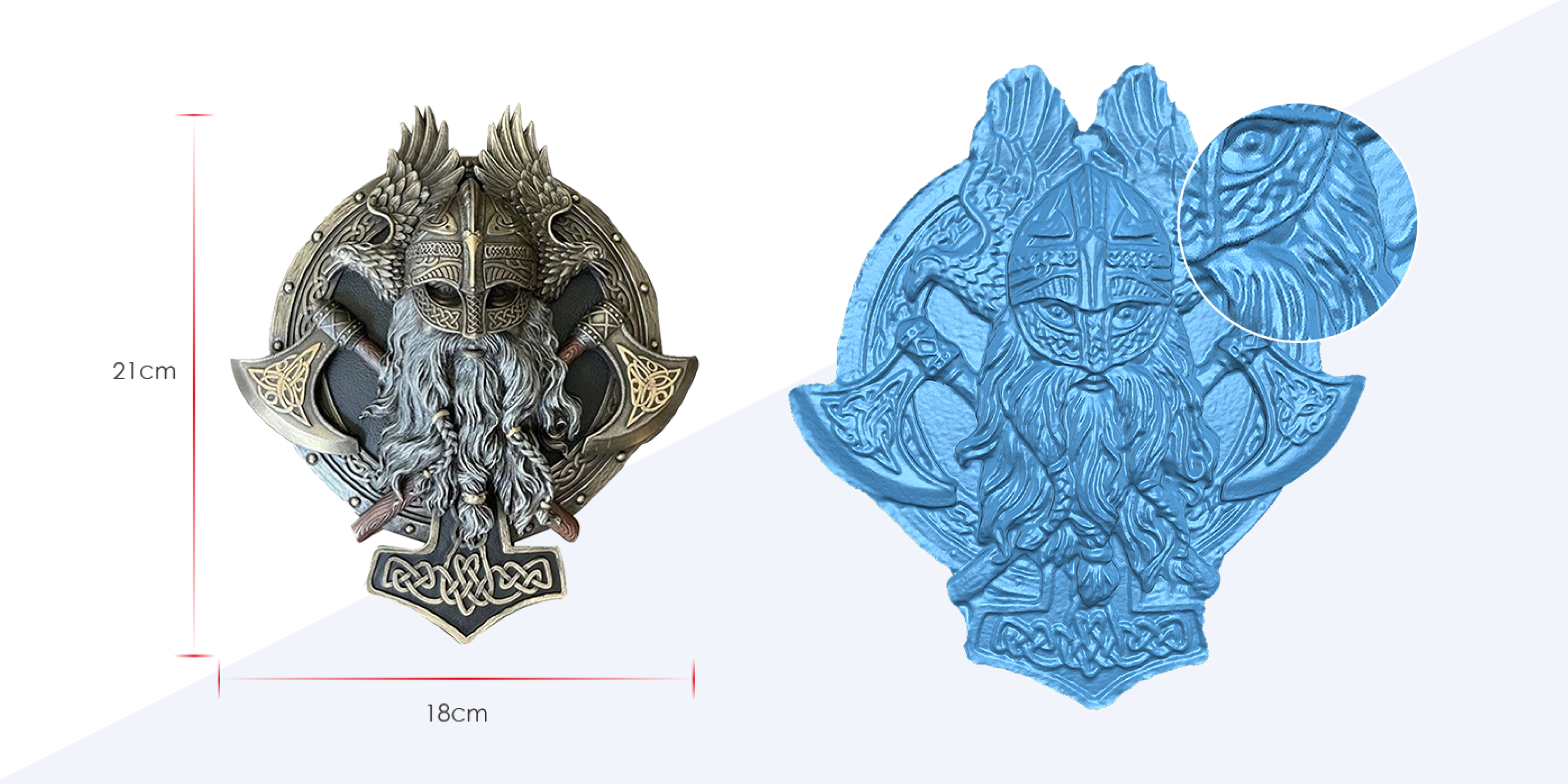

High Quality Data
Collect high density point cloud data fast and easily with point distance up to 0.1mm.

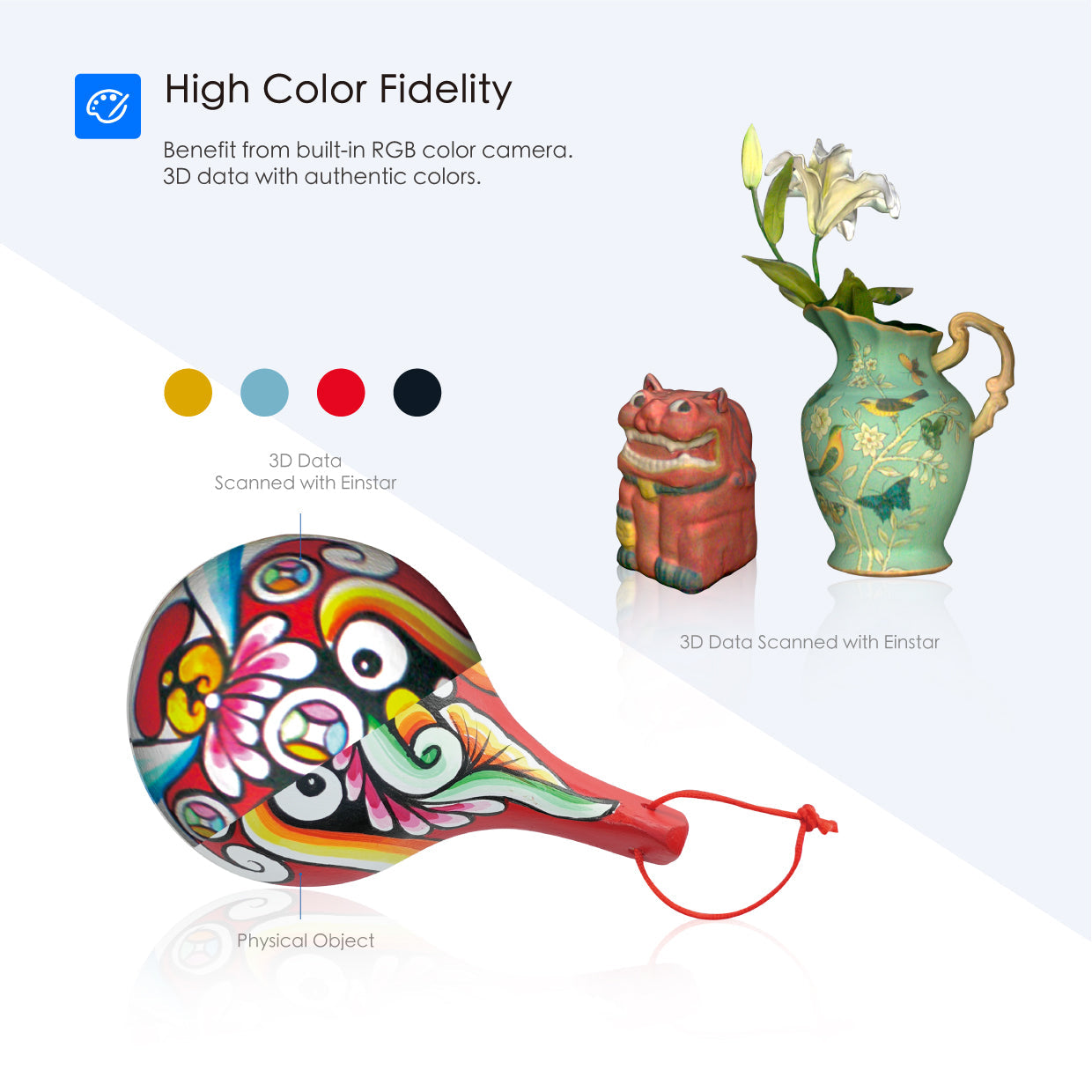

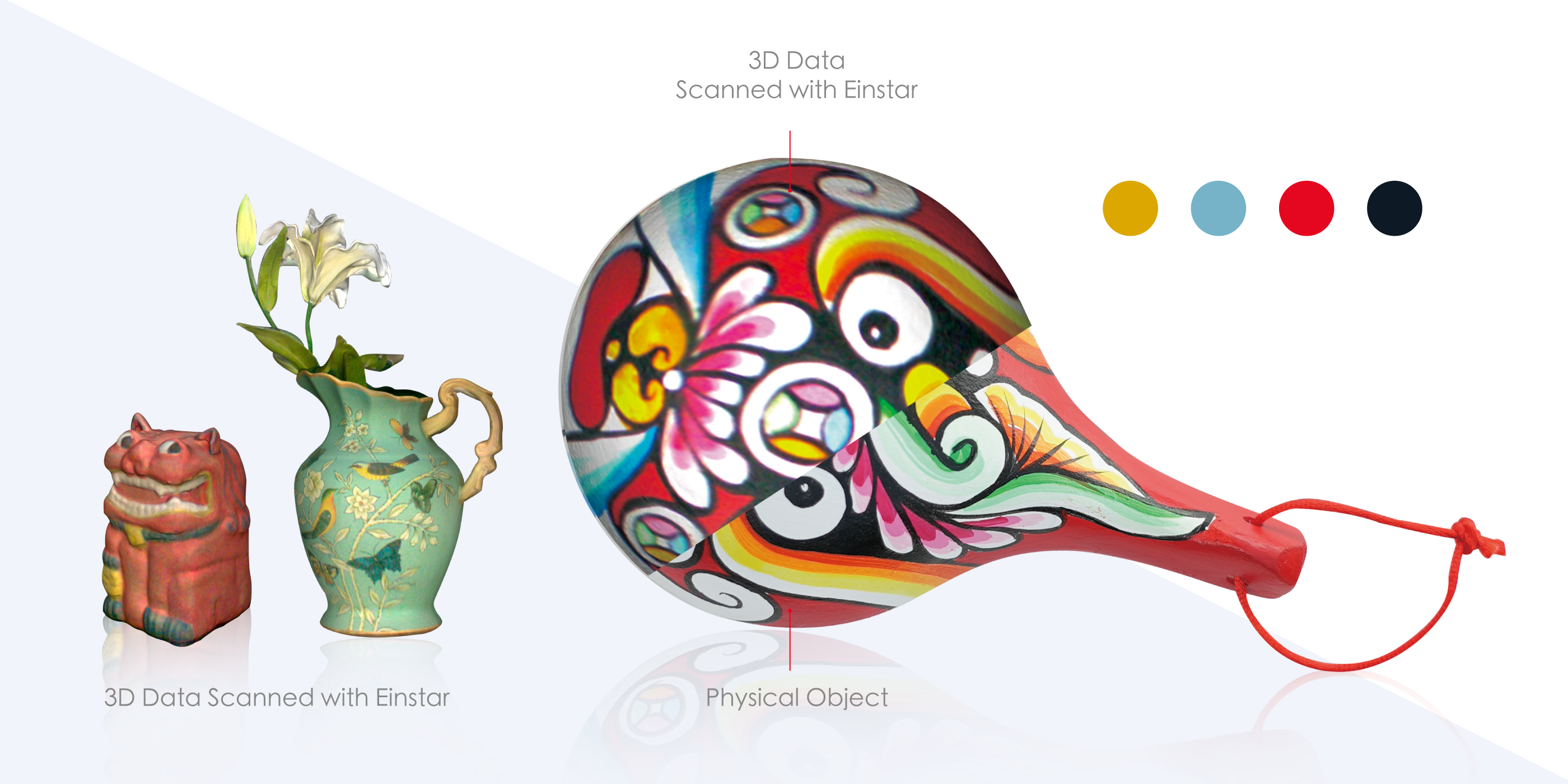

High Color Fidelity
Benefit from built-in RGB color camera. 3D data with authentic colors.

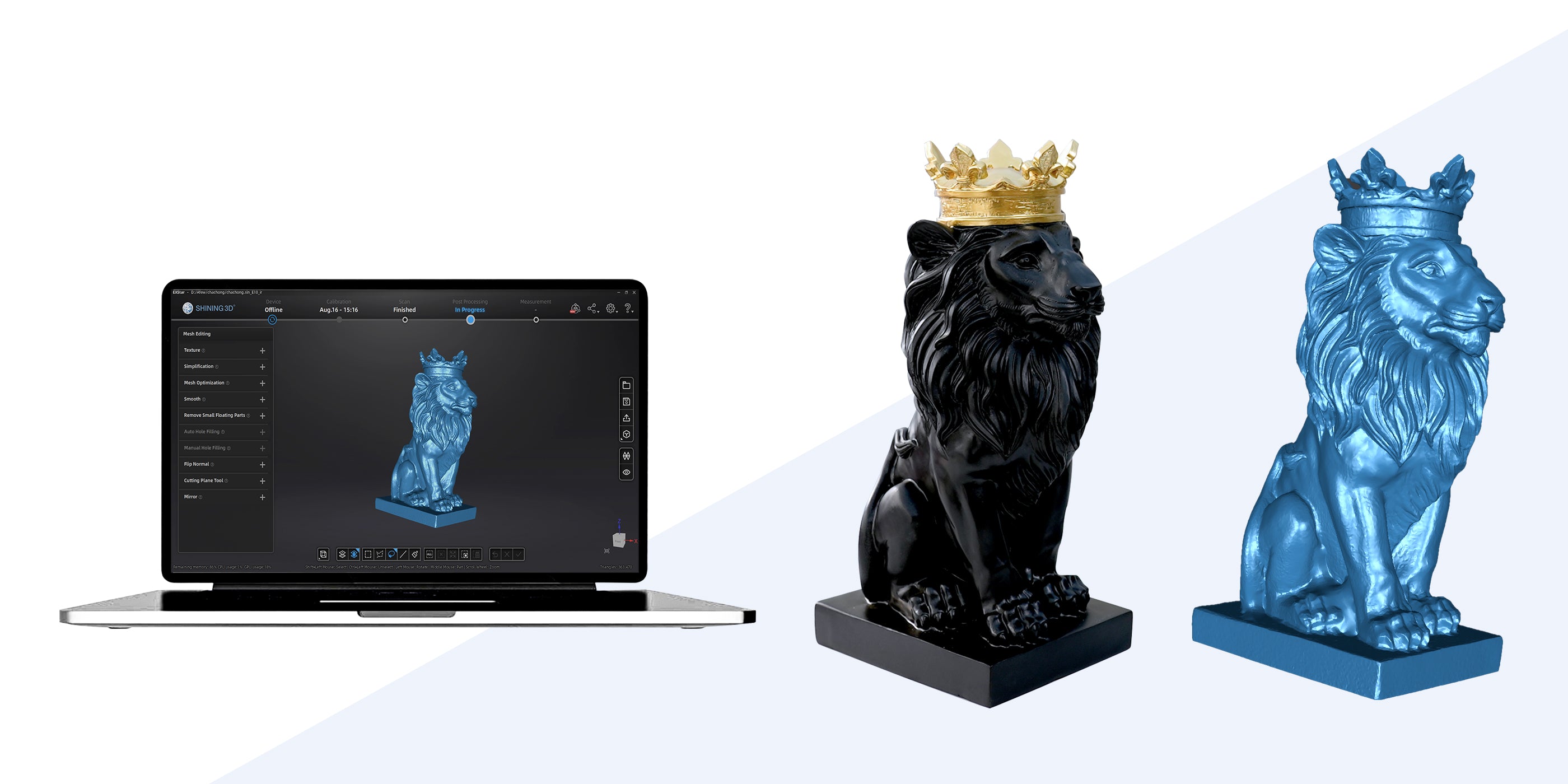

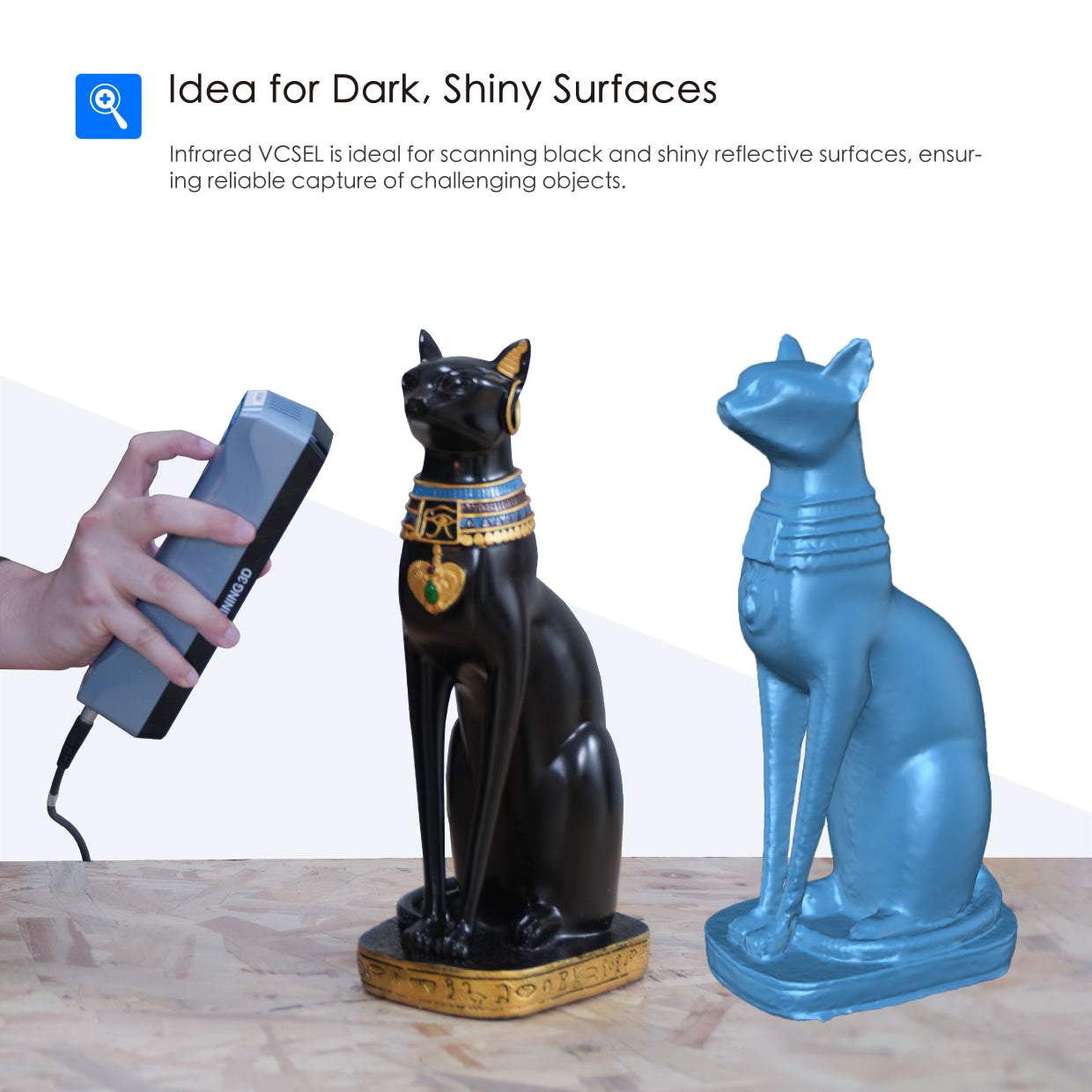

Ideal for Dark or Shiny Surfaces
Infrared VCSEL is ideal for scanning black and shiny reflective surfaces, ensuring reliable capture of challenging objects.

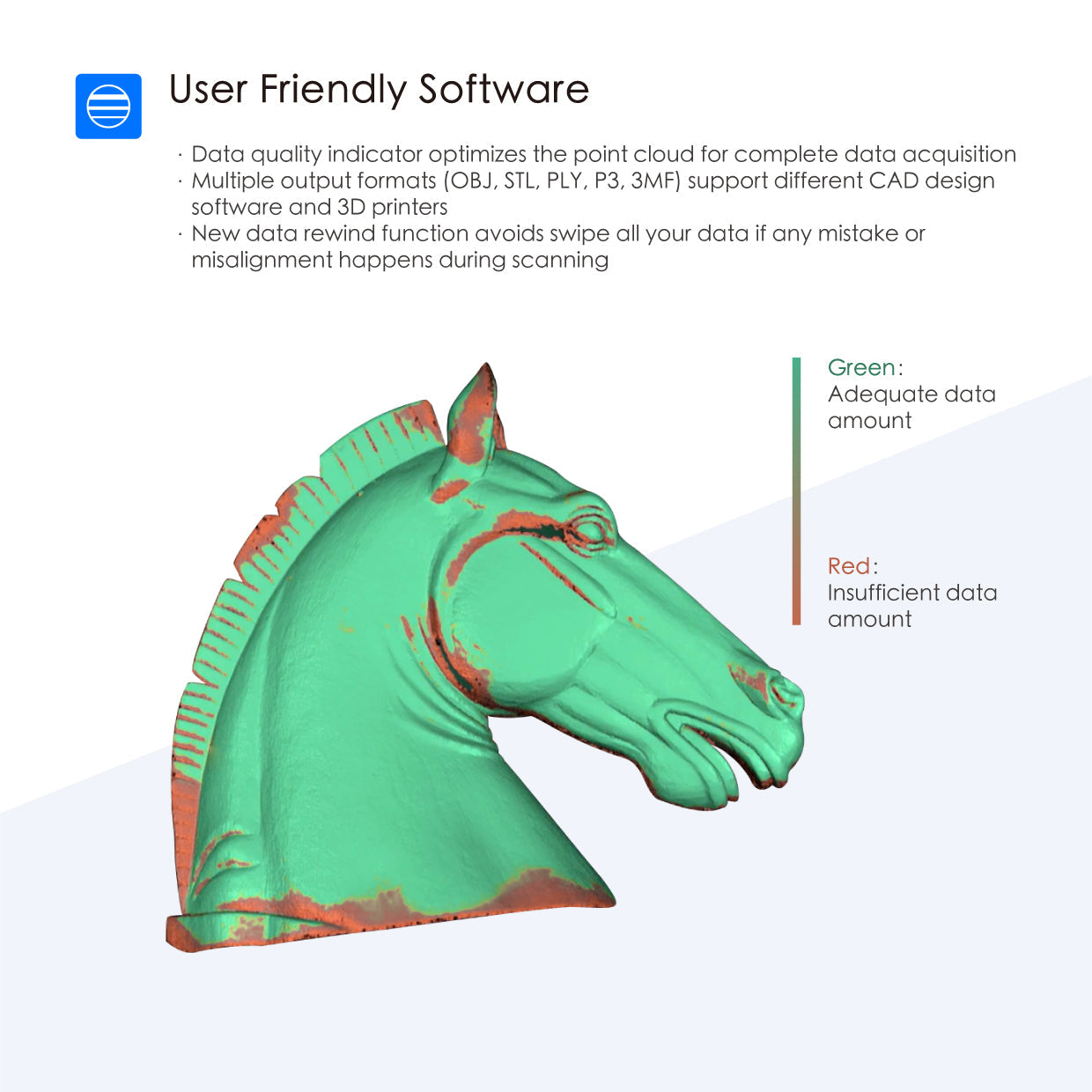

User Friendly Software

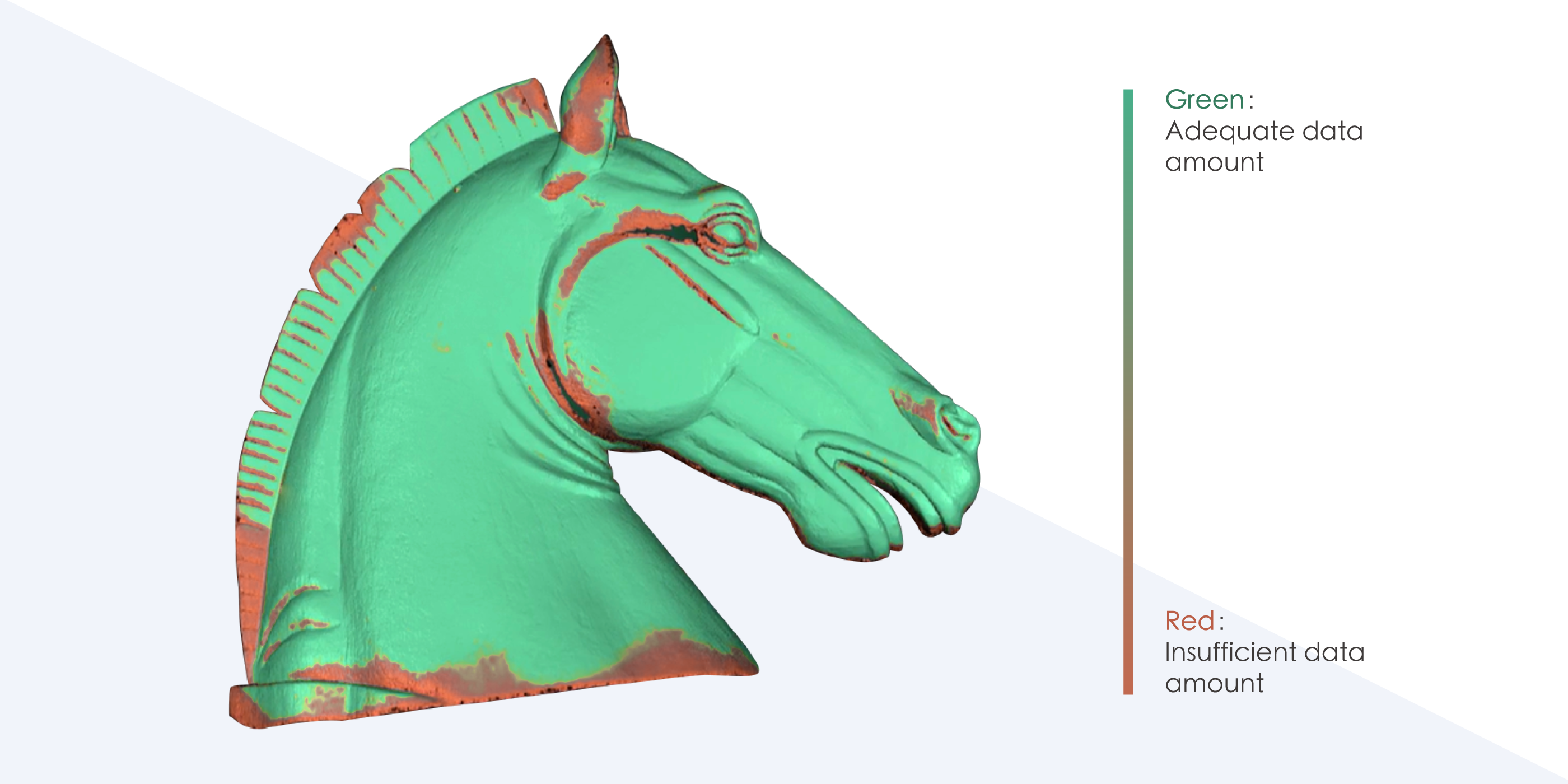

- Data quality indicator optimizes the point cloud for complete data acquisition.
- Multiple output formats (OBJ, STL, PLY, P3, 3MF) support different CAD design software and 3D printers.
- New data rewind function avoids swipe all your data if any mistake or misalignment happens during scanning.

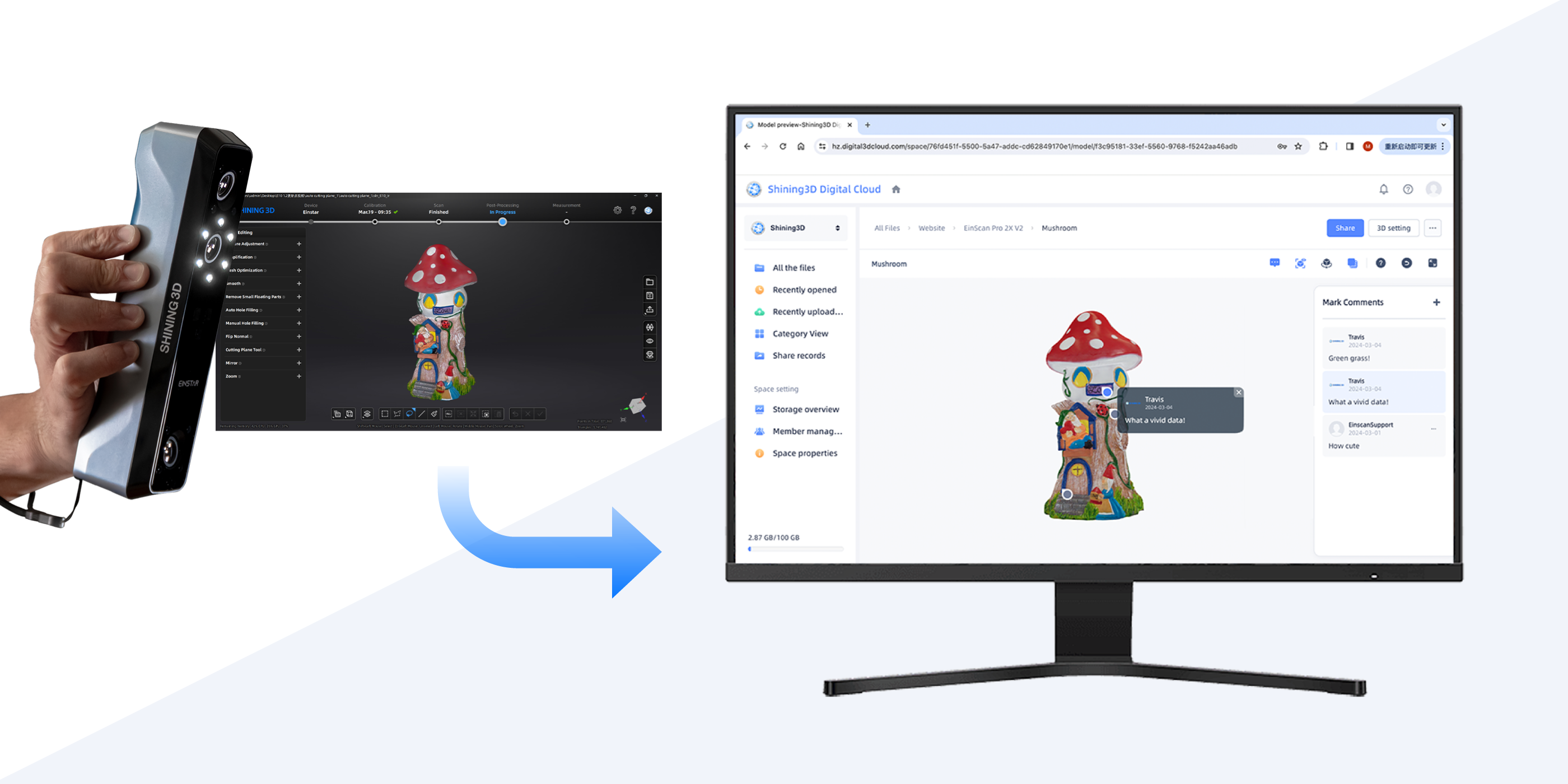

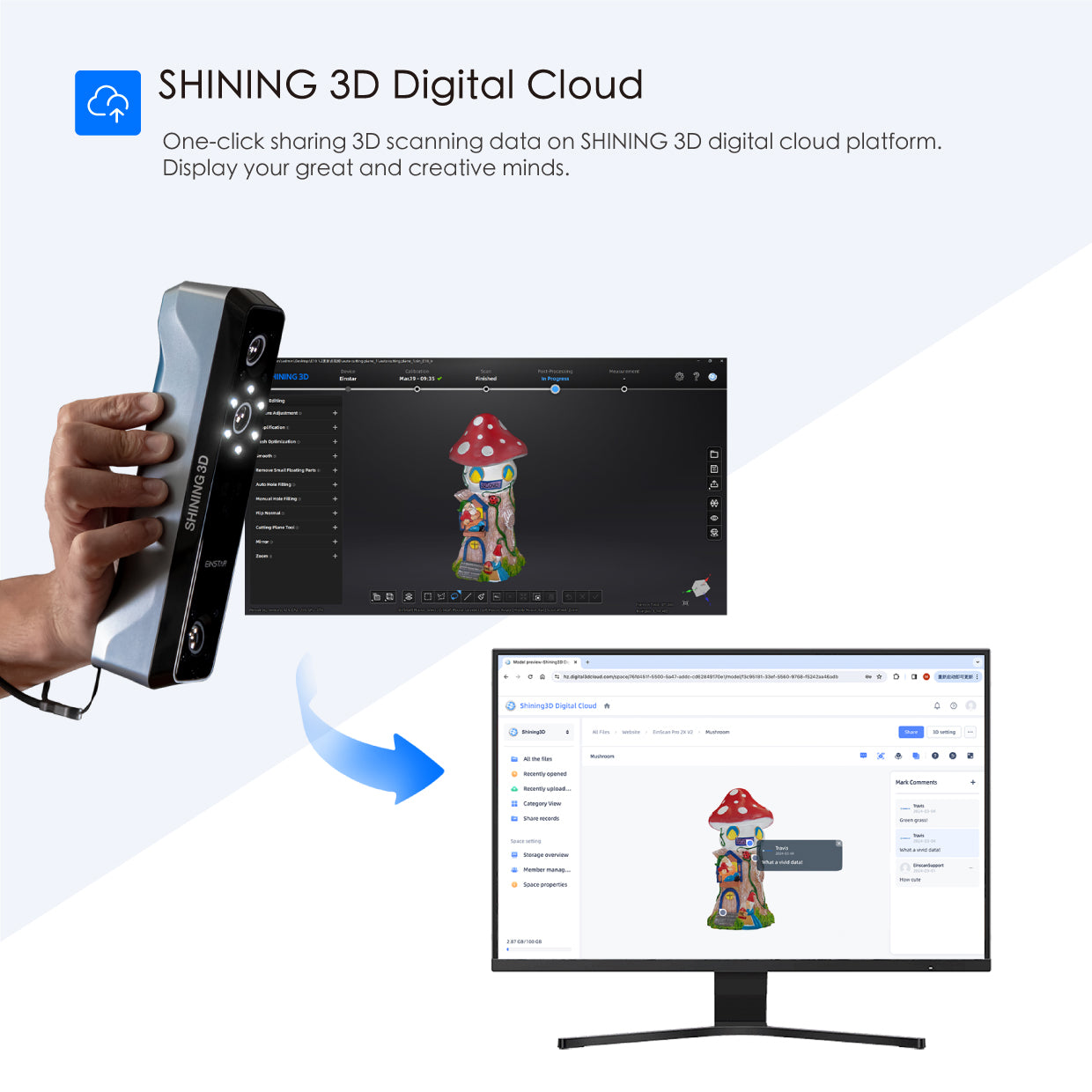

SHINING 3D Digital Cloud
One-click sharing 3D scanning data on SHINING 3D digital cloud platform. Display your great and creative minds.

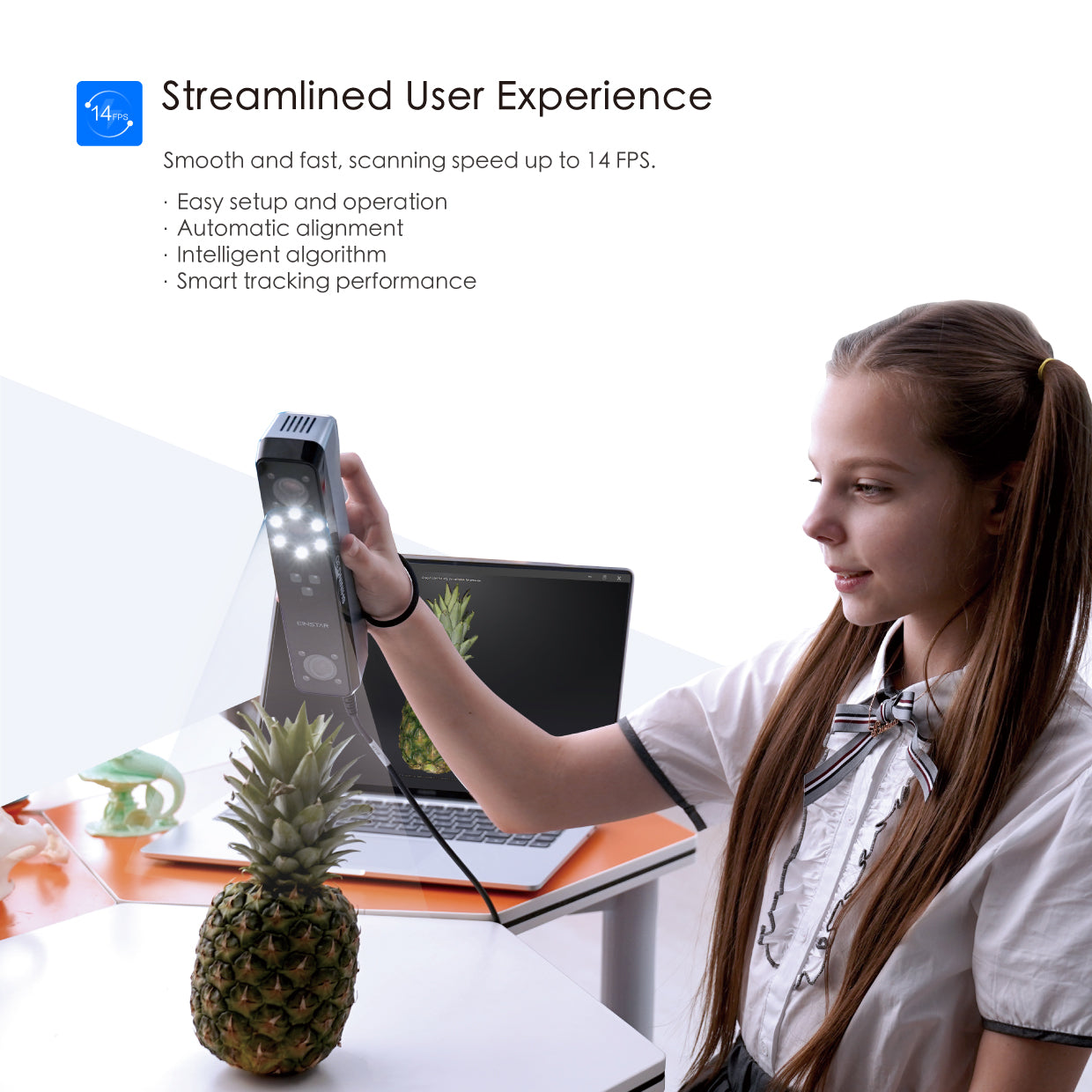

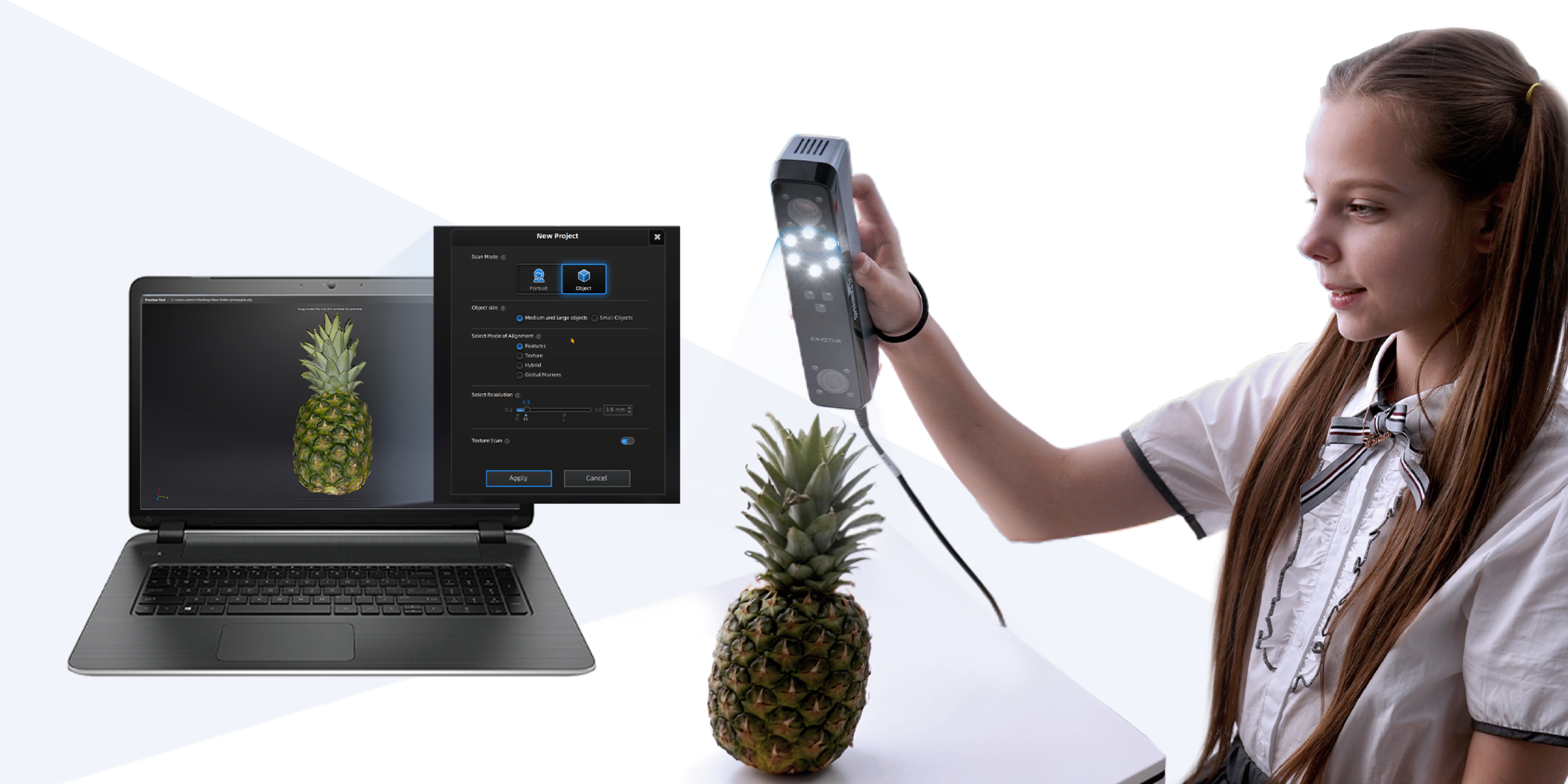

Streamlined User Experience
Smooth and fast, scanning speed up to 14 FPS.
- Easy setup and operation.
- Automatic alignment.
- Intelligent algorithm.
- Smart tracking performance.
Comfortable for Eyes, Easy to Scan Hair
- No projector light during scanning process.
- Perfect for full body scanner, comfortable and safe for eyes.
- Turning on "Hair Mode" to get sufficient hair data for human scan and improve the whole data completeness.

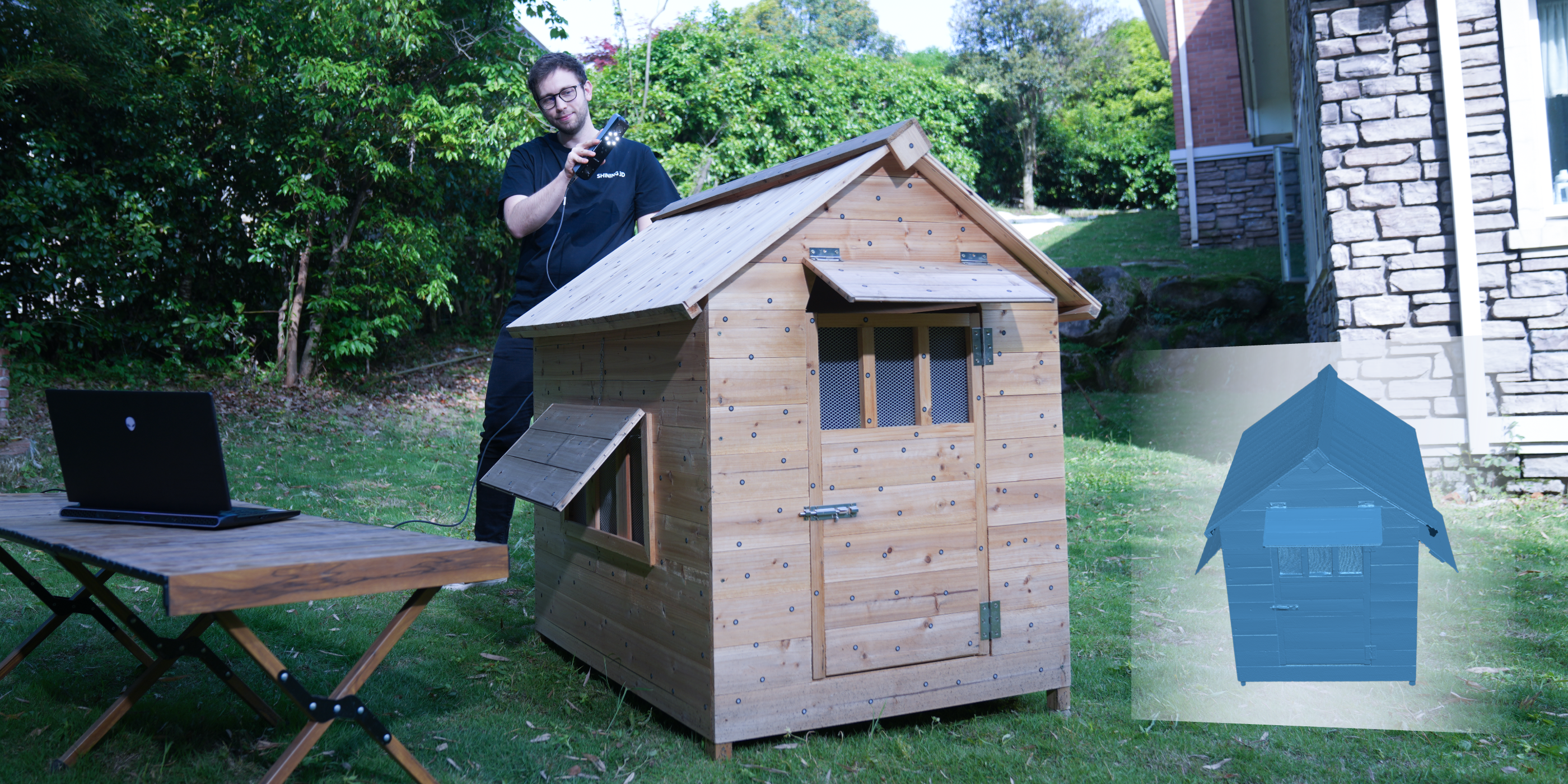

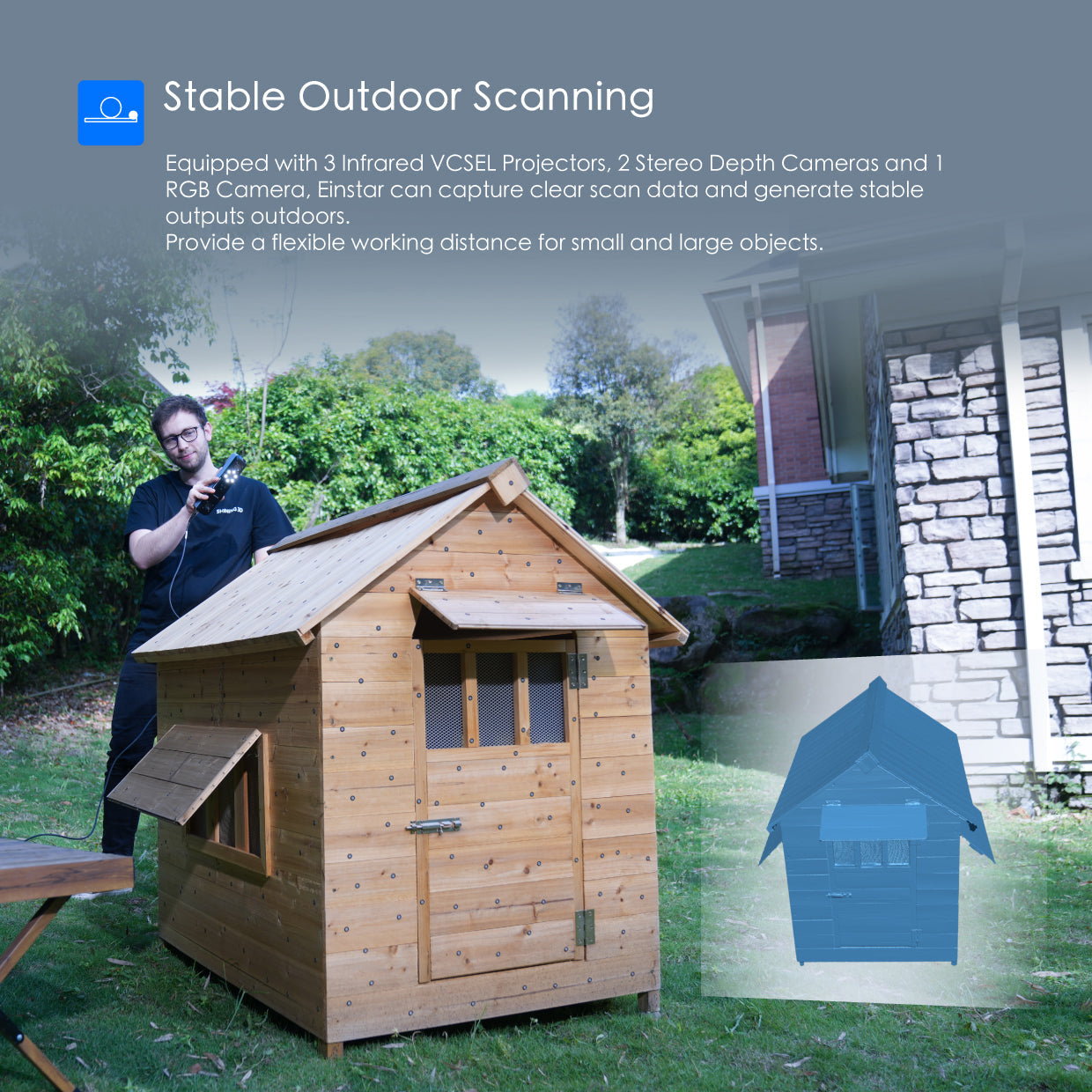

Stable Outdoor Scanning
- Equipped with 3 Infrared VCSEL Projectors, 2 Stereo Depth Cameras and 1 RGB Camera, Einstar can capture clear scan data and generate stable outputs outdoors.
Product Specification
Structed Light Scan
0.1 mm ~ 3 mm
Infrared VCSEL structured light
Effective Working Distance: 160mm-1400mm Optimal Working Distance: 400mm
160-1400mm
434mm*379mm (under optimal work distance)
980,000points/s, up to 14FPS
Feature Alignment, Hybrid Alignment, Texture Alignment, Global Markers
Eye-safe
Yes
USB2.0 or above
Yes
OBJ; STL; PLY; P3; 3MF
220mm*46mm*55mm
500g
245mm*245mm*90mm
0-40℃
10-90%
OS: Win10/11, 64 bit;
Graphics card: NVIDIA GTX1050;
Video memory: ≥6GB;
Processor: I7-11800H;
Memory: ≥32GB
OS: MAC；
Apple Silicon: M1 Pro or higher (8-core GPU or more)；
RAM: 32GB or more；
USB: 2.0；
OS: macOS Ventura 13 or newer
OS: Win10, 64 bit;
Graphics card: NVIDIA GTX1050;
Video memory: ≥4GB;
Processor: I7-7700H;
Memory: ≥16GB
OS: MAC；
Apple Silicon: M1 or higher (8-core GPU or more)；
RAM: 16GB or more；
USB: 2.0；
OS: macOS Ventura 13 or newer
CE, FCC, ROHS, WEEE, KC
* EINSTAR infrared light source, certificated as Class 1 laser product, is safe under all conditions of normal use.
* Global Markers alignment is only available in Object Scan Mode.
* EINSTAR must require computer equipped with NIVIDA graphics card.
3D Data Gallery
FAQs
Explore answers to common questions about our services, products, and policies.
Why choose Einstar 3D Scanner?
Einstar provides a wide FOV with high luminosity makes some challenging jobs of dark color, hair scan, outdoor scanning much easier. Software with smart tracking, auto alignment, easy data editing help control the data quality. The scanner and software is easy to use, very friendly to the users even it is the first time of 3d scanning.
What's the biggest/smallest object size it can scan?
Suggest Smallest Size is 100* 100* 100mm, The largest size depends on RAM, larger RAM can support larger objects.
What is the computer configuration requirement?
Windows：
- OS: Win10, 64 bit;
- Graphics card: NVIDIA GTX1060;
- Video memory: ≥4GB;
- Processor: I7-7700H;
- Memory: ≥16GB
MAC：
- Apple Silicon: M1 Pro or higher (8-core GPU or more)
- RAM: 32GB or more
- USB: 2.0
- OS: macOS Ventura 13 or newer
For more computer configuration models, please click this link: [Link].
How long will it take to get my orders?
It depends on where you are. Orders processed here will take 5-7 business days to arrive. Overseas deliveries can take anywhere from 7-16 days. Delivery details will be provided in your confirmation email.
