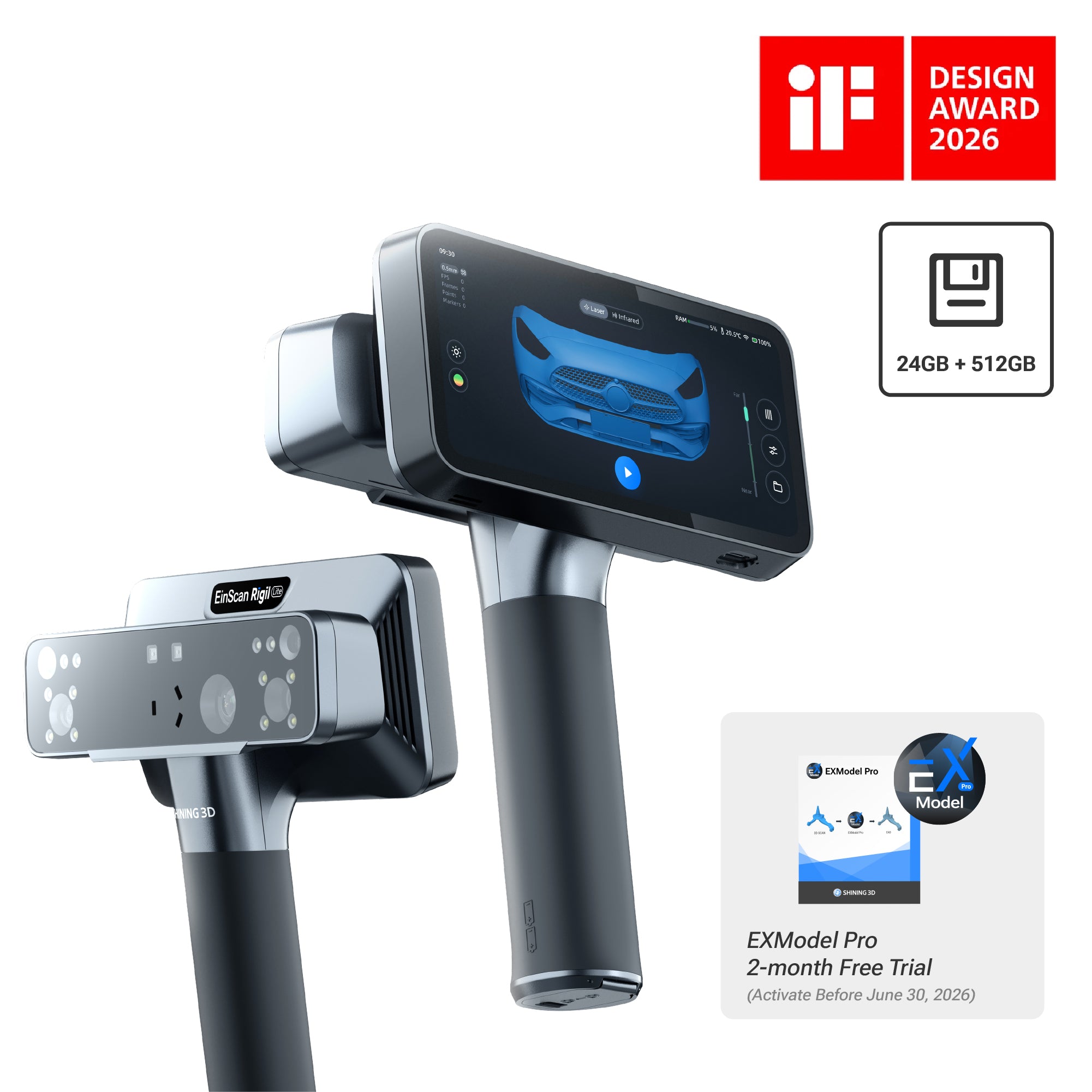

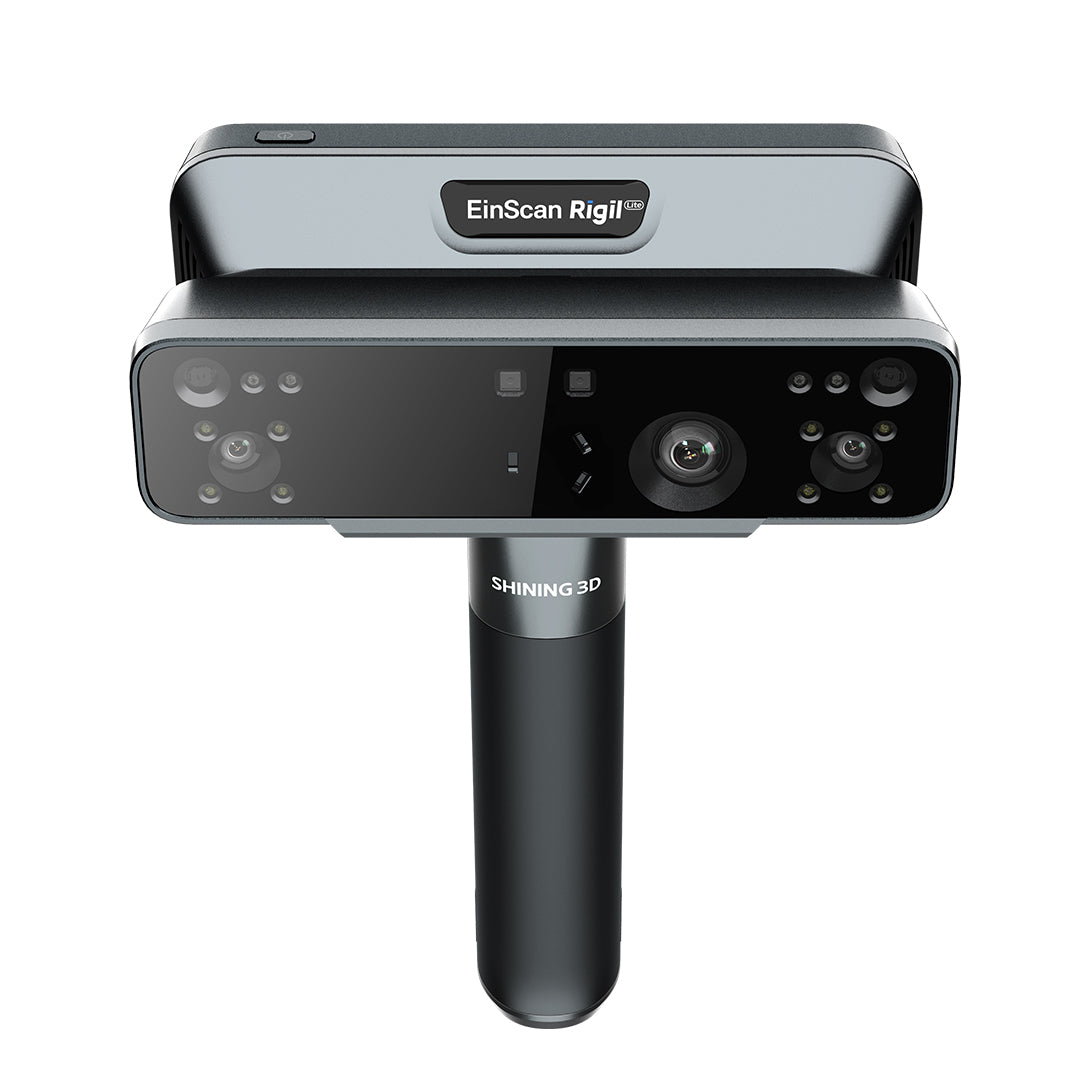

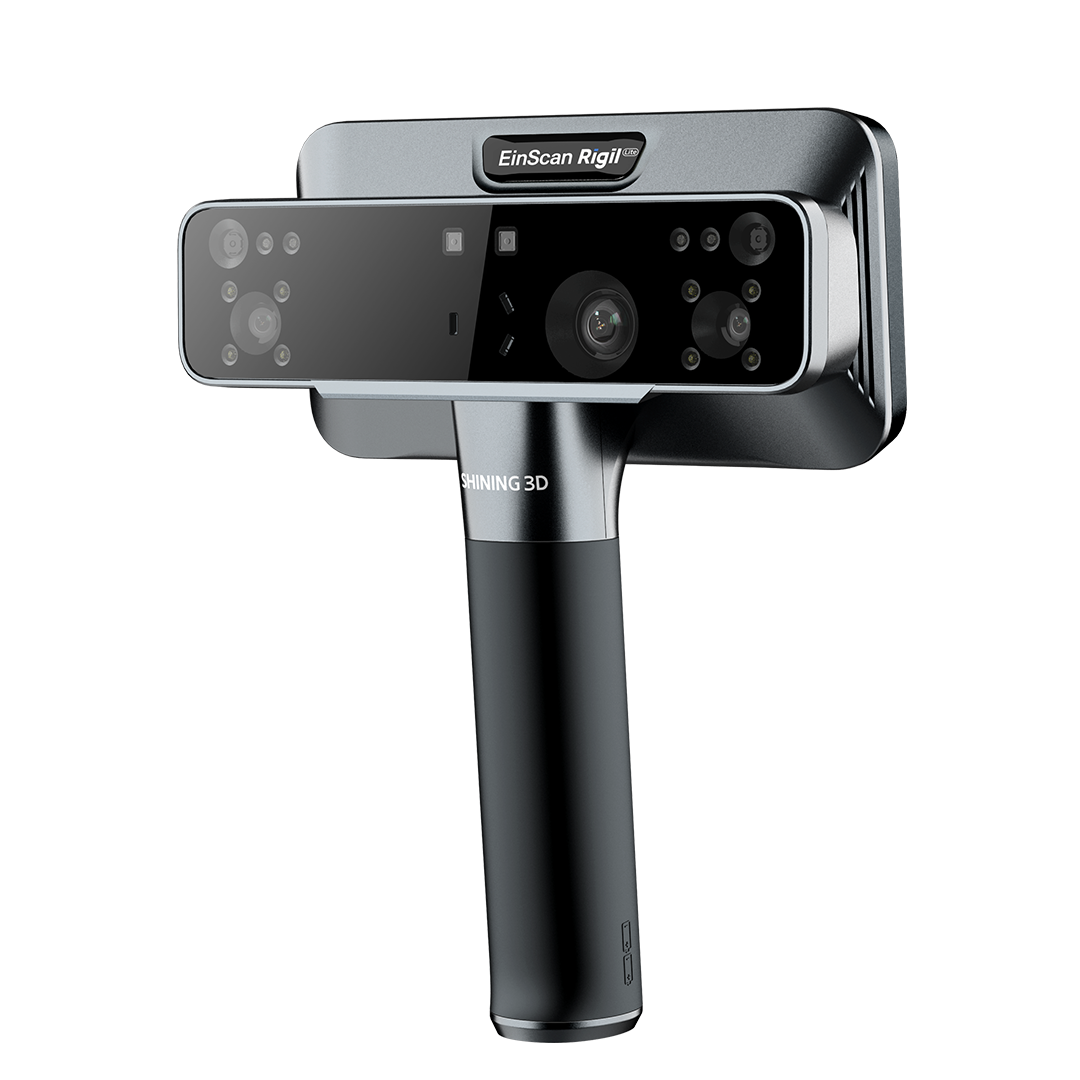

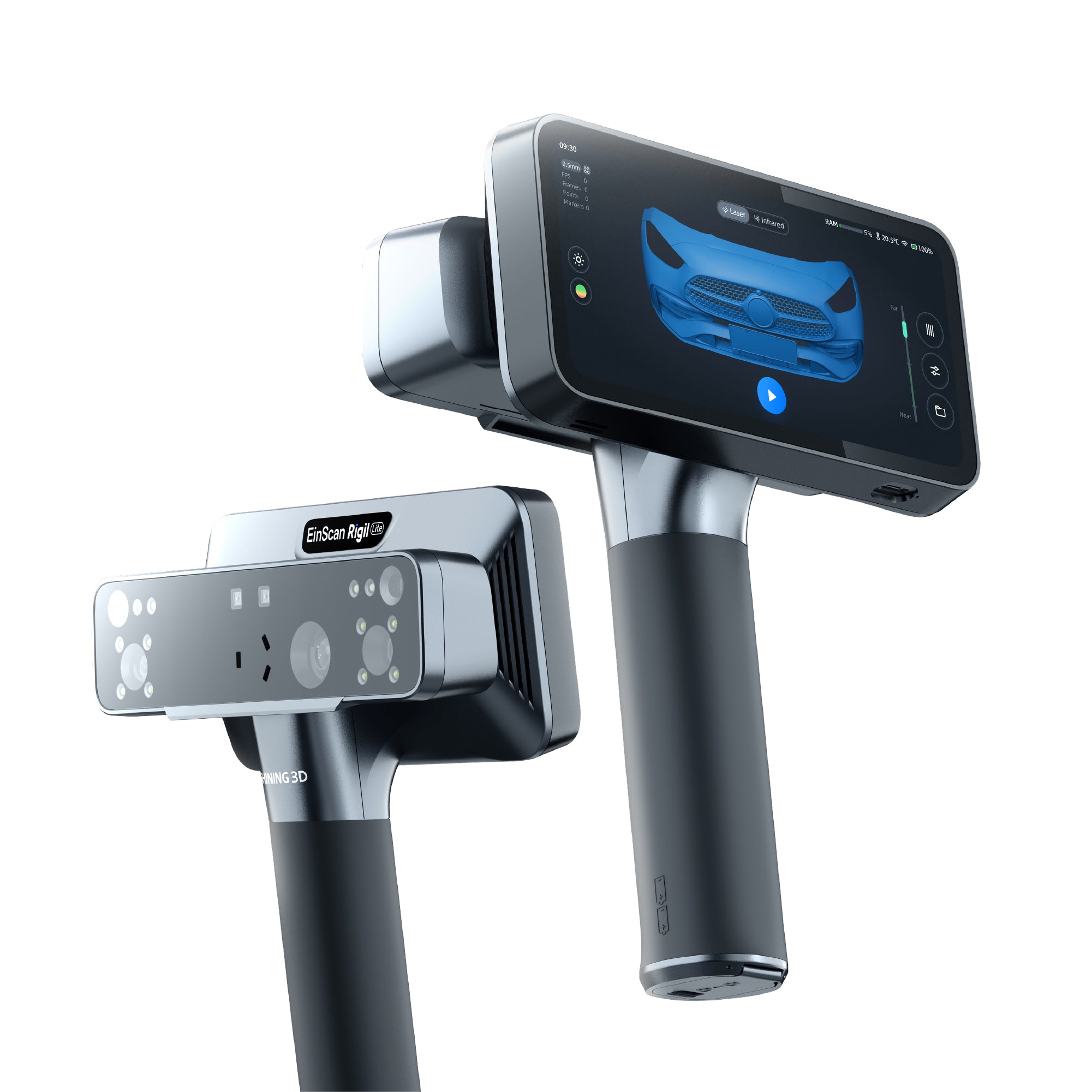

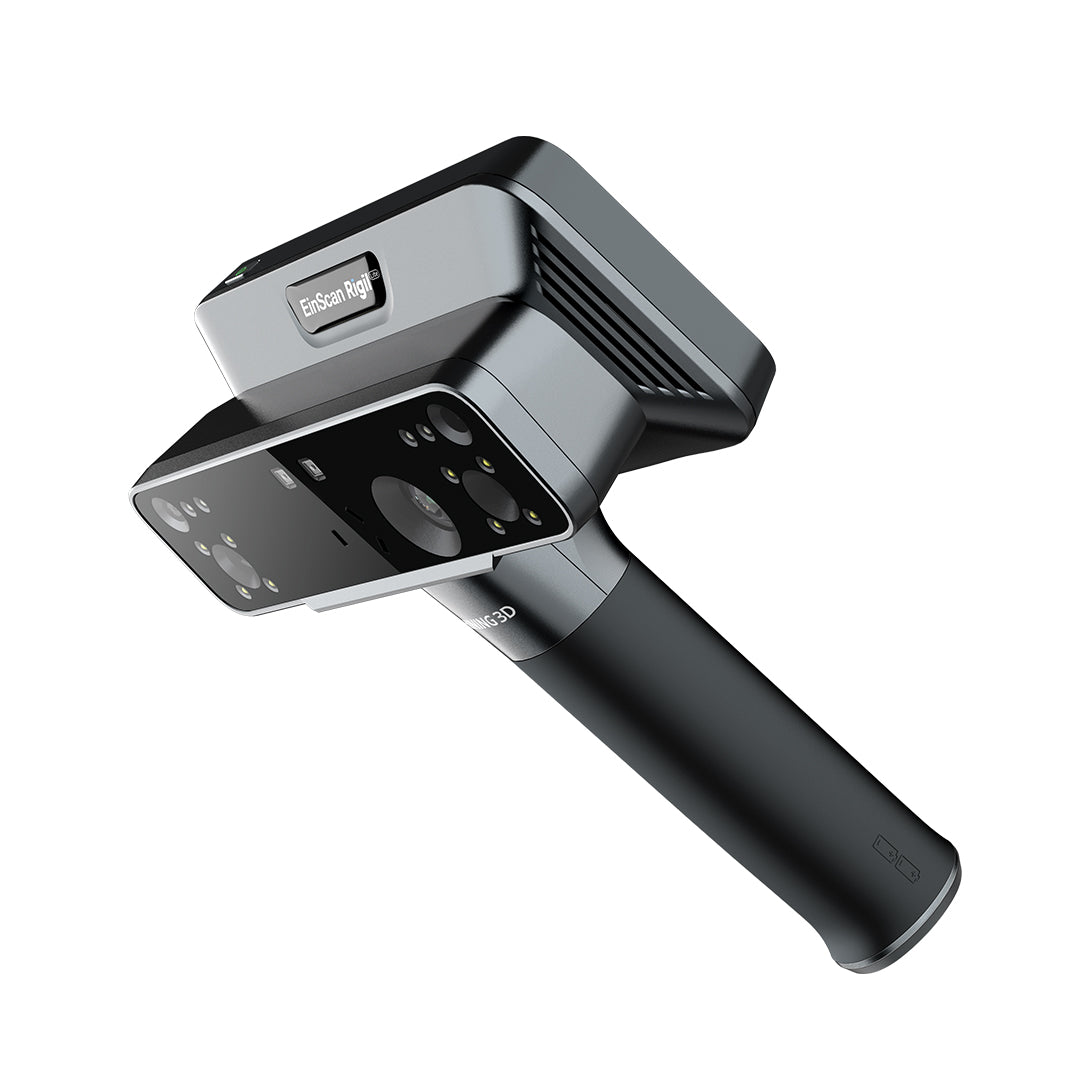

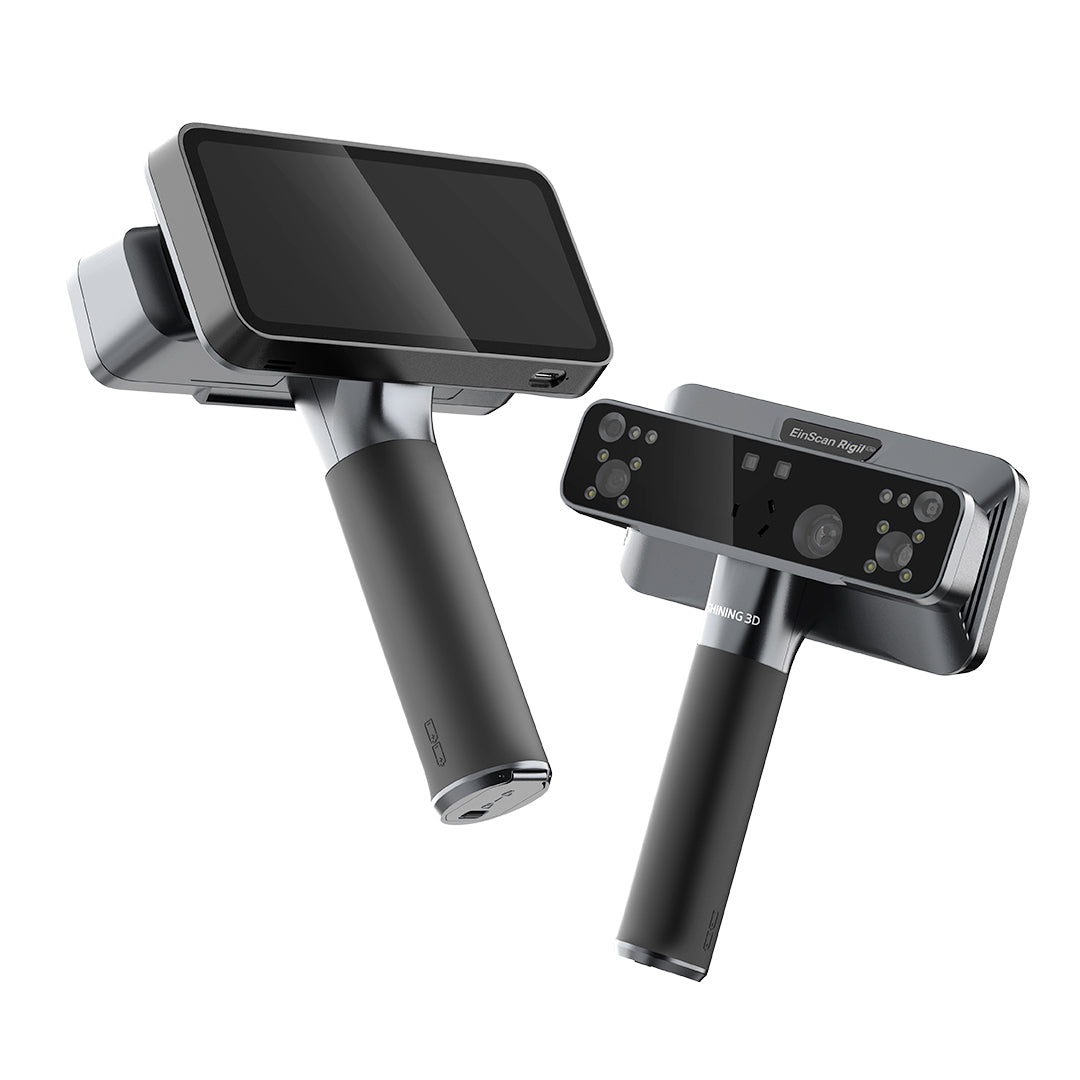

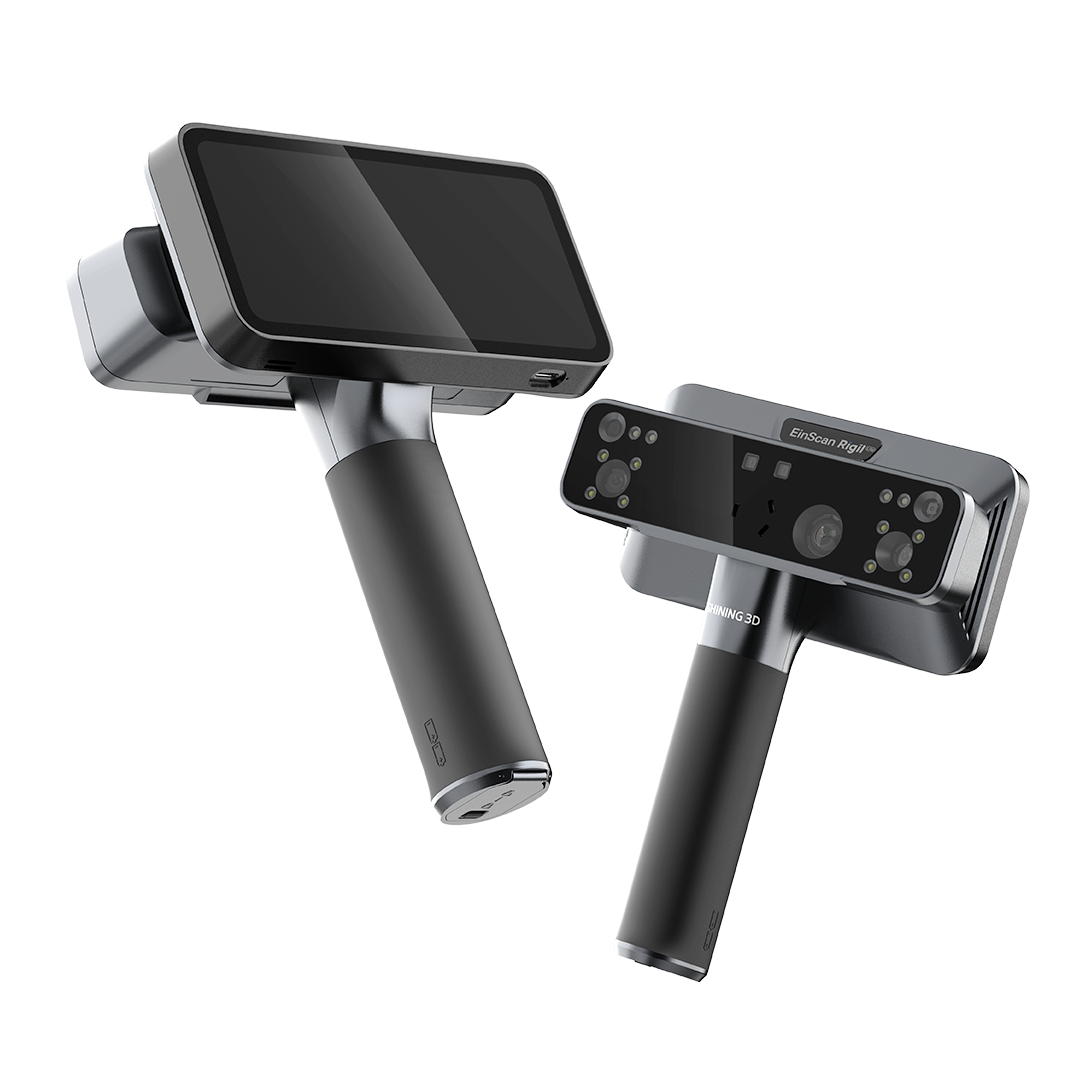

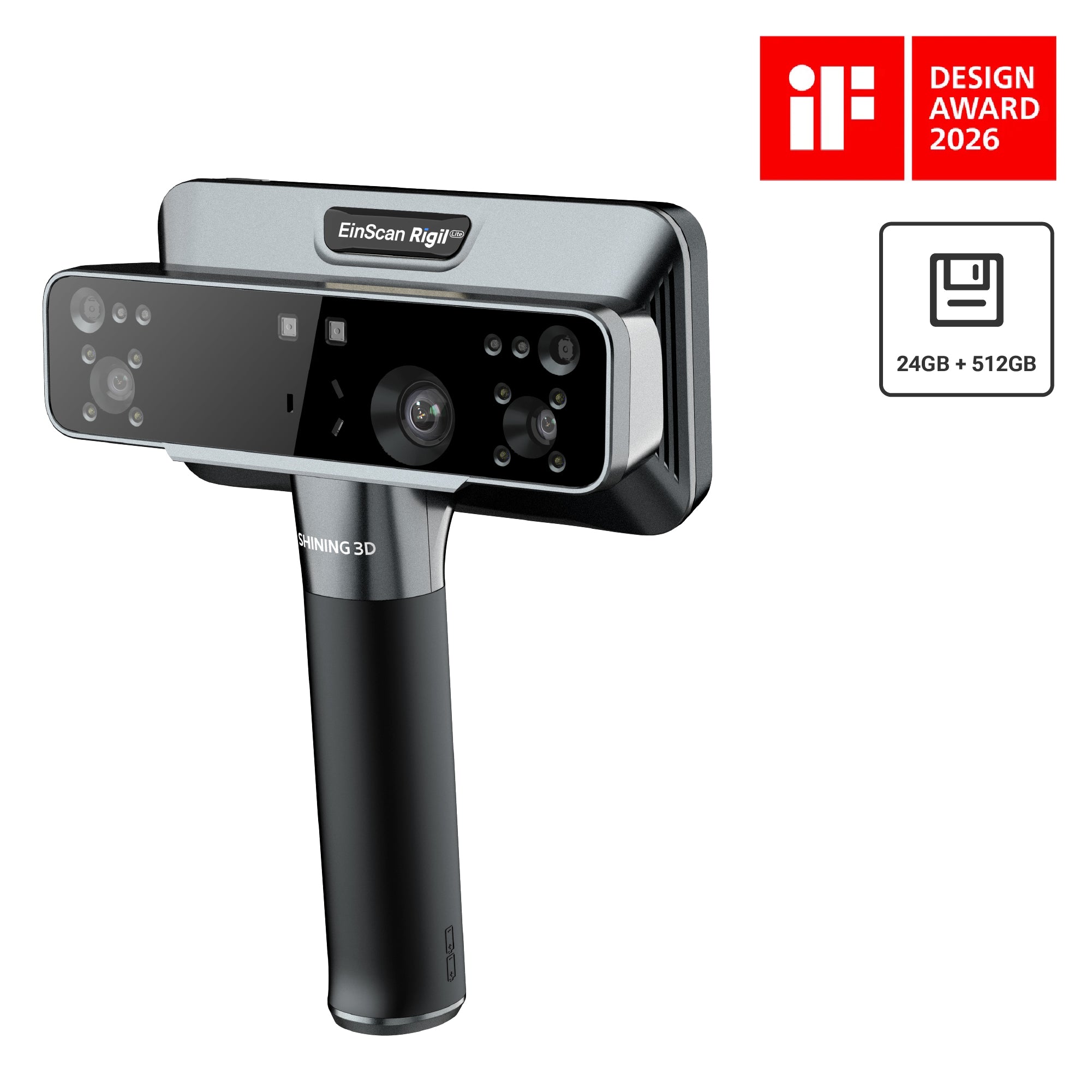

EinScan Rigil Lite | Lite to Start. Light to Create.
税抜き価格 配送料は購入手続き時に計算されます。

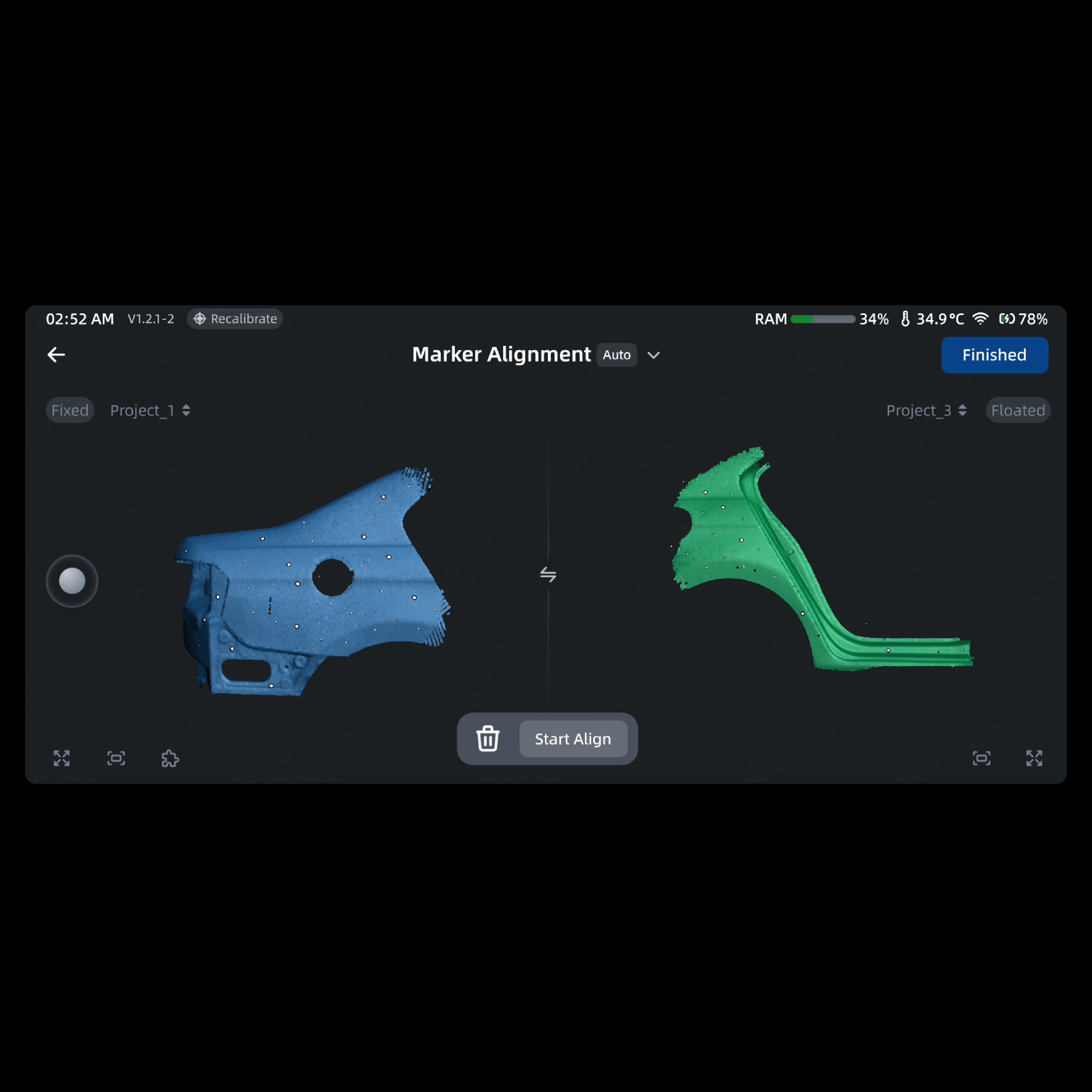

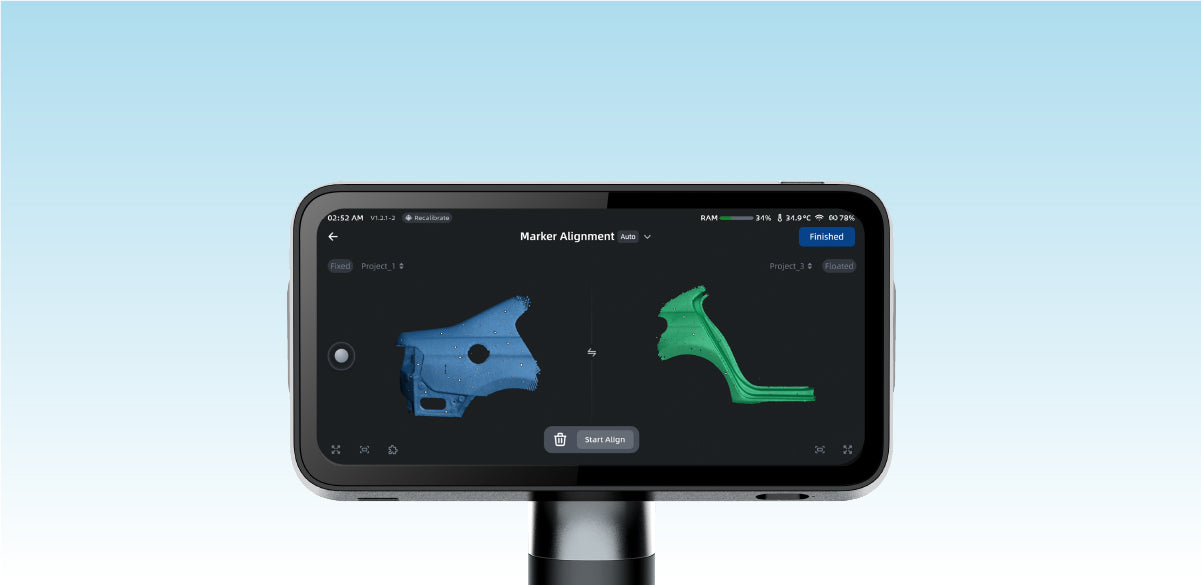

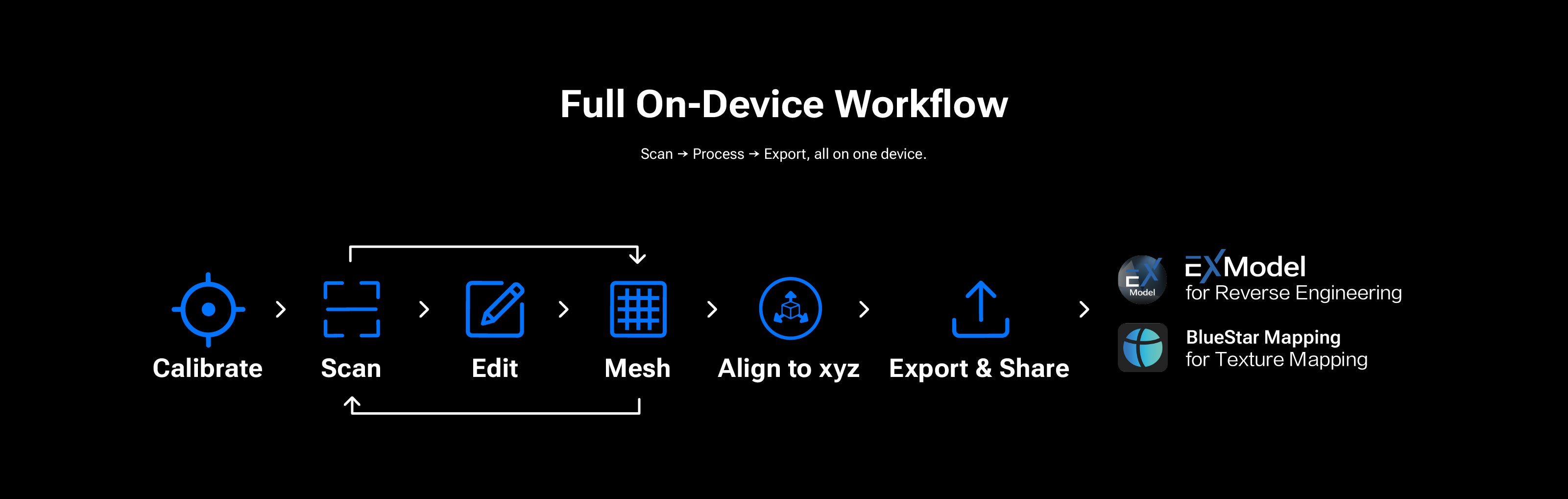

A new way to scan: Break down complex tasks into small and manageable parts and merge them back to final model.

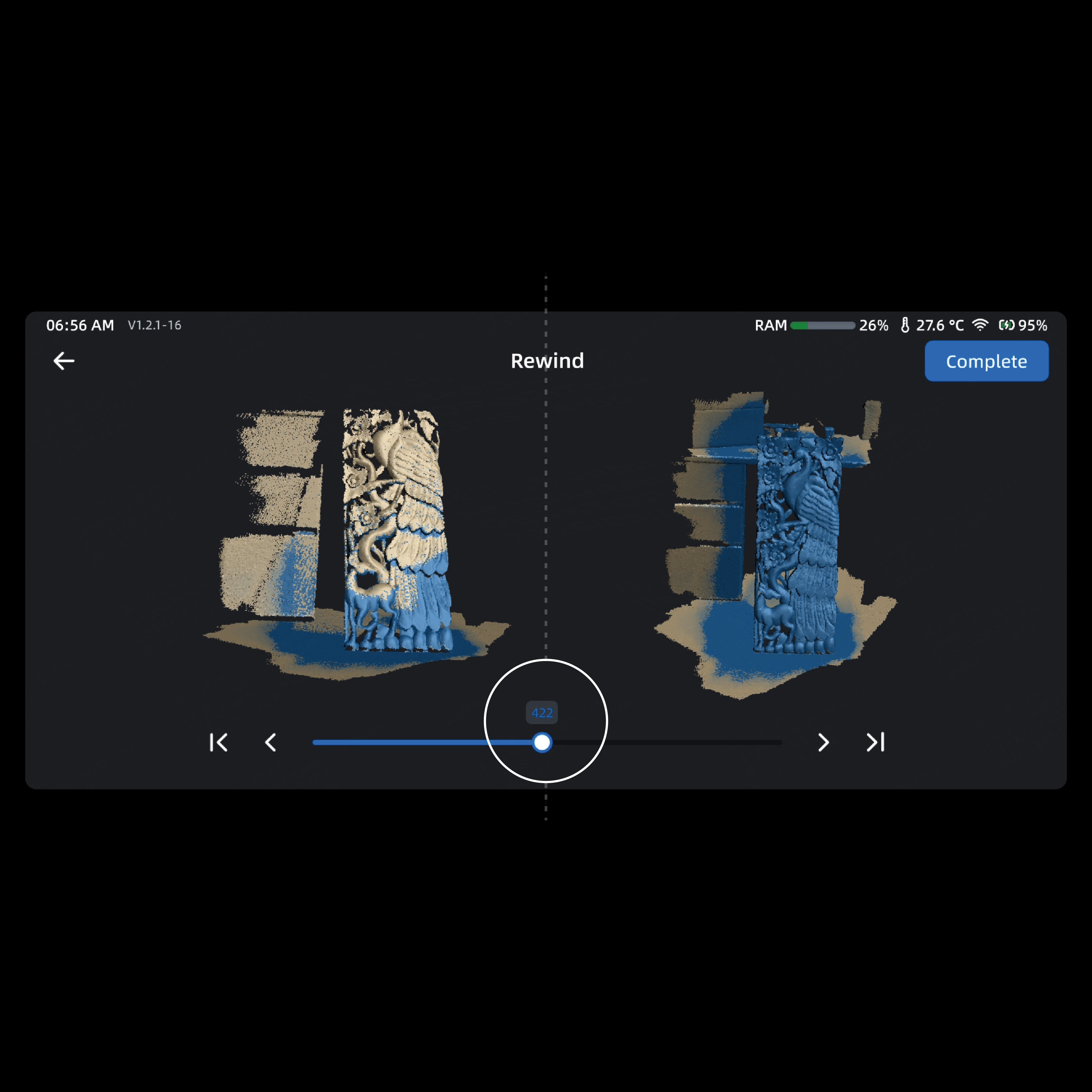

Real-time rollback to previous stage, perfect every time.

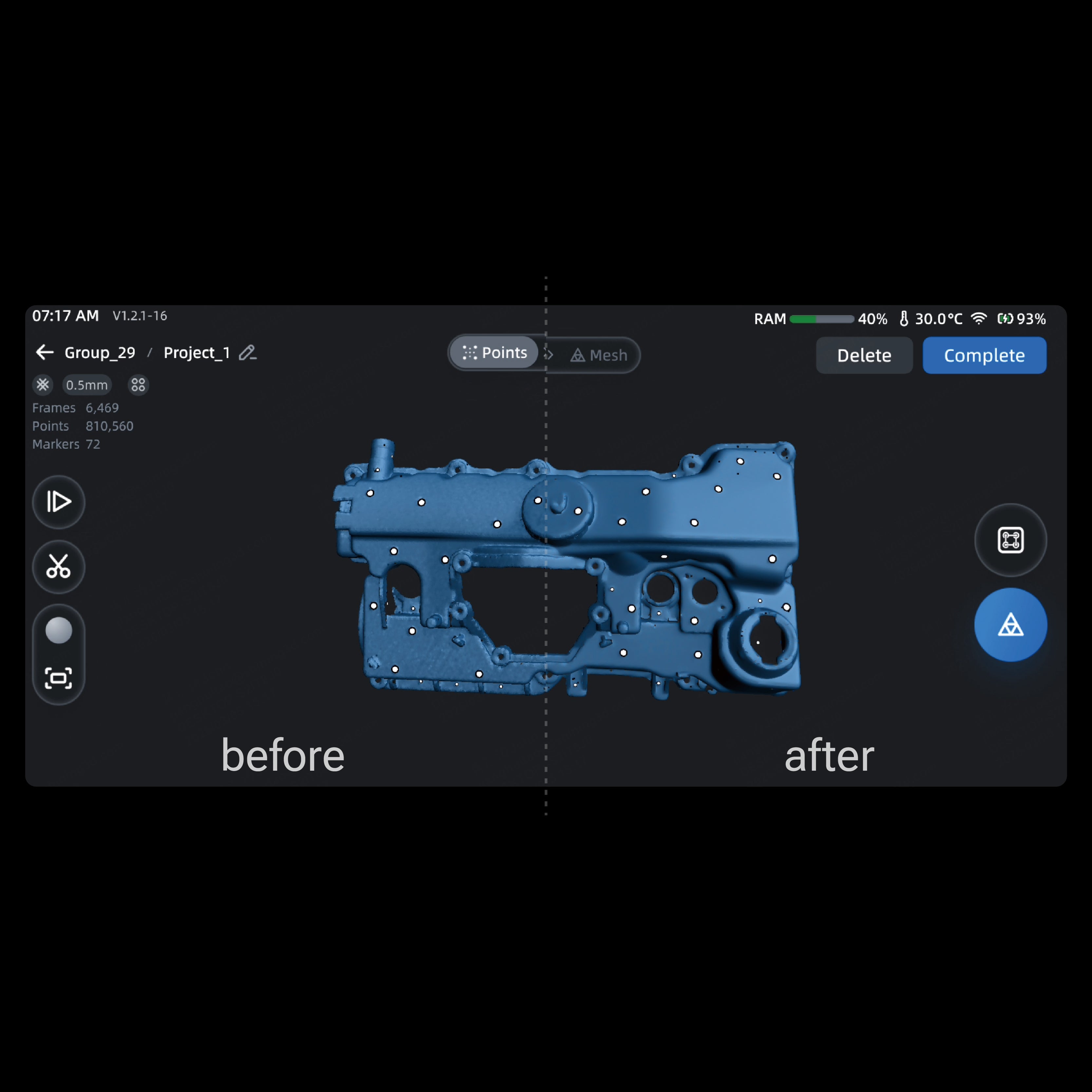

Automatically identifies and filters out the base surface you don't need.

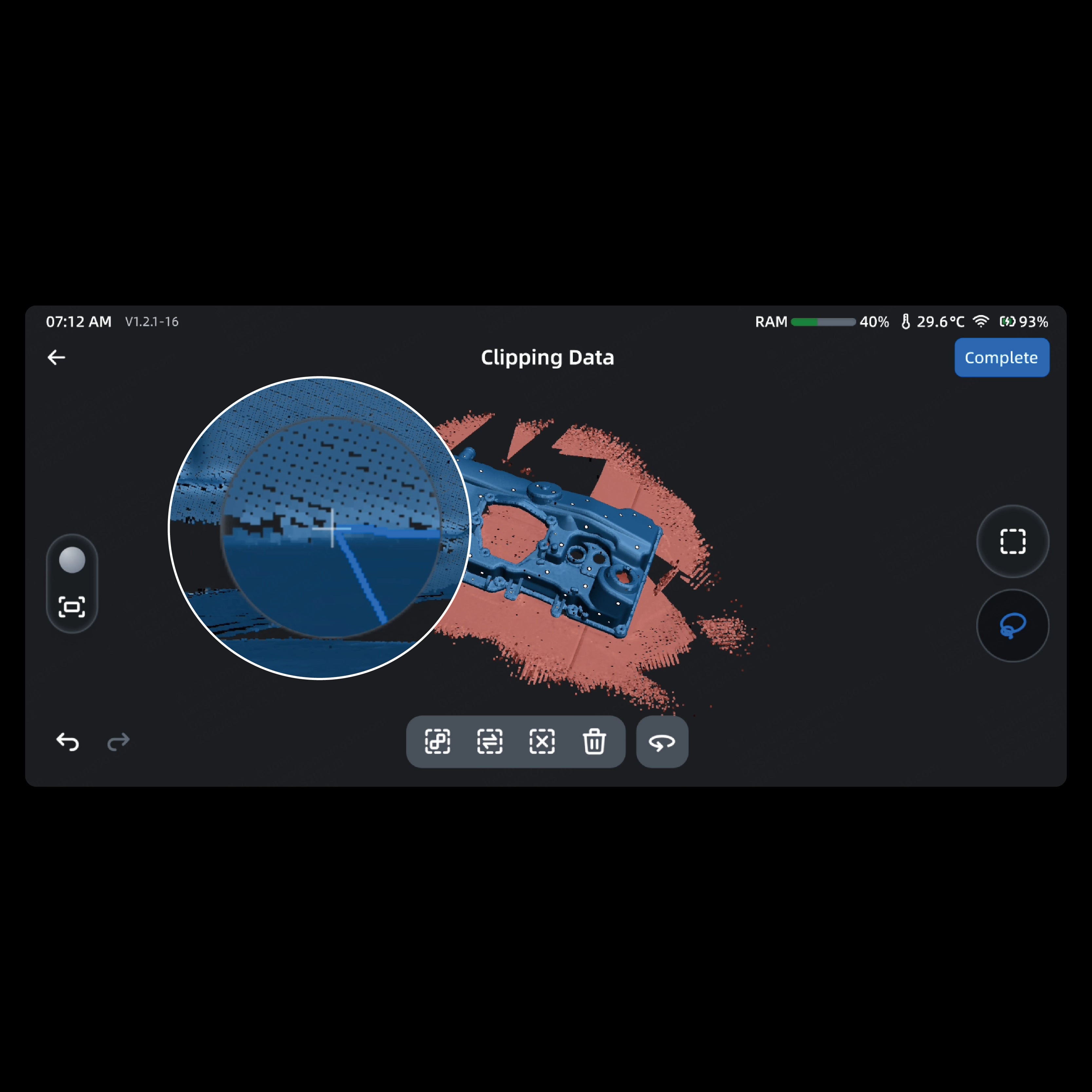

Connect domain & inverse for unnecessary points quick removing, Magnifier tool for clearer, detailed editing.

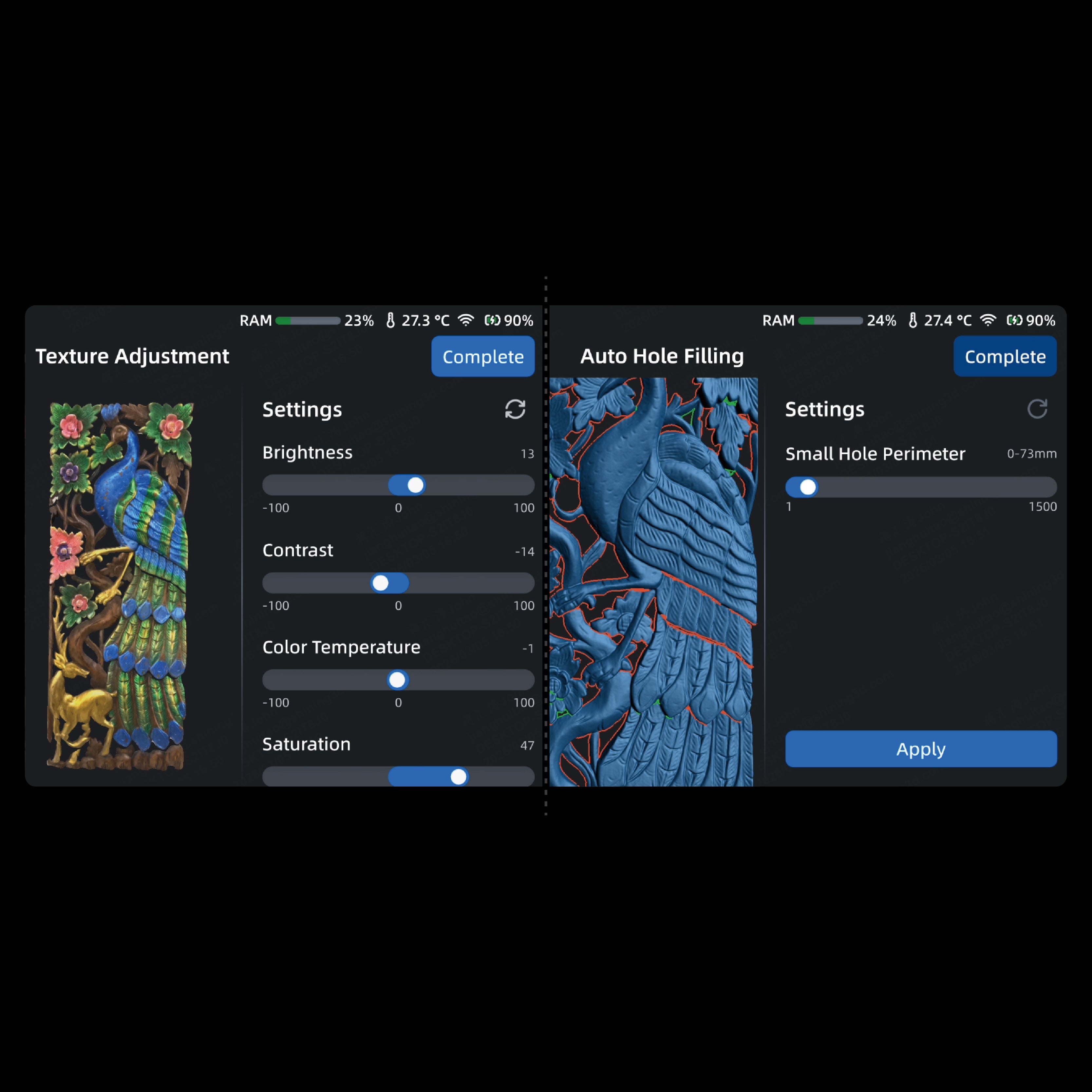

All with one-click operation for rapid model customization.

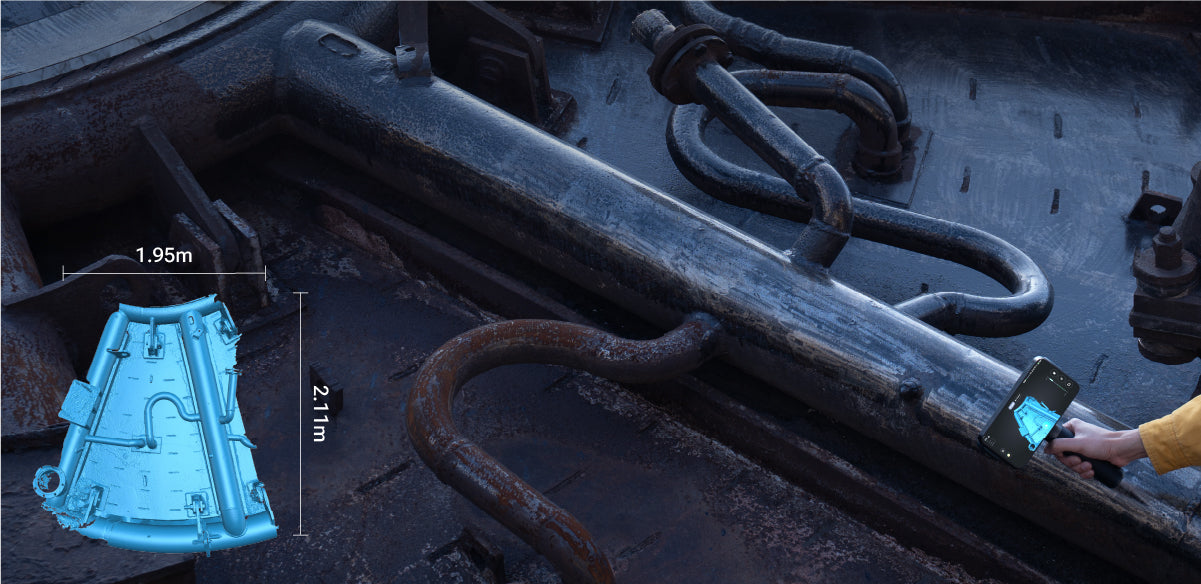

Deliver crystal-clear data quality and larger volume.
Easy to operate with virtually clear results, seamlessly move to model design.

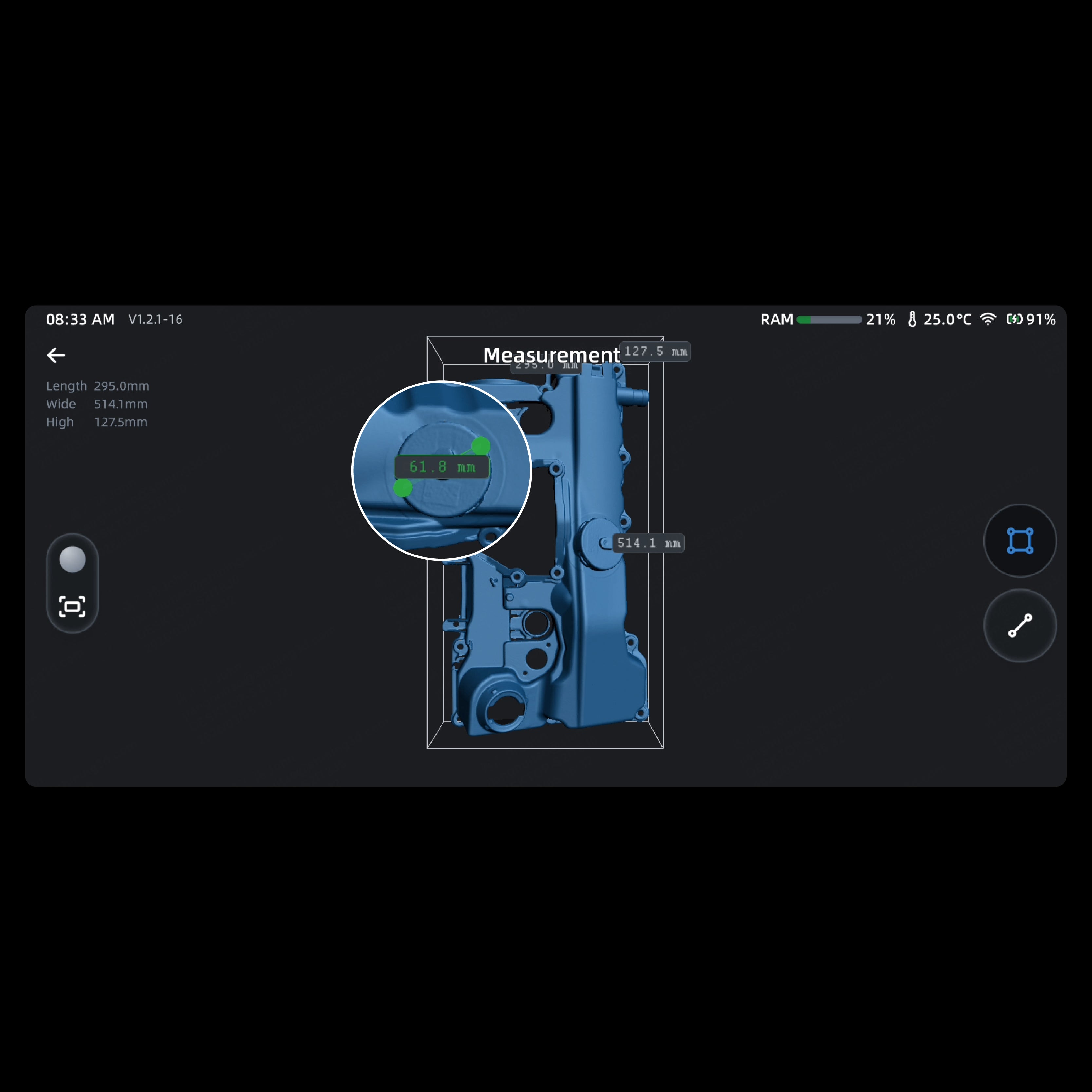

Quickly retrieve model dimensions — No traditional calipers needed.

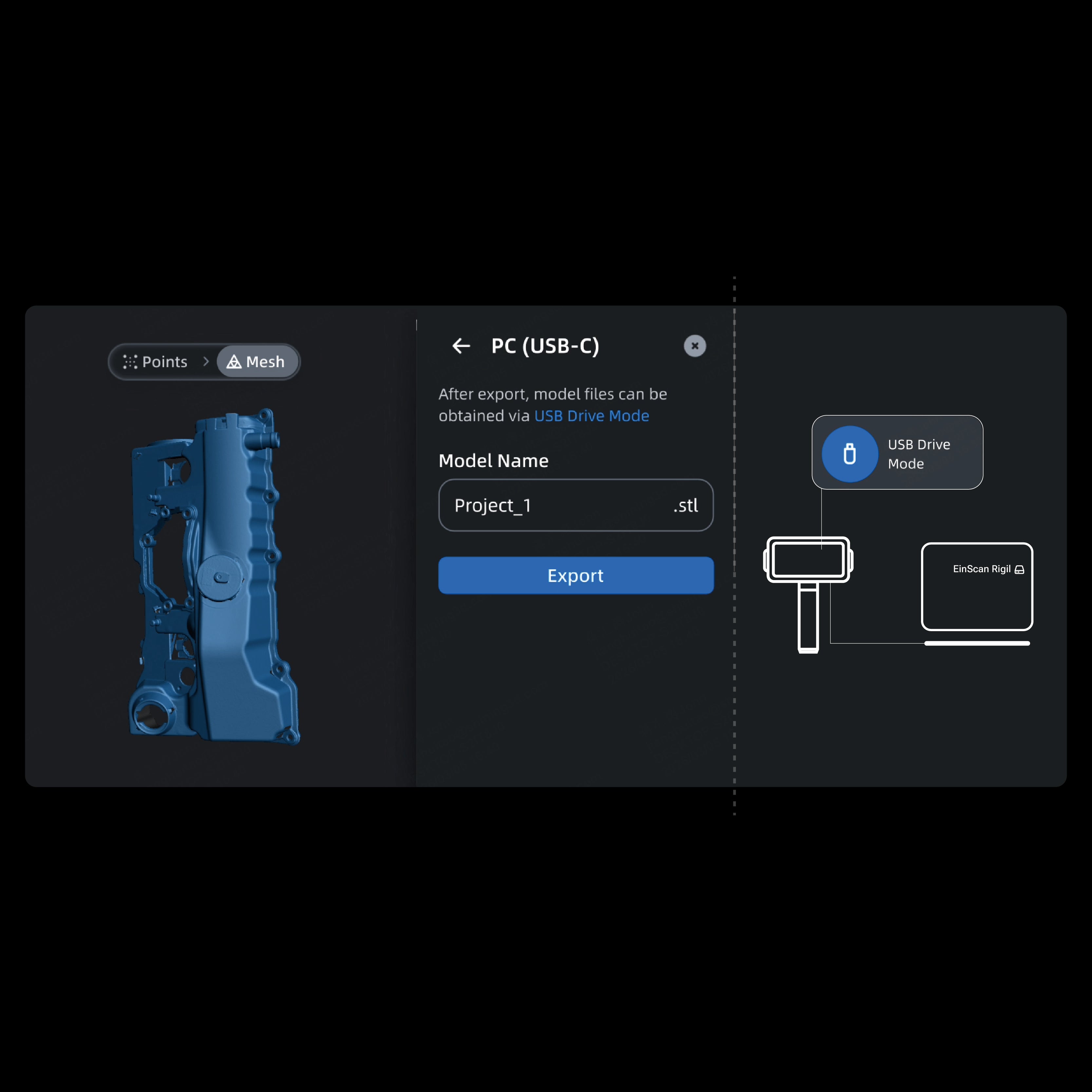

Export model as U dish, no software required.

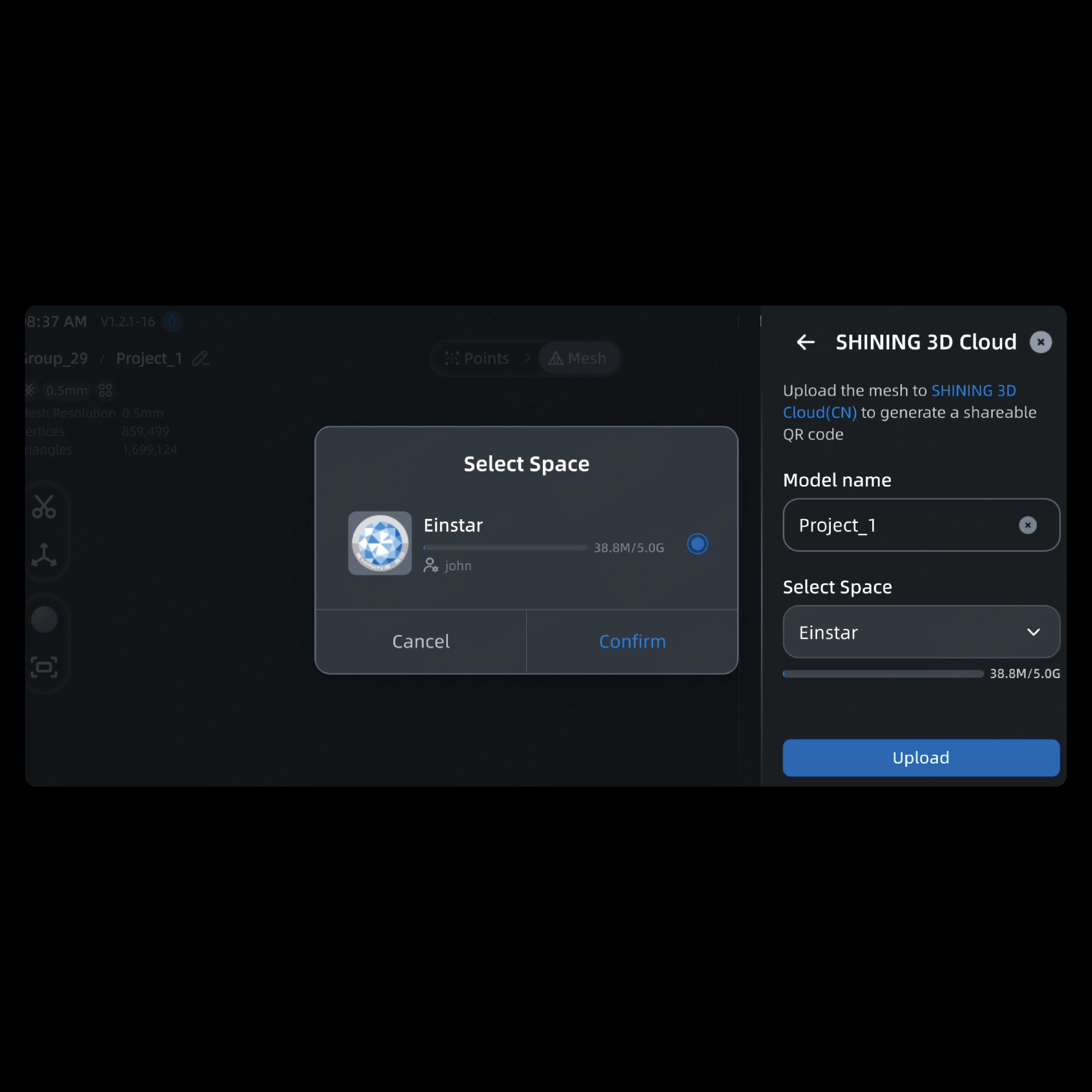

Collaborate and connect in seconds, share your achievement right now!
A new way to scan: Break down complex tasks into small and manageable parts and merge them back to final model.
Real-time rollback to previous stage, perfect every time.
Automatically identifies and filters out the base surface you don't need.
Connect domain & inverse for unnecessary points quick removing, Magnifier tool for clearer, detailed editing.
All with one-click operation for rapid model customization.
Deliver crystal-clear data quality and larger volume.
Easy to operate with virtually clear results, seamlessly move to model design.
Quickly retrieve model dimensions — No traditional calipers needed.
Export model as U dish, no software required.
Collaborate and connect in seconds, share your achievement right now!
EinScan Rigil Lite Specification
Standalone / PC- Wireless / PC-Wired（for extra computing resource）

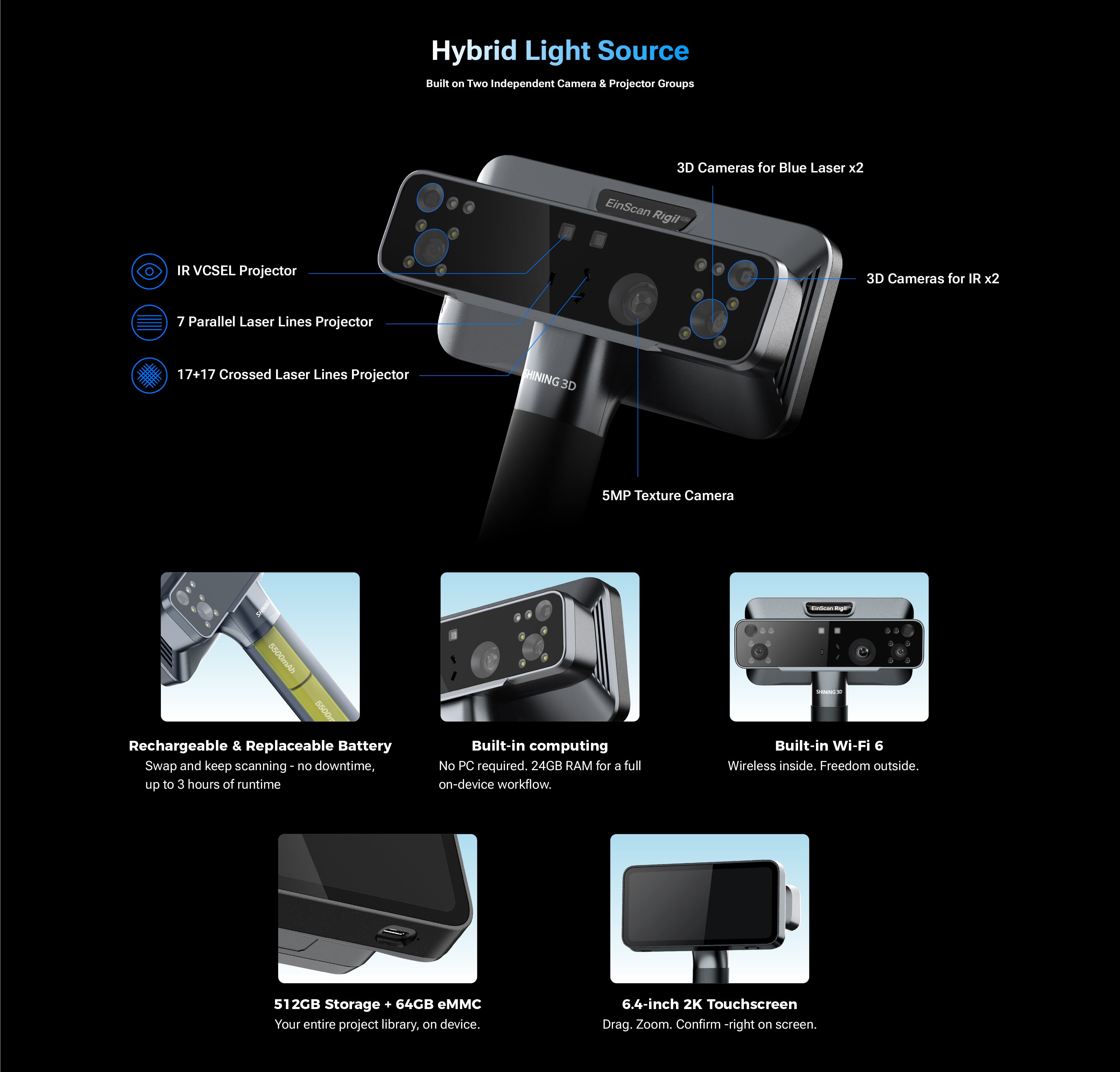

Laser HD
IR Rapid

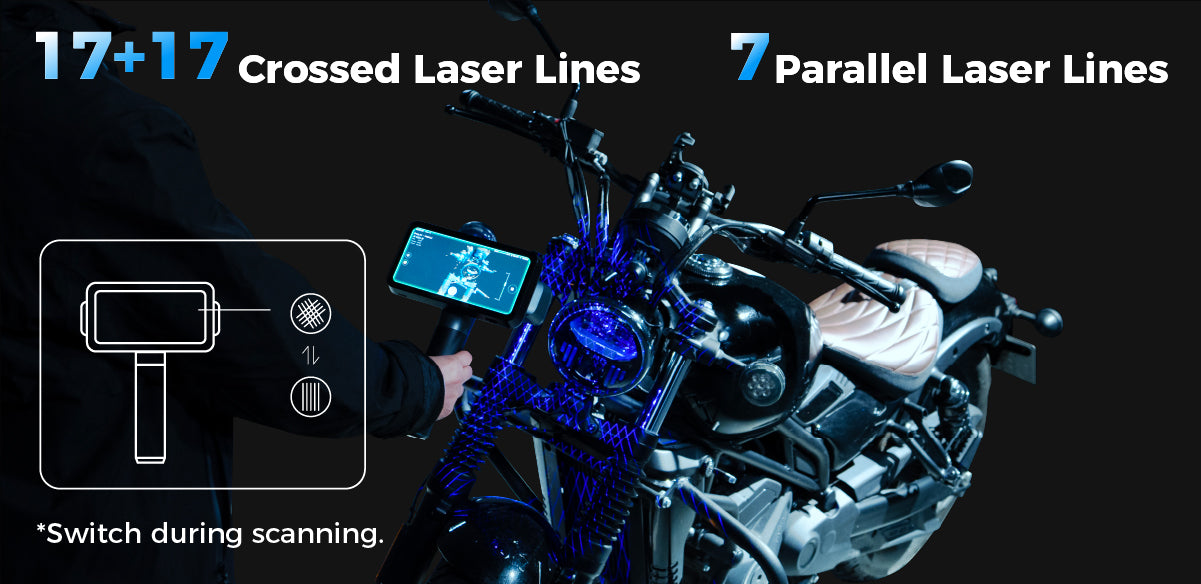

17+17 crossed blue laser lines
7 blue laser parallel lines
IR VCSEL
Laser HD：0.05 ~ 10 mm
IR Rapid：0.2 ~ 10 mm
17+17 crossed blue laser lines：2,940,000 points/s
7 blue laser parallel lines：1,620,000 points/s
IR Rapid：16,000,000 points/s
Laser HD：170 ~ 550 mm
IR Rapid：160 ~ 1500 mm

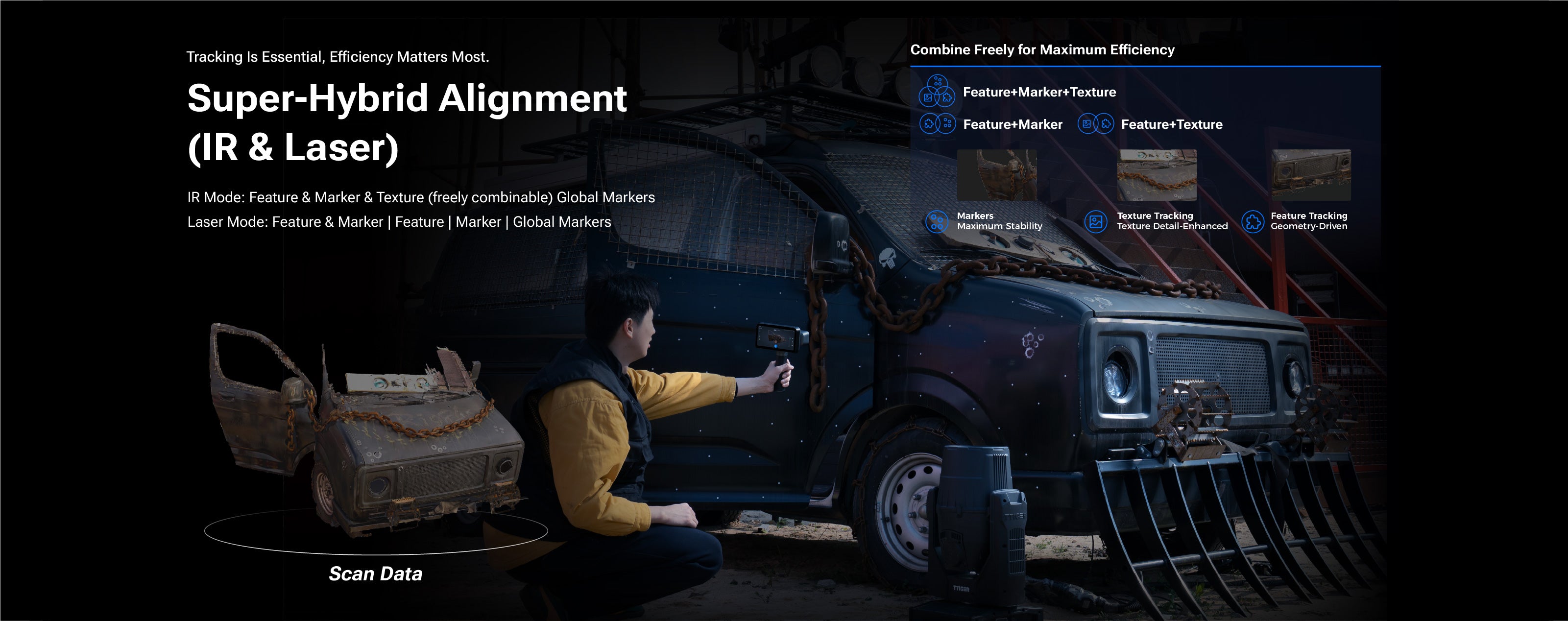

Laser HD：Global Markers / Markers / Features

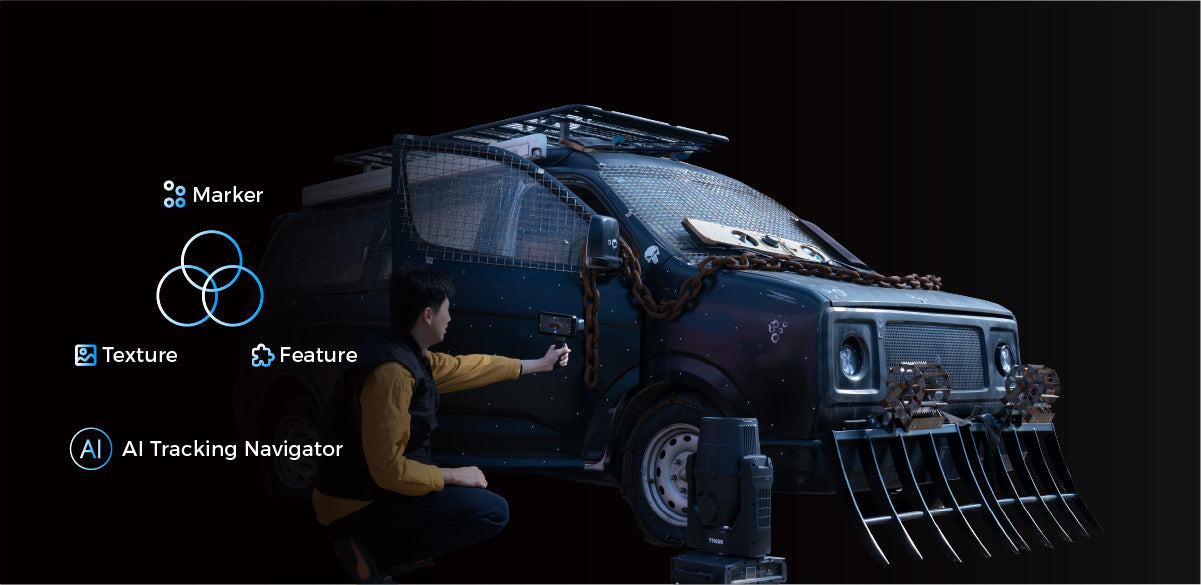

IR Rapid：Markers / Features / Texture(freely combinable) / Global Marker

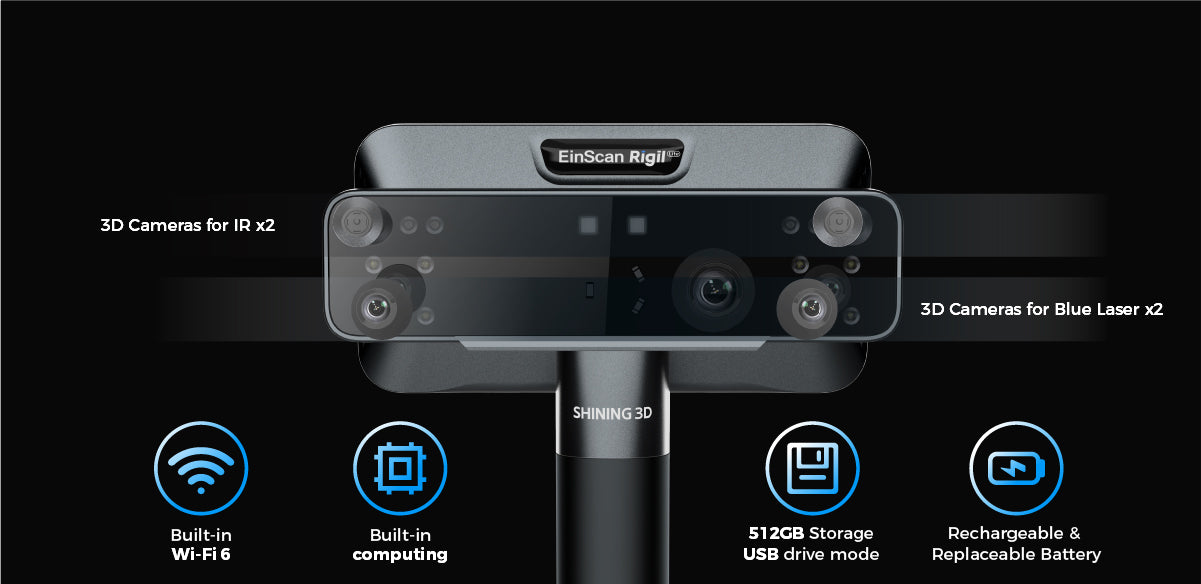

3D：2.3MP*2 1.3MP*2
Texture：5MP
Laser HD：Class II
IR Rapid：/
STL, OBJ, PLY, 3MF, ASC
CPU: 8-core, 2.4GHz;
RAM: 24GB LPDDR5;
Storage: 64GB eMMC + 512GB SSD;
6.4-inch 2K AMOLED Touchscreen
CPU: 8-core, 2.4GHz;
RAM: 32GB LPDDR5;
Storage: 64GB eMMC + 1TB SSD;
6.4-inch 2K AMOLED Touchscreen
Temperature -10℃ ~ 40℃
CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
OS: Win11 (64-bit);
Processor: 13th Gen Intel®Core™ i7-13700H or above;
Graphics card: NVIDIA GeForce RTX 3060 Laptop GPU or above;
VRAM: 8 GB or above;
RAM: 64 GB or above, DDR5 dual-channel;
Interface: USB 3.0;
USB Type-C
Battery： 5500mA*2
Support 60W-PD3.0 Charger
(H*D*W) 233 × 180 × 72.8 mm
870 g (batteries included)
FAQ
Why we choose EinScan Rigil Series?

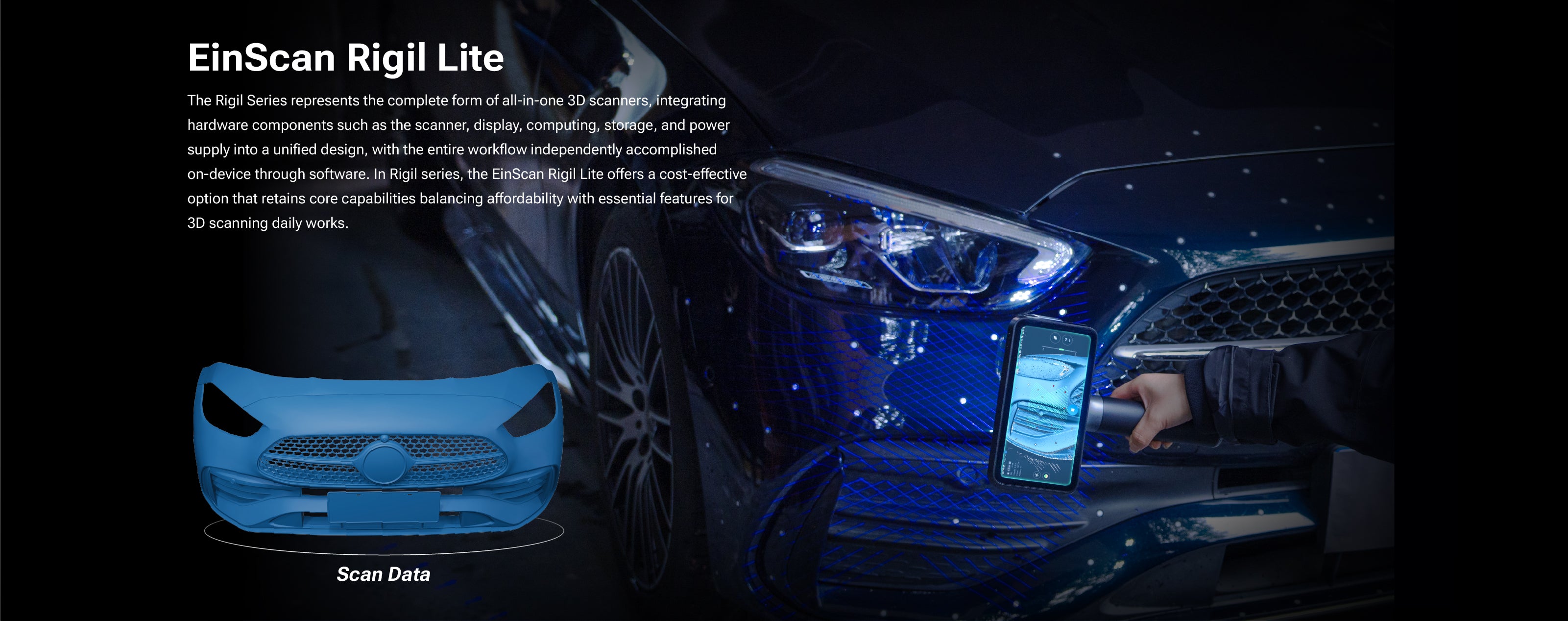

The EinScan Rigil Series represents the complete form of all-in-one 3D scanners, integrating hardware components such as the scanner, display, computing, storage, and power supply into a unified design, with the entire workflow independently accomplished on-device through software.

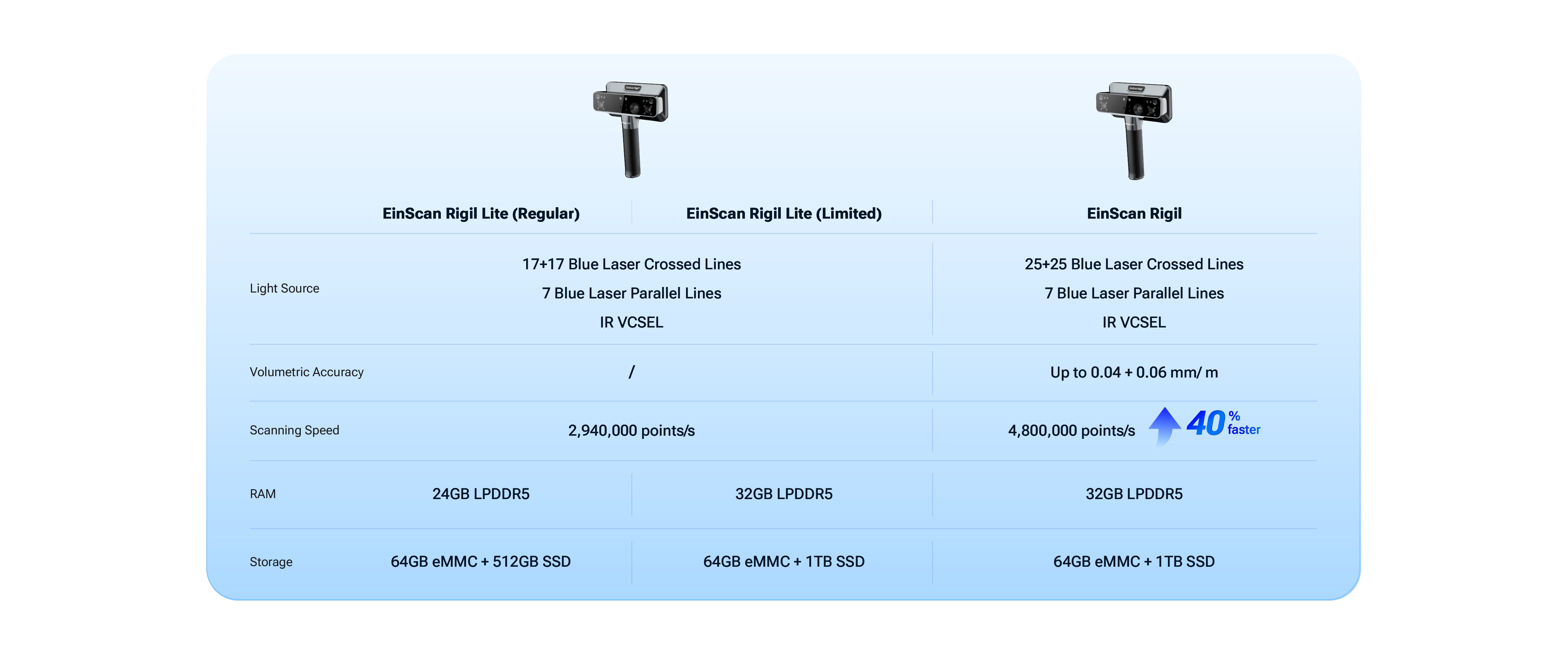

What's the difference between Rigil and Rigil lite?
Three key differences:
- Scanning efficiency, Rigil's 25+25 lines is 40% faster than Rigil Lite's 17+17 lines.
- Accuracy: Rigil has 0.04+0.06mm volumetric accuracy which is confirmed of each device, Rigil Lite accuracy is a bit lower.
- Process speed: 32GB is 25% faster than 24GB in most of cases, the larger the project, the more pronounced the speed difference. Storage space, Rigil has 1TB ROM, Rigil Lite is 512GB ROM, more space more value.
What are the three modes of this product means?
EinScan Rigil Lite has three working modes:
- Standalone Mode-all scanning and processing tasks are completed directly on the hardware, delivering exceptional portability and ease of use.
- Wireless PC Mode-Leveraging built-in Wi-Fi 6, this mode enables seamless wireless scanning and allows connection to a computer for maximum computing power, optimizing performance for complex tasks.
- Wired PC Mode-connect to PC with USB type-C cable, maintaining availability and maximum stability in complex network environments or under restricted network conditions.
Where can I buy the battery?/Can the battery be purchased separately?
Currently, the officially gifted battery is not available for separate purchase. However, you may purchase a 21700-type battery independently. Please ensure the following parameters match your device:
Voltage: 3.6 V
Capacity: 5500 mAh
Dimension: Length 75.4 ± 0.3 mm; Diameter: 21.7 ± 0.3 mm
What's the accuracy of Rigil Lite
Accuracy is a serious value, we can confirm each of device from SHINING3D EinScan series are tested under international standard 100%. However, some brands only perform misleading concept in the market, it is lack of social responsiblity.
We made a video to introduce the accuracy test system, hope you find it helpful:
